4. MEASURING VERTICAL ANGLES AND SLOPES



4.0 Introduction

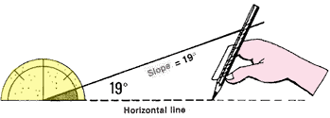

1. A vertical angle is an angle formed by two connected lines in the vertical plane*, that is, between a low point and two higher points. Since these angles are in the vertical plane, the lines that form them will usually be lines of sight. A vertical angle BAC can be formed, for example, by the line of sight AB from station A on a river bank to a higher water-pump installation, and the line of sight   AC from station A to a much higher water-storage tank.

2. Whenever a line is not horizontal, it has a slope. The slope can be uphill or downhill. Its steepness depends on the difference in height between its points.

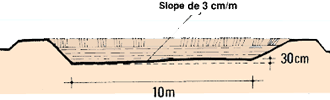

3. As you have learned (see Chapter 2), the slope of the ground affects the measurement of distances. Ground slope is also very important in the design of fish-farms, since you can use it to reduce your construction costs. You need to build bottom slopes in canals, to allow the water to move by gravity*; and in ponds, to allow good drainage. And you must build slopes in the dikes for ponds and dams (see the next manual in this series, Constructions for Freshwater Fish Culture).






   4. The slope of a line is called the gradient. It may be defined as:

  • The change in vertical distance or elevation* over a given horizontal distance, or the change in horizontal distance over a given vertical distance;
  • The vertical angle made by the sloping line and a horizontal line.







5. The slope of a line is therefore expressed in various ways:
  • as a percentage, or the number of metres of change in elevation over a horizontal distance of 100 m. This may be written in two ways, either as a percent (%) or as a decimal value, in hundredths;


  • in degrees, as the measurement of the vertical angle made by the slope and the horizontal plane*.

Remember that:

  • degrees are subdivided into 60 minutes (60'), each minute equalling 60 seconds (60");
  • a right angle equals 90, and therefore a slope is always measured between 0 (horizontal) and 90 (vertical);





  • As a ratio, showing the change in horizontal distance (x) per unit of vertical distance, or the change in vertical distance (y) per unit of horizontal distance, in one of the following ways:
    • the change in horizontal distance (x metres) per one metre of vertical distance; this can express, for example, the slope of the sides of dikes and canals (such as 2:1);
    • the change in vertical distance (x millimetres or x centimetres) per one metre of horizontal distance; this can express, for example, the lengthwise slope of a pond bottom or water pipe (such as 3 cm/m);
    • the change in horizontal distance (x units) per one unit of vertical distance. This can express, for example, the lengthwise slope of a pipeline (such as 1 in 300).




1 m change in elevation every 300 m



Converting percentage of a slope into degrees, or degrees into percentage

6. Depending on the instrument you are using to measure a slope directly, you may sometimes have to convert the percentage of the slope into degrees, or the degrees into percentage. For help with such a conversion, you should use either Table 4 or the graph given in Figure 3.


Note: from the table and the graph you can see that:

  • 1 degree is about 1.75 percent;
  • 1 percent is about 035';
  • A 45 slope = a 100 percent slope.


  TABLE 4
Conversion of slope units in degrees or percentages

From percent into degrees

Percent Degrees/min/s
0.5
017'10''
1
035'
2
108'40''
5
251'40''
10
542'40''
20
1118'36''
30
1642'
40
2148'05''
50
2633'55''
100
45


From degrees into percent
Degrees Percent Degrees Percent
0.25(15')
0.44
11
19.44
0.50(30')
0.87
12
21.26
0.75(45')
1.31
13
23.09
1
1.75
14
24.93
2
3.49
15
26.79
3
5.24
16
28.68
4
6.99
17
30.57
5
8.75
18
32.49
6
10.51
19
34.43
7
12.28
20
36.40
8
14.05
30
57.74
9
15.84
40
83.91
10
17.63
45
100

Remember: 60 min = 1 degree and 60 s = 1 min


Examples:

FIGURE 3
Graph for the rapid conversion of slope units


Measuring and calculating slopes

7. There are two groups of methods for determining slopes.


Measuring slope directly


  • You can calculate the slope: measure the ground-level difference (in metres) between two points along the steepest part of the slope (called the axis), using one of the devices described in Chapter 5. Calculate the slope, which you will usually express as a percentage (see next step).


Measuring ground-level differences to calculate slope


8. To calculate the slope, proceed as follows:
  • along the axis of the slope, measure the difference in level AC between two marked points A and B (see Chapter 5);
  • measure the horizontal distance CB between points A and B (see Chapter 2);
  • calculate the slope S in percent as equal to:

S% = 100AC CB

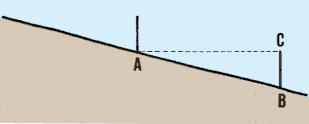

First measure the difference in level


Note: to make your calculations easier:

  • you can fix the horizontal distance CB at 100 m, which will give you S% = AC directly in metres;
  • you can fix the horizontal distance CB at 10 m instead, which will give you S% = 10 AC in metres.

Remember: you must measure the horizontal distance!

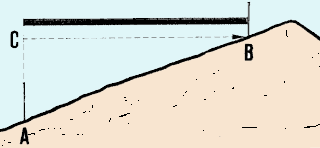

Then measure the horizontal distance

      Using slope to calculate horizontal distances

9. In Chapter 2, Sections 2.6 and 2.7, you learned that when measuring a distance AB on sloping ground, you need to correct this measurement in order to find the true horizontal distance AC, but only when the slope exceeds 5 percent (or about 3 degrees). To make these corrections, you may use either the method described below, or the method which will be described in Section 5.0, step 17. To calculate horizontal distances from distances measured over sloping ground, proceed as follows:

10. Measure the distance AB (in metres) on the ground between points A and B (see Chapter 2).

11. Measure the average ground slope S in degrees between points A and B (see this chapter, Sections 4.1 to 4.7).

Note: if the slope is measured in percent, you will have to convert it into degrees (see Table 4 or Figure 3).


Measure the ground-level distance GR174.GIF (2883 byte)


12. Enter this average slope S (in degrees) in Table 5 to obtain the value of cosine S (cos S). If the slope does not correspond exactly to any of the angle values given in the table, you will have to calculate cos S by using proportional parts (see example in Table 5).

13. Calculate the horizontal distance AC (in metres) using the formula:

AC = AB cos S


Measure the slope

Calculate the horizontal distance

AC = AB cos S

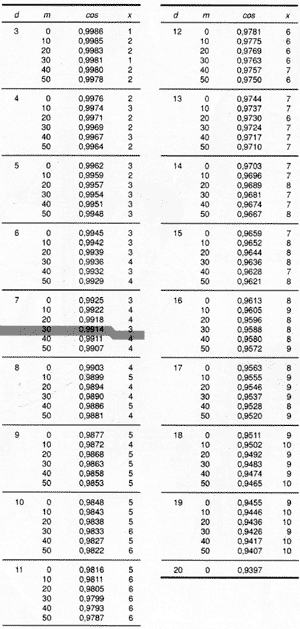

TABLE 5
Cosine values of angles (d = degrees, m = minutes, cos = cosine, x = difference)
MAIN TABLE


TABLE OF PROPORTIONAL PARTS, P

Example

To calculate intermediate cosine values using the proportional parts, for cos 738' for example, proceed as follows:

  • from the Main Table, calculate cos 730' = 0.9914;
  • obtain the difference between this value and the next, x = 3;
  • find column 3 in Table of Proportional Parts, P;
  • move down this column to line m = 8, to find P = 2.4;
  • subtract P from the last number (4) of the value read from the Main Table, 0.9914 - 0.00024 = 0.99116. This is cos 738'.

Choosing a method to use for measuring slopes

14. There are several good ways to measure slopes. The method you use will depend on several factors:

  • how accurate a result you need;
  • the equipment you have available;
  • the type of terrain on which you are measuring.

Each of the various methods is fully explained and illustrated in the following sections, except for the method to use with levelling devices (see Chapter 5). Table 6 will also help you to compare the various methods and to select the one best suited to your needs.

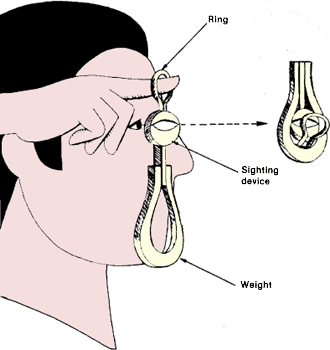

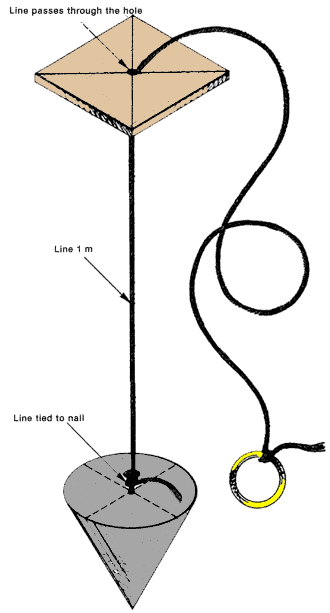

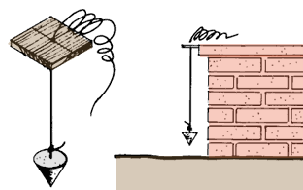

Plumb-line

Clisimeter

     TABLE 6
Vertical angle and slope measurement methods

Section1
Method 2
Accuracy
Remarks
Equipment
4.1*,4.2*
Clinometer, models 1 & 2
Low
Quick and rough estimate
for rather steep slopes
Hand-held instrument
Home-made clinometer
4.3*
Clinometer, model 3
Low to medium
To be fixed in ground
Direct reading in percent
Home-made clinometer
4.4*
Clinometer, model 4
Low to medium
To be fixed in ground
Small, easy to make
Direct reading in percent
Home-made clinometer
4.5**

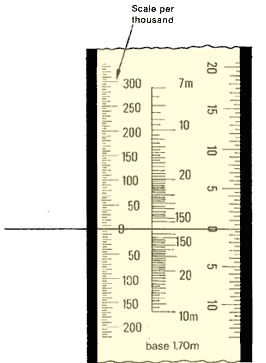

Clisimeter
Low (about 10 percent)
Quick and rough estimate
Direct reading in percent
Lyra clisimeter
4.6**

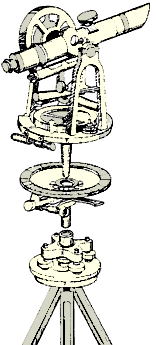

Optical clinometer
Medium to high
Quick, rather good estimate
Direct reading in degrees and percent
Optical clinometer
4.7***
Miscellaneous levelling devices
Medium to high
Requires distance measurement
Best estimates for small gradients, especially with best levels
Various, see Table 7

1 *Simple **more difficult ***most difficult.
2 In italics, equipment you can build yourself from instructions in this manual.


4.1 How to measure with the home-made clinometer, model 1

1. A clinometer is an instrument for measuring slopes or vertical angles. There are various types of clinometers, but they all include a graduated arc similar to a protractor (see Section 3.3, step 11). To use the clinometer, you hold it in your hand and read the slope against this arc. You also usually refer to a free-hanging plumb-line called the pendulum. There is a line of sight* on the top of the clinometer. You can easily make your own simple clinometer; four models are described in Sections 4.1 to 4.4.


Making the pendulum clinometer, model 1

2. Get a protractor with a 0 to 90 scale, or make one yourself as described in Section 3.3. The protractor should be fairly large (for example, about 20 to 25 cm diameter) to provide reasonable accuracy.

Note: if you use Figure 2 to make your protractor, you can easily draw a larger 0 to 90 protractor. To do this, get a piece of string and tie a pencil to one end. Measure 20 to 25 cm from the pencil along the string. Hold the string at this point on the centre-point A of the protractor in Figure 2. With the string stretched tightly, draw an arc with the pencil above the rounded edge of Figure 2. Then add graduations on your new protractor by projecting lines from the graduations in Figure 2. Glue the protractor to a piece of thin wooden board or plywood and cut carefully along its outline.


Glue the protractor to a wooden backing and cut it out GR179b.GIF (7193 byte)

Prolong the graduations from the protractor GR179a.GIF (7863 byte)

Draw a larger arc with pencil and string

3. Attach a plumb-line (see Section 4.8, step 2) to a small nail driven into the centre-point A of the protractor. Make the plumb-line with a thin piece of string about 35 to 40 cm long and a small weight, such as a heavy nut or a small stone.   4. Glue a 30-cm sighting device along the 90 side of the protractor. To make the sighting device, get a soda straw or a narrow tube; or get a thin length of wood and attach two pins along it in a straight line.



   Adjusting your home-made clinometer

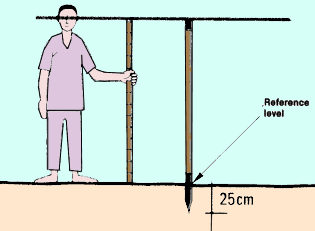

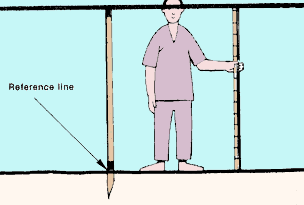

5. Measure the vertical distance from the level of your eyes to the ground, then measure the same vertical distance on a wall and mark it clearly. You will also need to mark this vertical distance clearly on a pole or staff, which you will use for sighting.

Make a mark at your eye level

Mark the reference level on the pole

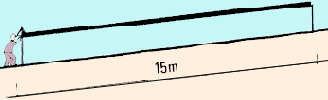

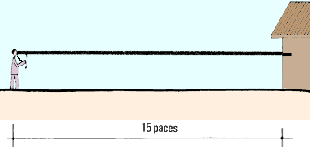

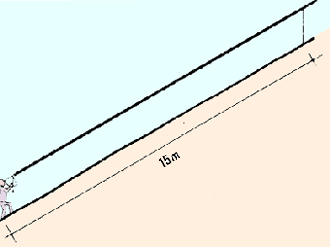

6. Stand on horizontal ground about 15 paces in front of the mark, and aim at it through the sighting device on your clinometer.   7. Check that the plumb-line string indicates 0. If it does not, adjust the small nail holding the plumb-line. When the string indicates 0, your clinometer is ready to use.



Check for accuracy by sighting at the mark you have made



Using your clinometer to measure a slope

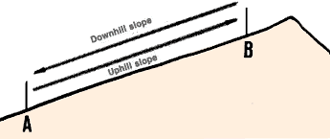

8. Sighting either uphill or downhill with the clinometer, you can measure a slope by moving the protractor around.

9. Take a position with the clinometer. Make sure to stand up straight so you do not change your eye level. Sight at a point. This point should be:



Make sure point A is at the top,
whether you are sighting uphill or downhill




10. With the clinometer in sighting position, press the plumb-.line with your finger against the bottom scale. Be careful not to move the plumb-line from its vertical position. Read the scale at the point where the plumb-line intersects the degree graduation. This reading is the slope, in degrees.

Note: you can convert your degree measurement into a percentage (see Section 4.0).

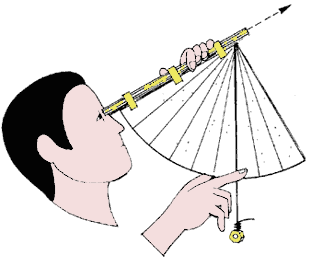

Hold the plumb-line in place with your finger  GR184.GIF (9187 byte)


4.2 How to measure with the home-made clinometer, model 2

1. You can make another type of clinometer from wood or metal. This model also has a plumb-line, but its reference scale gives you the slope in percent.


Making the pendulum clinometer, model 2

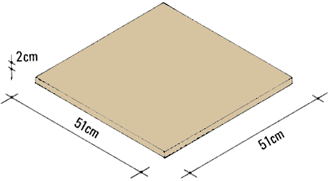

2. Cut a 51 x 51 cm square board from a piece of wood, or build one from strips of wood or metal.

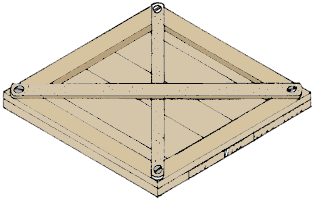

Reinforce the board if necessary

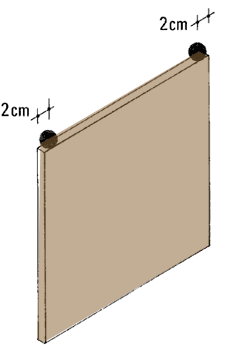

3. Provide a sighting line* along the upper edge of the square.

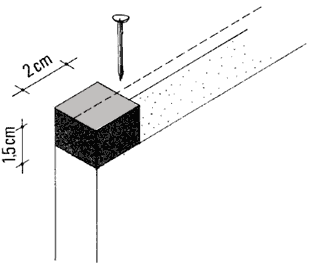

A block of wood helps you place the nails correctly

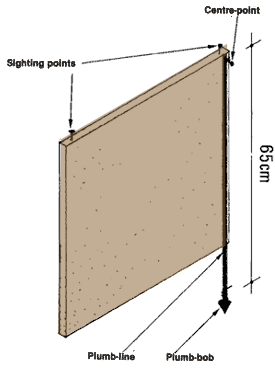

4. Provide a centre-point from which to hang a plumb-line. Put a mark on the board 1 cm down from the top edge and 1 cm in from the sighting point which is furthest from your eye. If the board is wooden, drive a nail into this mark; if it is metal, weld a small nail to the mark, or drill a hole through it.

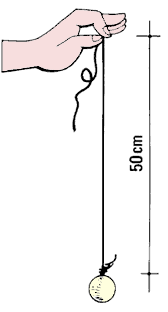

5. Make a plumb-line about 65 cm long, using a piece of thin string and a weight. A plumb-bob (a small lead weight) will make the best weight for the plumb-line but, if you do not have one, you can use any object which has its weight evenly distributed from a single point. A heavy nut or washer, or a wooden disk with a hole in the centre, will work.


6. Attach the plumb-line to the hole or nail at the centre-point of the board.

7. Loosely attach a ruler graduated in centimetres along the bottom edge of the board; use large clips, or tie the ruler on with string. Position the ruler so that its zero graduation is directly under the centre-point. Make sure that the distance between the centre-point of the plumb-line and the zero mark on the bottom edge of the ruler is 50 cm.



Adjusting your clinometer

8. Aim the board at a mark which you have aligned at eye level. Standing straight and looking along the board's upper edge, align the two sighting points with this mark. Your sighting line* should now be horizontal and your plumb-line should be vertical.


9. Put your thumb on the plumb-line to hold it against the ruler at the bottom of the board, and check to see if the line is at zero. If it is not, adjust the position of the ruler so that the zero graduation and the plumb-line fall exactly in line.

10. Check to see that your clinometer is correctly aligned by sighting again. When it is, glue or nail the ruler firmly in place. Your clinometer is now ready to use.



Using the clinometer to measure a slope

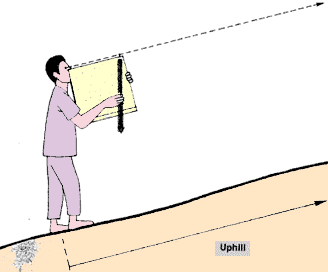

11. You can measure both uphill and downhill slopes with your clinometer in the following ways:


  • To measure uphill slopes, the plumb-line should be at the edge of the board furthest from your eye when you are sighting;

  • To measure downhill slopes, the plumb-line should be at the edge of the board nearest to your eye when you are sighting.

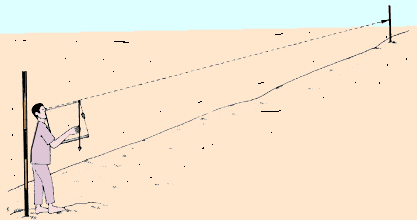

12. Place a pole or a staff clearly marked at eye level (see Section 4.1, step 5) on a point you can easily see, usually 15 to 20 m away.

13. Aim the clinometer at this mark and, when the plumb-line has stopped swinging, press it with your finger to the ruler at the bottom. Be careful not to move the plumb-line from its vertical position. Then, read the graduation (in centimetres) at this point.

14. Since every centimetre on the ruler equals 2 percent of slope, calculate the slope as a percentage by multiplying the number of centimetres you read on the graduation by 2.

Example

If you read 2.5 cm on the ruler, the slope is found as:

2.5 cm x 2 = 5%



4.3 How to measure with the home-made clinometer, model 3

1. The third model of clinometer is a little more complicated to make, but it is more accurate. It is also easier to use if you are measuring on ground that is soft enough for you to drive in the supporting staff.

Making the clinometer, model 3

2. To make the supporting staff, get a straight stick or a piece of wood about 2 m long. Shape one of its ends into a point, so that you can easily drive it into the ground. About 25 cm from the pointed end, mark a line to show how deep you will drive the staff in.



3. Get three pieces of wood exactly the same, 40 cm long, 4 to 5 cm wide, and about 1 cm thick. Secure them tightly together with nails or screws to form a triangle with three equal sides.

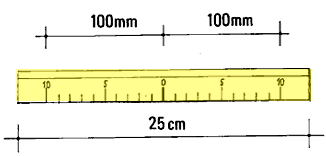

4. Prepare a ruler graduated in millimetres. Get a piece of wood about 25 cm long, 4 cm wide and 0.25 cm thick. Mark the centre with 0, then mark graduations from this centre-point up to 100 mm on either side.


5. Loosely attach this ruler to one of the triangle's sides with string or clips.


Tie the ruler to the triangle with string


6. On the same side of the triangle, make a sighting device. Drive two nails vertically into the side near each of its ends. Make sure the nails are at equal heights and on the line.



7. Drill a small hole exactly at the centre of the triangle's summit, opposite the zero point of the ruler.

8. Attach the triangle near the top of the supporting staff with a nail; make sure that the triangle remains free to swing around this axis.

9. Prepare a plumb-line about 40 cm long (see Section 4.2). Attach it to the nail at the centre of the triangle's summit.


Nail the triangle so it swings freely

Adjusting the clinometer

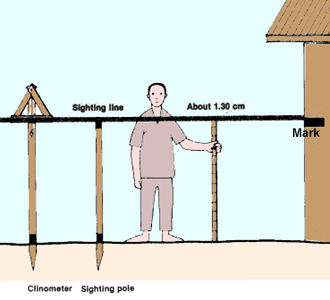

10. Drive the supporting staff vertically into horizontal ground until you reach the reference* level you marked above its pointed end.

11. Measure the vertical distance between the ground and the sighting line* of the clinometer exactly. This distance should be about 130 cm. Prepare a pole or staff that shows this height (see Section 4.1, step 5).

Note: the height of the sighting line for this clinometer may be different from your eye level.

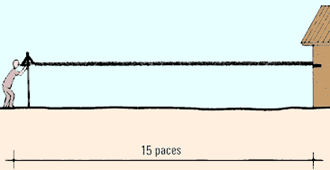

12. About 15 paces away, make a mark on a wall set at the same height you just measured. Aim with the sighting line at this mark.
Sight at the mark

13. Adjust the position of the ruler so that its 0-graduation lines up exactly with the plumb-line. Check again for sighting-line accuracy and adjust the 0-graduation if you need to, then glue or nail the ruler firmly in position on the triangle. The clinometer is now ready to use.   14. Exactly measure the distance (in centimetres) between the point at which the plumb-line is attached and the point where the sighting line intersects the plumb-line. This distance should be about 32 cm, and is the standard distance D of your clinometer. Be sure to measure D precisely.

Adjust the ruler so the plumb-line is at zero

Measure the distance D from the nail to the sighting line

Using your clinometer to measure a slope

15. You can measure either uphill or downhill slopes by reading the appropriate one of the two scales.

16. Place a pole or staff clearly marked at the sighting-line level (see step 11) on a point B of the slope you are measuring, about 15-20 m away.

  17. At point A, drive your clinometer support vertically into the ground, down to the reference level. With the sighting line, aim at the mark on the pole or staff; to do this, slowly swing the triangle around the nail at its top until you sight the marked level.

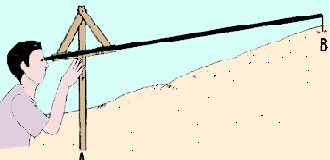

Swing the triangle around until you sight the top
of the pole


18. When the sighting line is level with this mark, press the plumb-line with your finger against the ruler. Be careful not to move the plumb-line from its vertical position.   19. Read the graduation N (in millimetres) on the ruler at the point where the plumb-line intersects the sighting line.

Hold the plumb-line in place


20. If the standard distance of the clinometer (see step 14) is D (in centimetres), calculate the ground slope S% as:

S% = (10 x N) D

Example

If D = 32 cm and you read a graduation of 4.8 cm = 48 mm on your clinometer, the slope is equal to:

(10 x 48) 32 = 15%

4.4 How to measure with the home-made clinometer, model 4

1. The fourth clinometer model is similar in principle to the preceding one, but it has several improvements: it is much smaller in size; it is easier to make; and it provides a direct reading of the slope, so that you do not need to make any calculations. The model 4 clinometer may also be used to measure vertical angles (see this Section, step 17).


Making the clinometer, model 4

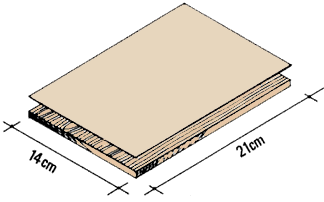

2. Get a small piece of thin wooden board, about 14 x 21 cm. The best material would be plywood.

3. On this board, glue a sheet of squareruled millimetric paper so that its printed lines are parallel to the sides of the board.

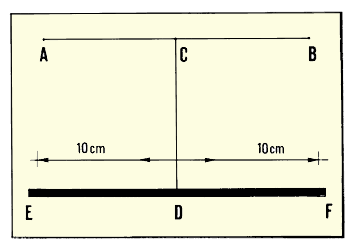

4. Draw a line AB, parallel to the larger edge of the board and about 1.5 cm from it.




5. Find the centre of line AB and mark it C. From this point lay out perpendicular CD, which should measure 10 cm. You may adapt one of the methods from Section 3.6, or use the lines on the paper to guide you.   6. Through point D, raise perpendicular* EF, which is parallel* to AB.



7. Taking point D as zero, measure 10 cm to the left and 10 cm to the right of point D, along EF. Divide these two distances into millimetres and mark the main graduations. Once again, the lines on the paper will help you.


Note: instead of drawing the above lines yourself, you can use Figure 4. Make an enlarged a copy of it and cut it out. Glue this figure to the wooden board, with line AB parallel to the board's longer edge.

  FIGURE 4


8. Make a plumb-line 17 cm long, using very thin thread (such as a nylon fishing line) and a small weight. Drive in a small nail exactly at point C on the board, and hang the plumb-line from it. Slightly below the nail, at K on line CD, drill a hole that a wood-screw will pass through.

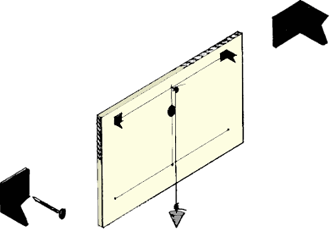

9. Make a sighting line* along line AB. To do this, you can drive thin nails in at points A and B. Or, get two metal strips (you can cut them from a tin) and cut small, v-shaped notches out of one end of each strip. Then, bend the other end so that the strips can be attached perpendicular to the board. Screw them to points A and B, making sure that the v-notches (your sighting guides) are directly over the two marked points A and B. Align these v-notches with line AB.

Mark sighting line AB with nails...

... or with v-notch sighting guides

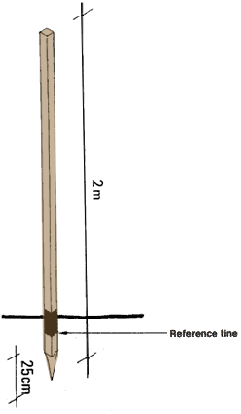

10. Get a wooden staff 2 m long to use as the support, and make a point on the bottom end. Loosely attach the clinometer board near the top of this staff with a screw through the hole K you made on line CD in step 8. Tighten the screw so that the board can be turned around. Check that the head of the screw lies slightly below the surface of the board so it will not disturb the plumb-line.



Attach the board so it can turn easily

Make sure the plumb-line swings freely

11. Clearly mark a reference line* about 25 cm above the pointed end of the supporting staff, showing the depth to which you need to drive it into the ground at each station. Measure the distance between this reference line and the sighting line AB.

12. Then prepare a pole or staff with a reference line and a sighting line at exactly the same height as line AB. This will be your sighting pole.



Using the clinometer for measuring a slope in percent

13. You can measure either uphill or downhill slopes by reading the appropriate one of the two scales.

14. Place the sighting pole you made in step 12 on point Y of the slope you are measuring, about 15-20 m away. Drive it in vertically up to the reference line.



15. At point X, drive your clinometer support vertically into the ground up to the reference line. With the sighting line, aim at the mark on the sighting pole. Rotate the board around its screw until you sight the marked level.

Turn the board until you sight the top of the pole

16. Where the plumb-line crosses line EF, read the graduation (in millimetres). This gives you the slope in percent.

Note: check carefully to see that the plumb-line hangs freely from its support. The board should rotate without disturbing the vertical position of the plumb-line.

Using the clinometer to measure a vertical angle in degrees

17. If you must measure a vertical angle in degrees instead of a slope, you may use the model 4 clinometer (as described above). The only difference in this case is that you use the curved scale GH (in Figure 4) rather than the bottom scale.



    4.5 How to use the clisimeter

1. The clisimeter is a simple instrument for measuring horizontal distances, as explained in Section 2.7. It can also be used to measure a slope or a vertical angle, but it can only give a rough estimate of these, accurate to within 10 percent.

The lyra clisimeter is a commonly used model. It is made up of a sighting device, an attached ring, and a weight, shaped like a pear, which keeps the clisimeter in a vertical position when hung from its ring. The instrument folds neatly into the weight for transport.



2. When you look through the sighting device, you see three scales. As described before (see Section 2.7, step 3), the central scale is used to measure horizontal distances. The other two scales are used to measure vertical angles and slopes. You will use the left scale, which is graduated in per thousand (%o) or tenths of percent (%):

The scale inside the clisimeter-use the left scale to measure slopes


100 on the scale %o = 10%
or
5% = 50 on the scale %o

Examples

 15 per thousand equals   15 10 =   1.5 percent
 35 per thousand equals   35 10 =   3.5 percent
150 per thousand equals 150 10 = 15    percent
   7 per thousand equals     7 10 =   0.7 percent


Note: the right scale is graduated in grades (G), a unit of measurement which you have not used yet. Full circle is divided into 400 grades. Up to now we have been using degrees. There are 360 degrees in a full circle!

3. The left scale is graduated from zero in two opposing directions:

Using the clisimeter to measure a slope

You can use the clisimeter by yourself or with an assistant:

4. If you are working alone, you need a pointed stake clearly marked at two levels: the reference level above the pointed bottom, showing the depth to which you will drive the stake into the soil; and the eye level, which is the vertical measurement from the reference level to your eye level. It is best to have the eye level at the top of the stake. (This stake is like the one you learned to make in Section 4.1, step 5.)

Make a sighting pole marked at eye level

Sight at the marked pole

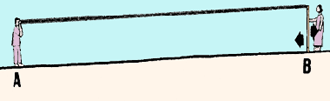

5. If you have an assistant, you can also use a simple rod marked at eye level, but it will be faster to use your assistant instead of this rod. To do this, determine the point on your assistant which is at the same level as your own eyes and sight at that point instead.

Find your eye level on your assistant

Sight at the eye level you have chosen

6. Place the marked stake at point B on the slope you need to measure, or send your assistant to point B, either with or without marked rod.

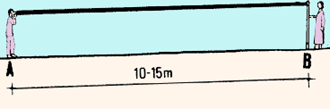

7. Taking a position at point A about 10 to 15 m away, hang the clisimeter vertically from your left forefinger and bring the sighting device up to your left eye. Make sure to stand up straight so you do not change your eye level.


Sight at the point

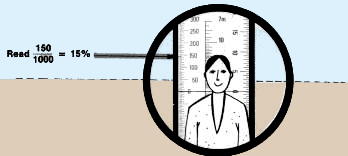

8. While looking at the marked level with your right eye, read the graduation on the left scale of the sighting device. This is the slope you are measuring, expressed in per thousand.


Note: to make reading the graduation easier, move your head slightly from right to left. The graduation will seem to extend out of the instrument into the landscape. Then, read the graduation corresponding to the marked level.


Read the left scale

Using the clisimeter to lay out a slope

9. You will need an assistant for this method. Sight with the graduation on the left scale (which corresponds to the slope) at the marked level (on a rod such as the one described in Section 4.1, step 5, for example) corresponding to the height of your eyes.

10. Ask your assistant to move the marked rod forward or backward until the eye level line is even with the clisimeter graduation.   11. When the rod is properly aligned, ask your assistant to mark the point on the ground with a stake. Move up to this stake and repeat the procedure.

Move the sighting pole until you see it
at the correct graduation


Note: if you need greater accuracy, you can hang the clisimeter at fixed height from a stick. If you do this, remember to adjust the marked level on the rod to this height.

4.6 How to use the optical clinometer

1. An optical clinometer is a precise pocket instrument for measuring vertical angles and estimating tree heights. It is commonly used by foresters. It can also be used to measure slopes quickly, with a method similar to that described for the clisimeter (see Section 4.5).
Clinometer

2. When you look through the sighting device of the clinometer, you can see a cross-hair and two scales. The left scale is graduated in degrees and the right scale is graduated in percent. Both scales have a positive (+ ) section for measuring uphill slopes and a negative section (-) for measuring downhill slopes.
Sight through hole

3. Keeping both eyes open, sight with one eye through the optical clinometer, moving it until the cross-hair lines up with the marked level you wish to measure (such as a rod). With the clinometer lined up in this position read the graduation at the cross-hair.
Read the graduation at the cross-hair

4.7 How to use miscellaneous levelling devices

1. In Chapter 5, various levelling devices will be discussed. These devices can also be used to measure a slope. To set a graded line of slope, see Section 6.9.
Sight with the clinometer

2. In Section 3.5, you learned about theodolites and how you can use them to measure horizontal angles. Most theodolites are designed to measure vertical angles as well. For this purpose, they are fitted with:
  • a graduated vertical circle attached to the horizontal axis of the telescope;
  • an extra graduated plate inside this circle for highly precise measurements.

Theodolite

3. Levelling devices help you measure the difference in levels between two points. After you have measured the horizontal distance between these points, you can calculate the slope as explained earlier (see Section 4.0, step 8).

Measuring difference in levels between two points


     4.8 How to set out and check verticals

1. A vertical is a line with a 90 slope. You will often have to set out verticals, especially when you are building walls for a canal or building. You have already used vertical lines, to measure distances over sloping ground for example (see Section 2.6, step 19).
Most walls are vertical

Setting out and checking verticals with a plumb-line

2. A plumb-line is a simple device which forms a vertical line*. The idea of the plumb-line is based on the fact that any heavy object will fall vertically, making a 90 angle with the horizontal plane at ground level.   3. In a plumb-line, a fairly heavy object, the plumb, is attached to the end of a thin line. When the plumb hangs freely without moving, the line is vertical.

Gravity makes objects fall vertically

A plumb-line

Making your own plumb-line

4. You can make a simple plumb-line from:

  • a thin line about 50 cm long, such as a piece of string, cotton thread, or nylon fishing line; and
  • a small but heavy object, such as a stone, metal nut, or fishing lead.
  5. You can make an improved plumb-line for measuring buildings in progress and other constructions. Start with a piece of wood or heavy metal about 10 cm square.

A simple plumb-line

An improved plumb-line

6. Find the exact centre of the square piece by drawing two diagonal lines on it. Drill a small hole through the point where they cross.

7. To make the plumb, get a heavy, solid block of wood (such as red acajou) or metal - the largest side of this block should be 10 cm across or less - if you can, shape the block into a cone.

8. If the block is wooden, drive a small nail into the exact centre of its top surface. If the block is metal, have a small hook welded to this point.

9. Attach the end of a thin line (nylon fishing line is strongest) about 1 m long to this nail or hook on the block and pass the other end through the central hole of the wooden or metal square piece. Fix the line on the other side of this hole either by tying it into a heavy knot or by tying a small piece of wood or metal (such as a nut) on to its end.

Note: you can change the dimensions of the plumb-line, depending on the materials you have. The line can be longer, if necessary.




Don't let the end of the line pass through

Using a plumb-line to set out a vertical

10. Remember that a free plumb-line will hang vertically.

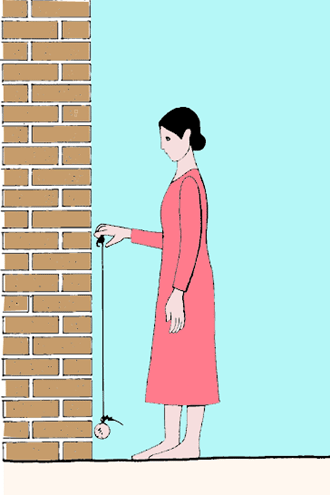

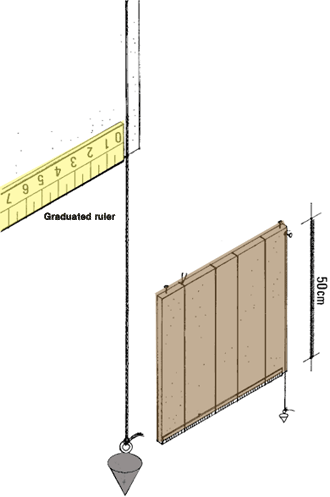

11. You can use a simple plumb-line to see if a wall is vertical. To do this, hold the top end of your plumb-line close to the wall and check to see if the distance between the wall and the top end of the line is equal to the distance between the wall and the centre of the weight at the bottom. This distance will be easier to check if the weight is pointed on the bottom.


Checking a vertical with a plumb-line

12. When using the improved plumb-line along a wall:

  • if the diameter of the weight is equal to the diameter of the top square, place one of the sides of the square against the wall. Check to see that the side of the weight slightly touches the wall;

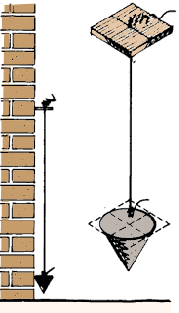

  • if the diameter of the weight is smaller than the diameter of the top square, place one of the sides of the square against the wall. Check to see that the distance from the centre of the weight to the wall equals half the length of the square's side.

Same-size weight touches the wall

Measure a smaller weight

Note: if you need to make the plumb-line shorter to measure along walls of different heights, you can pull the line up through the centre-hole in the square at the top. Let it back down through the hole to measure higher walls.

Pull up the line to measure shorter verticals

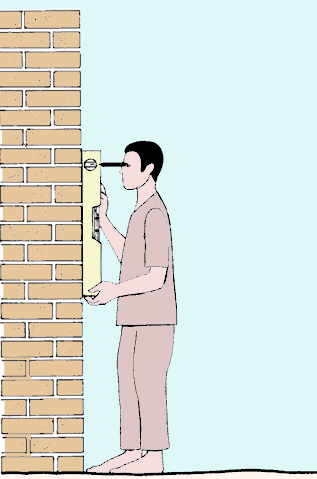

Checking small verticals with a mason's level

13. Some mason's levels (see Section 6.1) have an additional bubble level for checking verticality. You can use this level when you are building walls, for example. This method is particularly useful when the vertical you are checking is fairly small. Hold the mason's level vertically against the surface you need to check. If the surface is vertical, the bubble will be at the exact centre of the bubble level.
