Annex 25
Drawings

A. Fisheries Project in Dambulla

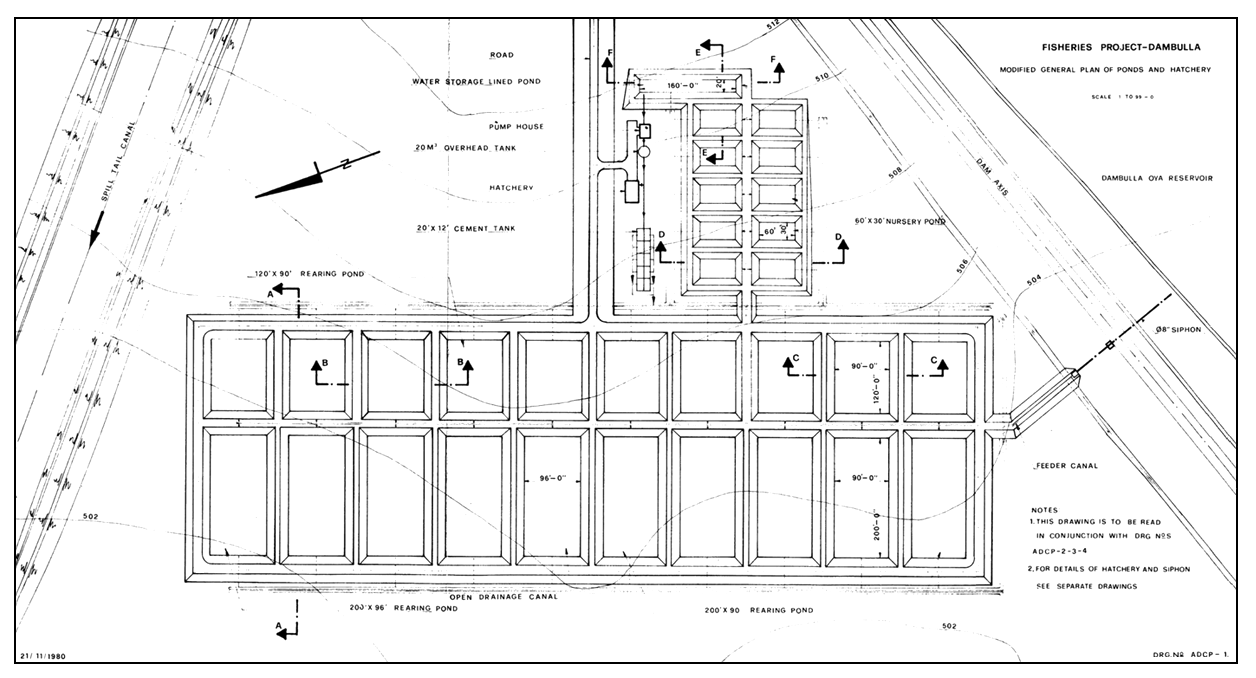

ADCP-1Modified general plan of ponds and hatchery

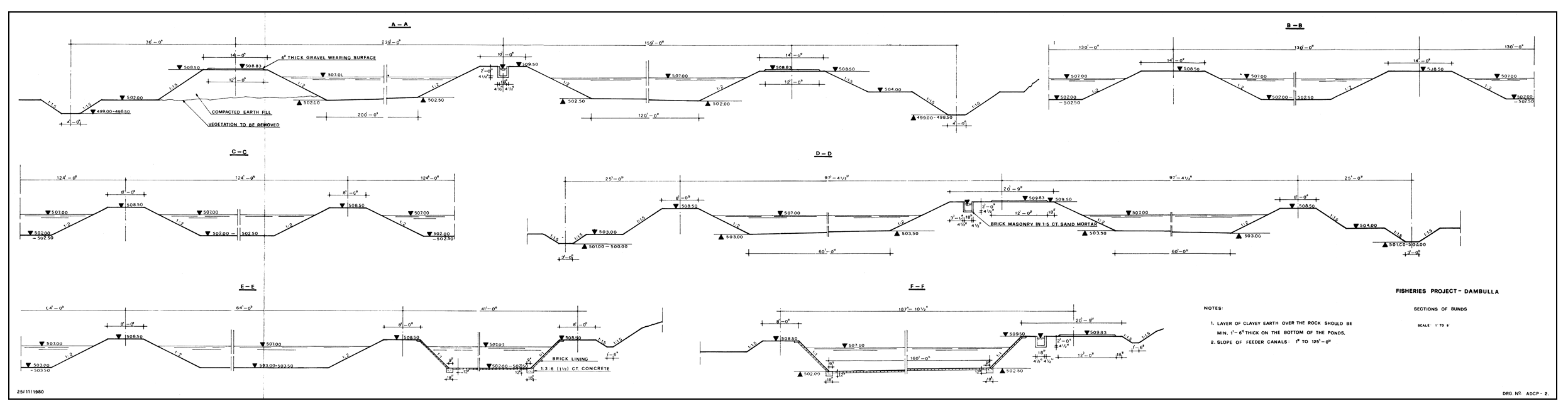

ADCP-2Sections of bunds

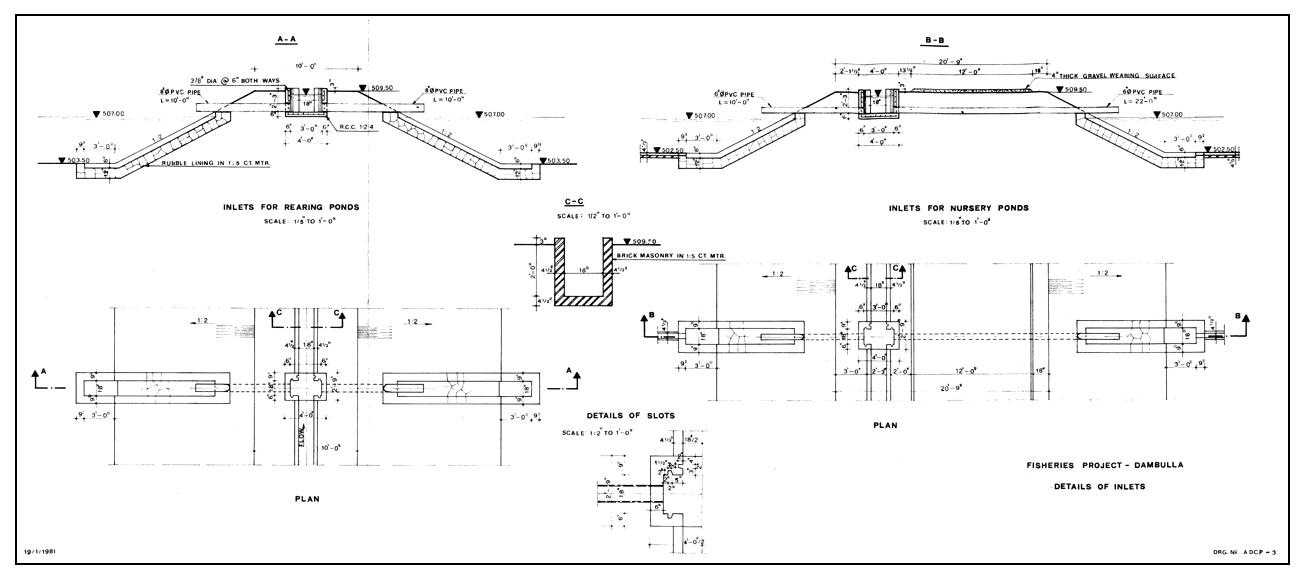

ADCP-3Details of inlets

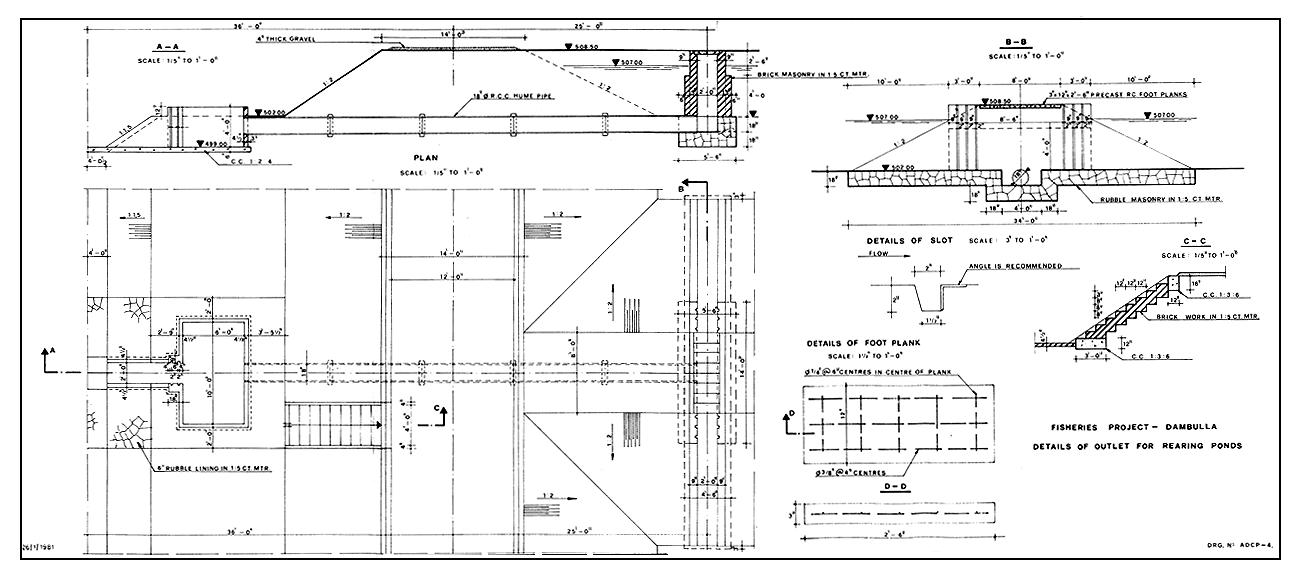

ADCP-4Details of outlets for rearing ponds

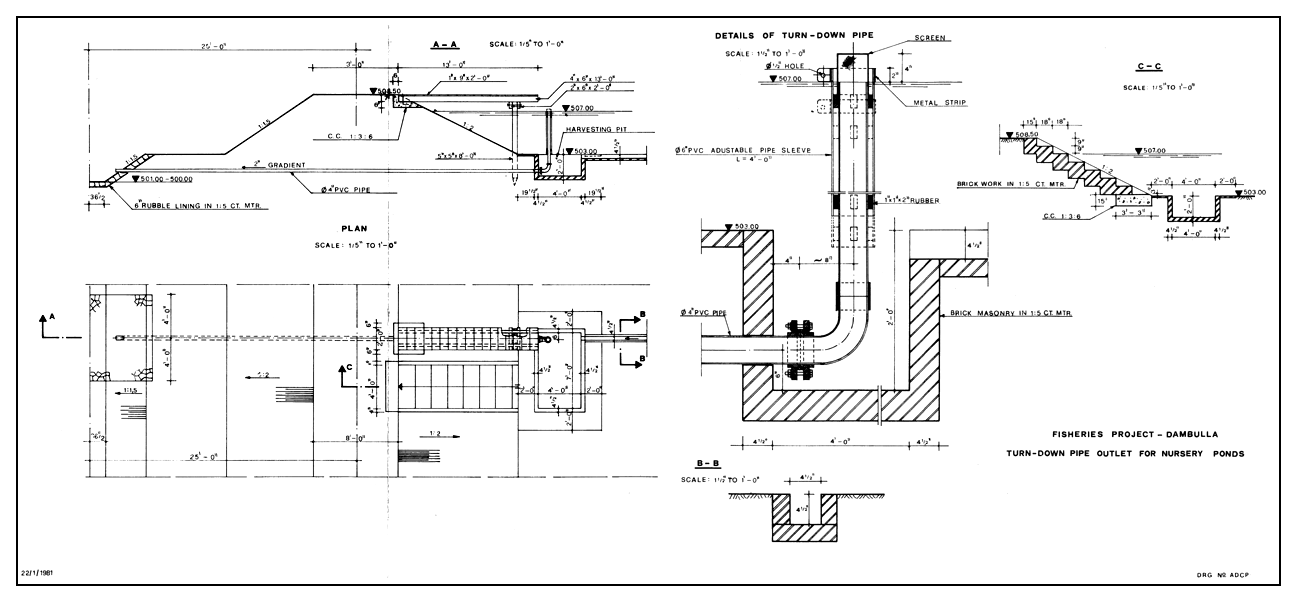

ADCP-5Turn-down pipe outlet for nursery ponds
ADCP-6Screens for outlets

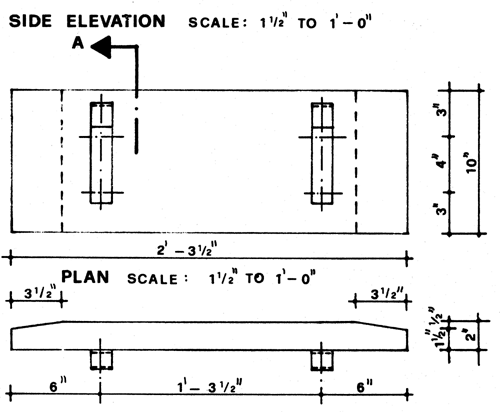

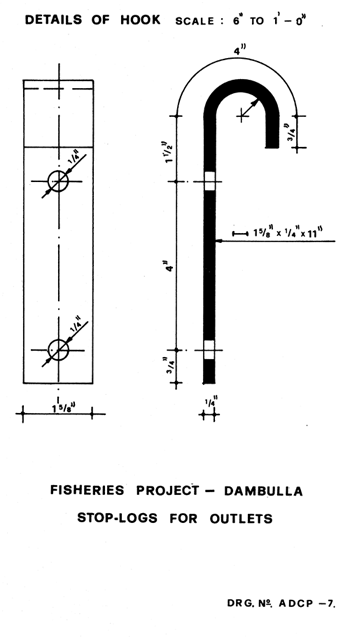

ADCP-7Stoplogs for outlets

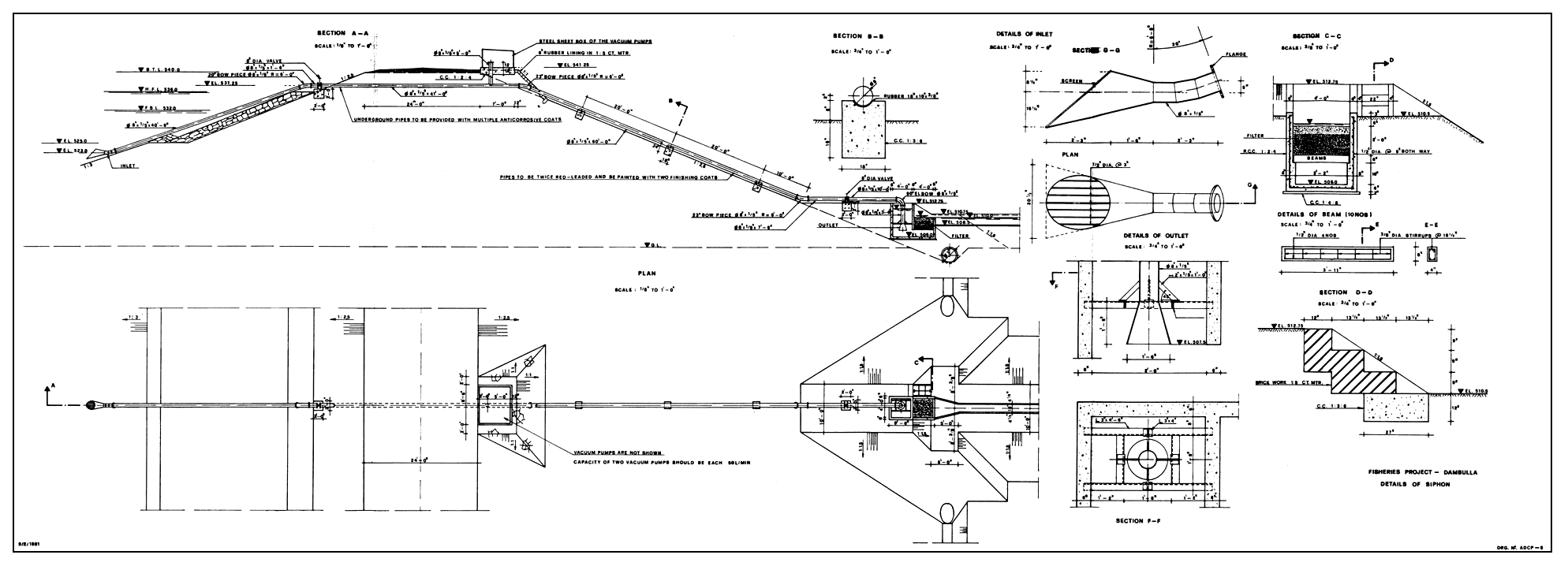

ADCP-8Details of siphon

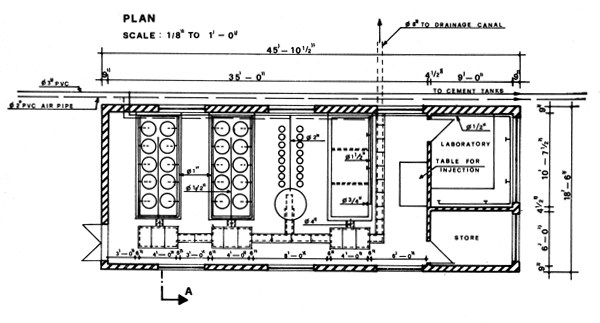

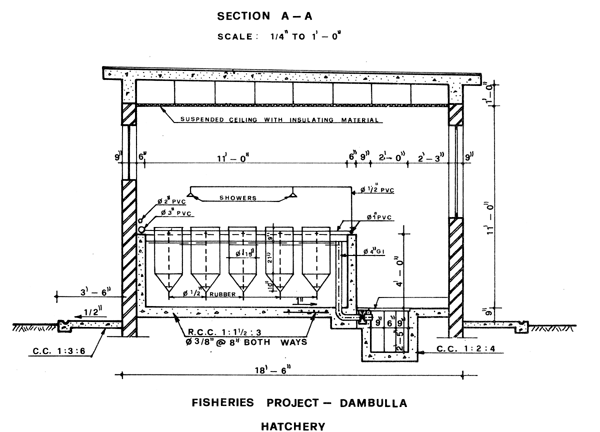

ADCP-9Hatchery

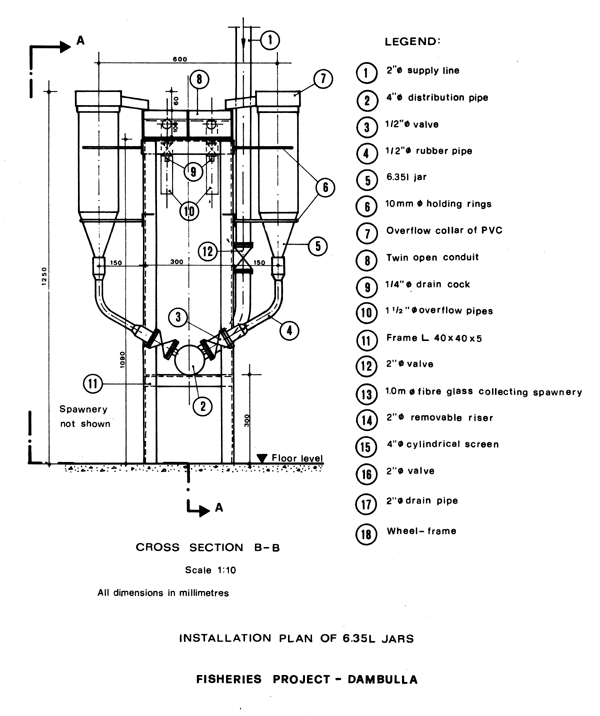

ADCP-10Installation plan of 6.35 l jars, Cross Section

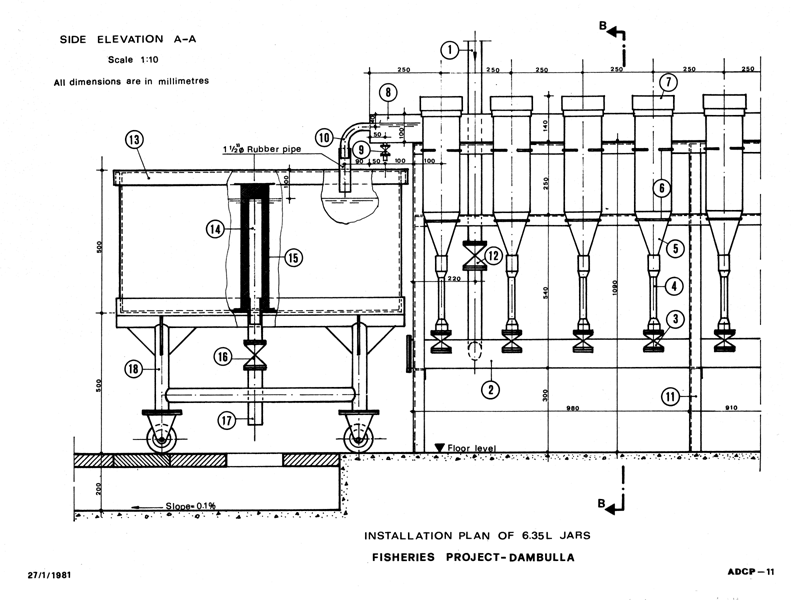

ADCP-11Installation plan of 6.35 l jars, Side Elevation

B. Brackish Water Station at Pitipana, Negombo

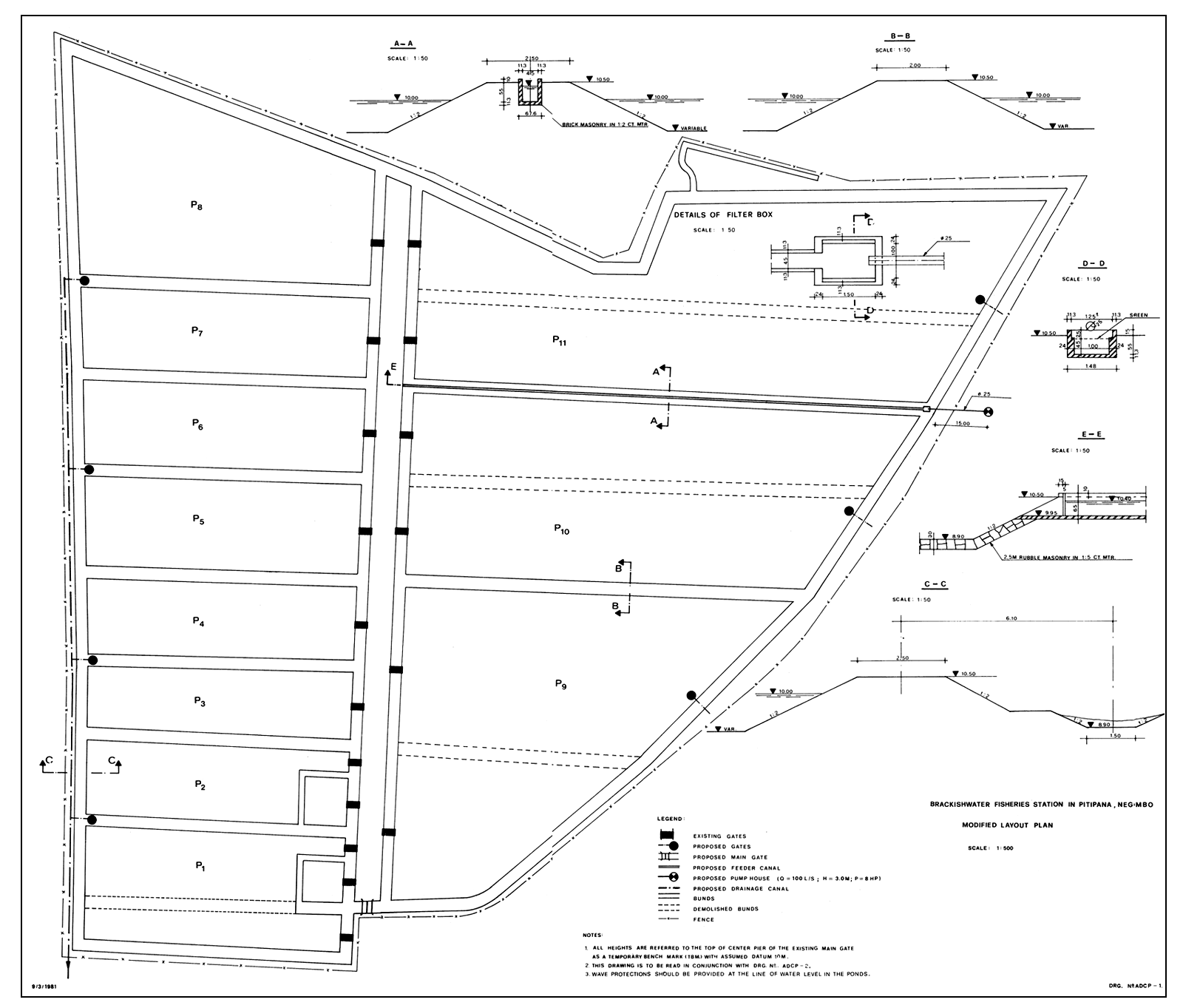

ADCP-1Modified layout plan

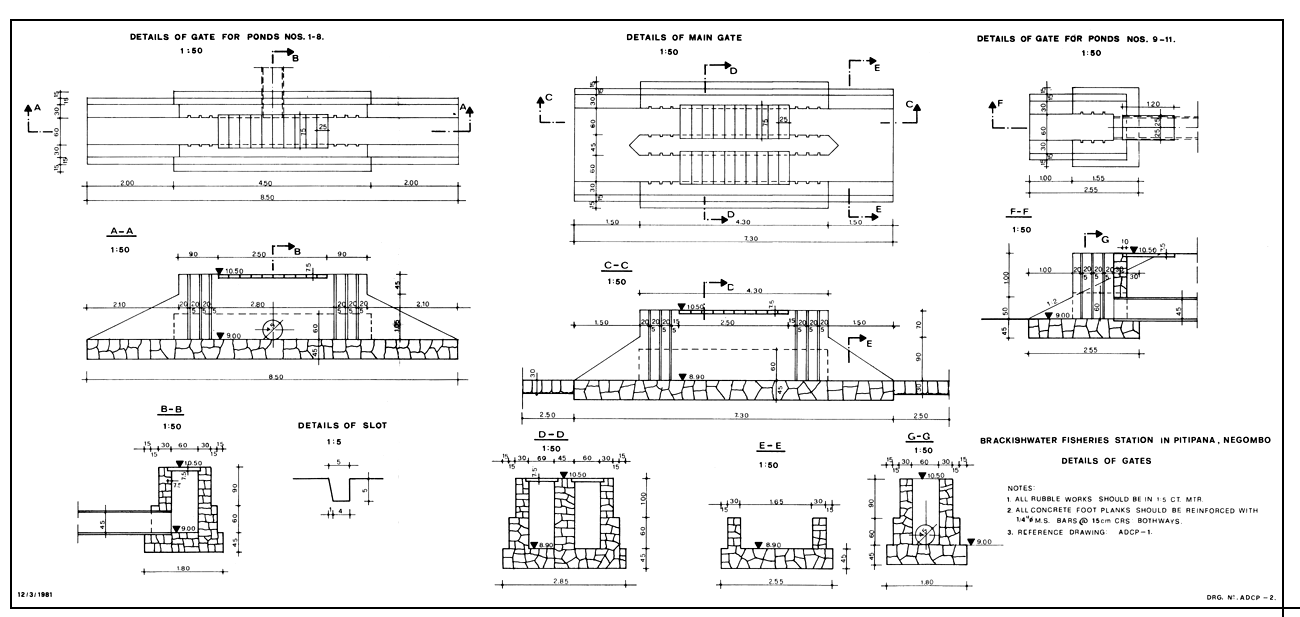

ADCP-2Details of gates

FISHERIES PROJECT - DAMBULLA

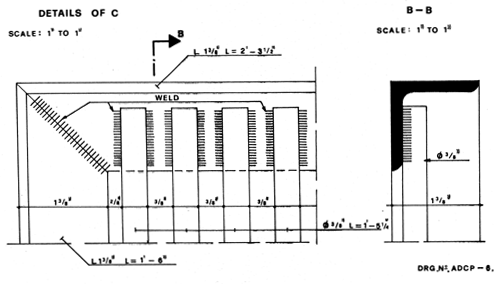

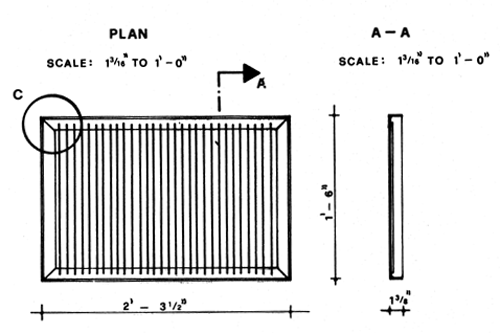

SCREENS FOR OUTLETS

NOTES:

1. ALL METAL WORK TO BE TWICE RED-LEADED.

2. NO. OF SCREEN: 20

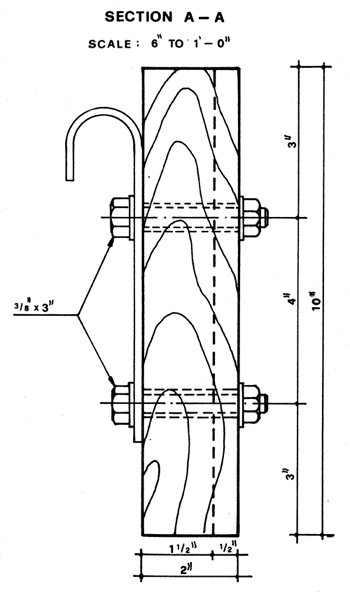

NOTES:

1. STOP LOGS TO BE THOROUGHLY IMPREGNATED WITH USED MOTOR OIL.

2. HOOKS TO BE TWICE RED-LEADED.

3. 50 PERCENTAGE OF THE STOP LOGS TO BE INSTALLED WITH HOOKS ON THEIR OPPOSITE SIDES.

4. NO. OF STOPLOGS: 240

1981


9/1/1981DRG.№.ADCP-9
27/1/1981ADCP-10
