3. ELEMENTS FOR PLANNING

Careful examination of the basic data collected will provide the background material for evaluating the feasibility of the technical alternatives to be formulated. A detailed analysis of the following aspects, which are briefly discussed, is mainly aimed at facilitating the evaluation process.

Figure 1

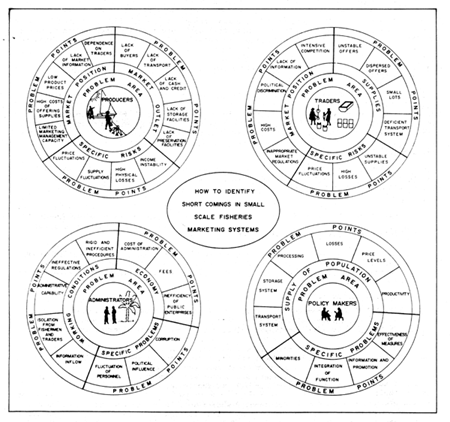

Figure 1 Identification catalogue of shortcomings in traditional fish marketing systems in small-scale fisheries

3.1 General Development Stages

Fish marketing development should take into consideration the present technological level of the people in the area under consideration and the economics of scale in fish production, storage, transport and distribution. In order to keep production costs at the lowest possible level, small-scale fish landing and marketing facilities shoud be unsophisticated and inexpensive whilst at the same time maintaining good standards of technology and hygiene. Particular emphasis should be placed on ensuring continuity in the supply of spare parts and availability of essential skills to operate and maintain the equipment. The level of technology chosen for the fish landing and marketing operations, should be able to easily fit into the present general technological level of the country and be, technically, suitable to the local marketing conditions.

3.2 Raw Material

A detailed examination of the raw material supply, taking into consideration the different species, their estimated shelf life, physical and chemical composition, available commercial sizes, the present raw material available and the expectation of decrease, stability or the increase of landings in the future. Seasonal fluctuations of the landed volumes of each species over a period of a number of years should also be examined.

3.3 Products and Fish Marketing Aspects

If the identification survey has shown that the major defects of the system could be remedied by the construction of fish marketing facilities, the next step should be to conduct a fish marketing study which should take into account the following:

It is advisable at this planning stage to assess the type of products expected to be handled, their market outlets, requirement at the markets for the products, and possibilities for product development work with the available fish species.

An assessment of the available labour resources in the area, and the identification of training requirements should also be prepared.

The role of existing or proposed cooperatives or other organizations in organizing local fishermen which could facilitate training, as well as the development of management skills, should also be examined.

3.4 Location

It is anticipated that the sites provisionally selected for the location of fish landing sites, collection points and marketing outlets will be done during this planning stage and their suitability will be re-evaluated as the planning progress.

For the site, or sites, selection the following points should be taken into consideration:

In general, the least-cost point of location, with respect to the proposed fish marketing developments, should take into consideration the importance of costs of inputs and of their transportation to the point of fish landing and marketing; the costs of marketing, allowing for economies of scale both within the fish landing marketing facility as well as those common to the fish trade; the costs of transporting final products to consumption destinations.

3.5 Cost Estimates and Sources of Financing

Cost estimates of land acquisition, site preparation, construction equipment and services required for fish landing and marketing facilities should be prepared, taking account of project property and materials, and services and labour costs so as to reflect future variations, from present costs.

A time schedule for the acquisition and implementation of the civil works will be needed in order to establish the timing of and consequent increased funding requirements.

Cost estimates should be as complete as possible and include total capital investment, schedule of expected revenue and anticipated operating and maintenance costs, so that the funding agency may be fully advised of the expected financial situation of the project during its construction and initial operating phases.

3.6 Basic Design Concepts

During the planning stage a process flow diagram showing the sequence of operations, equipment needed and service requirements should also be prepared. This will facilitate the planning of the provisional lay-out and the assessment of total service requirements. This process flow diagram could be prepared by setting out each stages concerned in the collection of fish either at sea or on the landing beaches, followed by transport, receiving, sorting, weighing, washing, chilling, storage, etc., and could end with transport to the retail outlets (see Figure 2).

In addition to this process flow diagram, an estimate of materials and energy needed during these operations should also be prepared, this will be very helpful throughout the planning process.

3.7 Small-Scale Fish Landing Facilities: Basic Designs

3.7.1 Site selection

The basic considerations regarding site selection for suitable landing and marketing facilities in a fishing area should take into account the following:

Figure 2

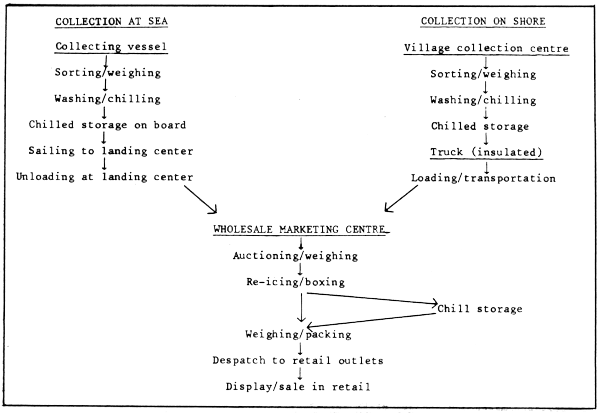

Figure 2 Simplified flow diagram for fresh fish collection, distribution and marketing

3.7.2 Services expected at landing sites

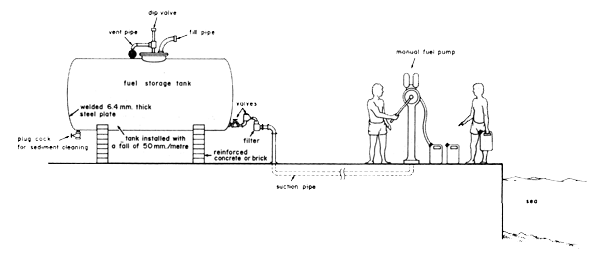

The basic service facilities required at a small-scale fisheries landing centre are:

3.7.3 Small-scale fish handling and marketing facilities; a design approach

The basic data needed for assessing the appropriate size and location of small-scale fish handling and marketing facilities should, partly, come from a detailed fish marketing survey. Such a survey should provide accurate data on products demand to provide for a sound design which should be adequate to take account of both present needs and expected near future developments. Design factors used should take account of available raw material, local climate, type of fish products (fresh fish, dried-salted, smoked or fermented, etc.). For example, a simple roofed platform with parking space could facilitate wholesale marketing operations in a small-scale fishing village trading in fresh fish.

3.7.4 Main construction design considerations

Technical and economic considerations are normally primary factors ruling the best form of construction of improved facilities for fish utilization, but it should be kept in mind that the selected materials and design should be adapted to suit local conditions.

Figure 4

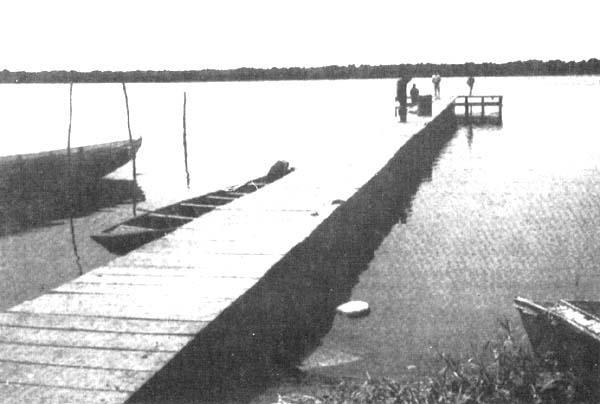

Figure 4 Landing services

Figure 5

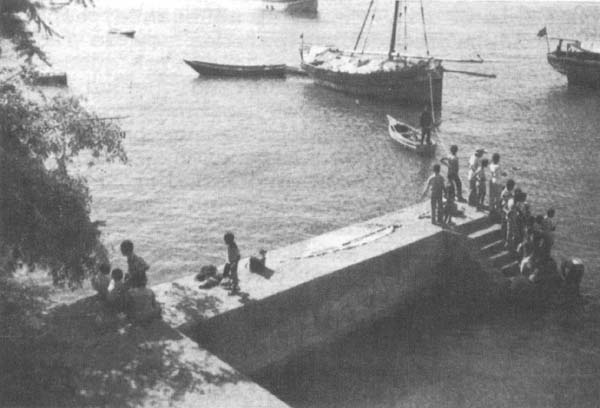

Figure 5 Landing operation

Thus, for example, access roads to fish landing and marketing facilities should possibly be designed to match the quality of the trunk roads in the country by which it is intended to reach the main markets.

3.7.4.1 Layout

During the preparation of the layout of the facilities, two basic requirements should be kept in mind :

  1. hygiene and functionality, and

  2. economy.

The layout of a fish-marketing facility should be arranged so as to avoid the possibility of cross-contamination, have proper drainage, and allow easy access to all equipment for effective cleaning and maintenance; follow the process flow diagram in such a manner as to obtain the best quality product at the lowest possible cost; provide space for the staff managing and supervising the daily operations; provide space for the quality inspector's operations and the storage of quality control equipment.

3.7.4.2 Buildings

In designing new fish marketing premises, a smooth sequence of operations from the receipt of the fish to its loading and transportation should be achieved. All operations should be conducted off the floor, at a height convenient for workers to perform their tasks in a standing position. For example, a single storey building, at a short distance from the landing area, will enable fast and minimum handling of fish along the quay, conduct marketing operations inside the market hall, and also reduce costs for drainage and structural civil works. This type of design will also enable ready access to vehicles to the market for loading purposes.

Ample, natural air circulation should be provided, especially in the tropics, where hollow-brick walls or grills are often used and a part of the building is sometimes open, without walls. Proper long eaves for protection against sunshine and rainshowers are essential in the humid tropics. An adequate pitch of the roof and the building orientated in relation to the prevalent direction of sunshine are also important considerations.

Floors should be hard-wearing, non-porous, washable, easy to drain, non-slip and resistant to possible attack from brine, weak ammonia, fish oils and offal. The choice of flooring materials will depend on the characteristics of the materials available in the area and their cost. For this purpose, granolithic concrete, terrazo and clay tiles can be used, but clay tiles are the best. Generally speaking, the harder tiles are less absorbent but more slippery than the softer tiles which are more absorbent and less easy to keep clean. Tiles with slightly abrasive surface are quite good as they are less slippery. Light-coloured tiles are recommended because they reflect light and show up dirt. Care should be taken when laying tiles in cement that all joints between tiles are complete and permanently sealed. The junctions with the walls should be coved for ease of cleaning. A sufficient slope of 2% from the highest point to the drainage outlets will be necessary, and at least 10 cm diameter drains will be required.

Walls should be constructed of materials that have smooth, washable and impervious inside surfaces of light colour. For easy cleaning they should be rounded at the junctions with other walls and ceilings should be kept as free as possible from ledges, projections or ornamentations to avoid dust collection. Walls, whose internal surfaces are not tiled, should be finished in plaster. Walls which are intended primarily as partitions should be strong enough for fish boxes or other light equipment to be piled up against them; good partitions can be erected from prefabricated concrete blocks and finished to a hard smooth surface, especially the lower parts, which are subject to constant wear.

Doors should be of simple and functional design. The main doors should be sufficiently high and wide to permit safe circulation of internal transport vehicles, e.g., when fork lifts are used in medium size fish terminals a 2.8 m high door will be required, and the width will be between 1.5 to 2.5 m. Internal doors should be self-closing and fitted with metal kick plates at the bottom.

Lighting should provide for adequate natural light, as well as artificial overhead lighting when necessary, in order to allow personnel to perform their duties without eye strain. Maximum use of natural daylight should be always part of the design, by providing adequate windows and skylights. It is also cheaper than artificial lighting. Fluorescent lighting is particularly suitable (daylight type) for fish-market areas where a shadowless light with very little glare is required continuously for a long time; even though the initial costs are relatively higher than other lighting systems, operational costs are lower and generally such a lighting is found to be economical. A light level of 220 lux as minimum is considered adequate. All artificial lighting fixtures should be water-proofed and shielded to protect against broken glass.

Sanitary facilities should provide for both workers and production requirements. In general, at small-scale fish landing centres, sanitary accommodation should be provided for the staff and for fishermen. It is important that the rooms containing the toilets be separated from the fish working areas and be well lit. They should be equipped with washhand basins, but the selection and design of on-site latrine/toilets will depend on the water effluent disposal system used in the area and cultural factors, as well as costs and availability of materials. The design should provide for ample water supplies at adequate pressure for washing and disinfecting operations; a regular schedule for cleaning and standardized procedures for manual cleaning of fish landing surfaces such as floors, walls, pillars, boxes, miscellaneous handling equipment should be established.

3.7.4.3 Fish stores and ice plants

To estimate space requirements, it is necessary to have reliable information on the daily fish landings in the area, on the basis of the normal average daily quantities expected to be handled. However, care should be taken to ensure that, during the high fishing seasons, especially in seasonal fishing areas, there is adequate space to handle peak landings. An estimate of:

  1. yearly average daily landed catches, and

  2. average daily catches landed during the peak season

could show the degree of increase in the peak season. It would often be advisable to allow, for this contingency, a 25% excess of space requirements on top of the average daily landings found for the peak season estimate. In general, it is estimated that around 12 to 15 m2/ton of fish boxed and displayed on the floor, can be a good compromise for estimating the space for the sales market hall.

In fish landing terminals, facilities are required to maintain the quality of fish and also to store it during seasonal peak landings. Several options are available such as chilled rooms with mechanical refrigeration to maintain a temperature of 0° – 1°C, insulated rooms, chilled or refrigerated sea water stores (or tanks), insulated containers or simple fish boxes. The choice will depend mainly on the degree of marketing sophistication required and local conditions.

Some design factors for calculating area and capacities for fish storage facilities are outlined below:

TypeCharacteristics
Refrigerated, chilled, roomsStorage capacity:3–4 m3/ton of iced fish in boxes
 Area required:2.1 m2/ton of iced fish stored in boxes
 Type: Manual operation, held overnight and sold next day
Chilled seawater storage facility (fixed)Storage capacity:1.25 to 2 m3/ton of fish
 Area required:1.5–2.7 m2/ton of fish
Portable container with Chilled seawater systemStorage capacity:1.57 m3/ton of fish
 Area required:1.5 m2/ton of fish
Ice plants (ice maker and refrigeration plant only):
(a) Block icePlant capacity:10 ton/24 hours
 Area required:100 m2
(b) Flake icePlant capacity:10 ton/24 hours
 Area required:20 m2
(c) Tube icePlant capacity:10 ton/24 hours
 Area required:30 m2
(d) Plate icePlant capacity:10 ton/24 hours
 Area required:9 m2

Plate and flake ice machines are normally located over the ice store enabling gravity feed of ice to the store with a consequent, considerable, reduction in ground area requirements. In all cases storage space for empty fish boxes should be provided as well as ample water supplies for cleaning and an area for box washing (preferably manually).

The ice plant should have sufficient capacity for, at least, the expected daily fish landings in the fish handling facility plus an additional production capacity if a fish collection system is also operated. The daily demand for ice can be estimated as follows:

The ice store should, at least, have the capacity to handle quantities sufficient for two days of ice production. Further information can be obtained from FAO Fisheries Circular No. 735 (Myers, 1981). The capacity of the chilled room for storage of iced fish should be calculated based on the expected market turnover. At a minimum, a capacity to store the average daily throughput of the fish landing facility should be provided; additional capacity would be needed if it is planned to operate a collection system.

3.7.4.4 Space for fish preparation

In some cases, a line for gutting and/or filleting might be required. Simple concrete or stainless steel tables should be provided. If crabs or other shellfish are to be processed (boiling, shucking, cooling) small boiling pans would also be required. Space for these operations as well as ample water supplies for washing should be provided.

3.7.4.5 Water supplies

There is a need for clean, fresh or sea water both at landing points and within the market premises. Sometimes, well water or sea water supplied from nearby beaches cleaned up by simple filtering devices, such as, for example, sub-sand filters are used in certain Southeast Asian facilities. Piped city water is, however, the most convenient.

The estimated volume of water required for only the basic fish marketing operations should provide for at least:

  1. for fish washing, 1 litre per kg of fish/day;

  2. 10 litres/m2/day for cleaning the market premises;

  3. 10 litres/box/day for fish box washing;

  4. 100 litres of fresh water/person per day for personnel use; and,

  5. an additional 15% of the total daily consumption of water calculated above for other uses (e.g., canteens and vehicles washing).

In addition, water for ice-making, to supply fishing boats and for cooling diesel engines and refrigeration equipment should also be considered where appropriate. Care should be taken to plan for the fact that fish markets are sometimes used twice a day, in which case an estimate of peak water demand on an hourly basis is necessary. In the design of small reservoirs and pipeline networks care should be taken to ensure that the system is capable of taking the peak demand at any time of the day, and an elevated reservoir should, possibly, have a capacity to store the maximum daily water consumption requirements. Hydraulic factors such as, for example, the frictional resistance of the water against the piping system (head losses) as well as type of piping materials to be used should be given detailed consideration. In the selection of materials, especially for seawater network systems, where the galvanic potentials between the various materials has to be considered in order to ensure that corrosion effects are minimal. Care should also be taken in selecting plastic materials, and the fillers used to make the plastic material must be relatively inert when in contact with the pumped water. Either manual or mechanically driven pumps can be used to lift water as shown in the Figures 6,7 and 8. For a more detailed study of these factors, reference should be made to FAO Fisheries Technical Paper No. 174 (Blackwood, 1978).

Figure 6

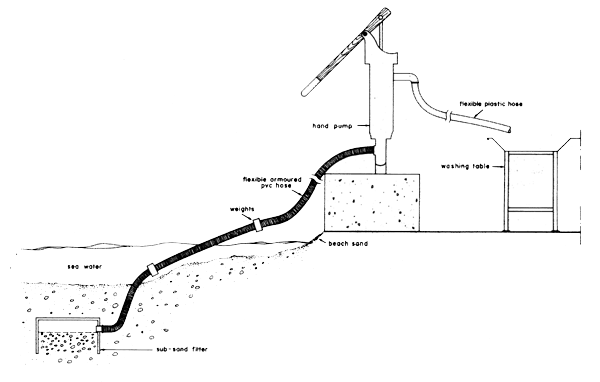

Figure 6 Manually operated sea-water supply system

Figure 7

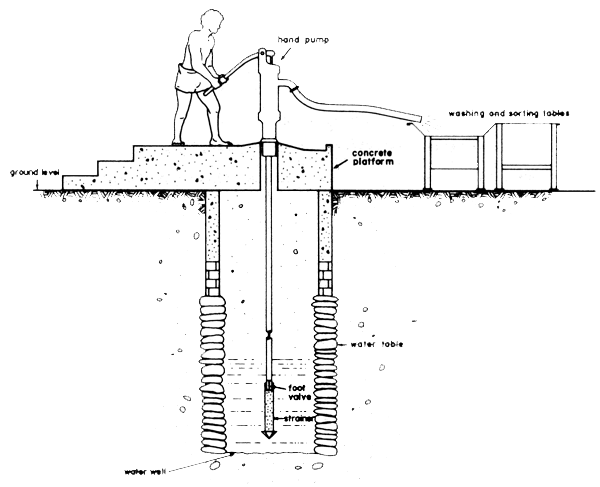

Figure 7 Village type water supply system

Figure 8

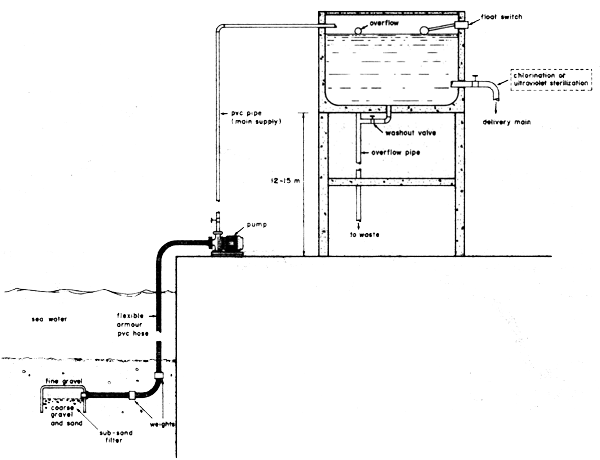

Figure 8 Mechanical type sea-water supply system with elevated reservoir

Mechanical pumps are driven either by an electric motor, small petrol engine or by windmills. Small, mechanical, centrifugal, pumps are suitable for lifting against not more than 7 m of suction lift. Hand operated reciprocating pumps (low-lift type), with a capacity of 35 1/minute, and maximum lift of about 6 m height, are commonly used either for seawater or freshwater.

Installation of elevated water storage tanks (header) from which water is supplied to the usage point by gravity provide a good technical alternative for fish landing centres, where large volumes of water must be stored. They consist of mechanically or windmill driven pumps supplying water to elevated storage tanks from which water is carried by gravity through a pipeline network to users. The usual locations for elevated tanks are either on top of a tower near the facilities, on the top of the building where the facilities are housed, or on a nearby hill. The size and type of water pump to use will depend upon such factors as :

  1. volume of water to be pumped;

  2. whether it is seawater of freshwater;

  3. vertical distance from the level the pump is installed to the level of the source of water;

  4. distance from the storage tank;

  5. total height against which the water pump has to work; and,

  6. kind of driving power available.

The pumps should be of a self-priming type and properly mounted and protected against floods, rain and vandalism. Windmill power should be considered only where the prevailing winds blow strongly enough (wind velocities not less than 2.2 to 3 m/sec, preferably above 4 m/sec) for the required number of hours a day and dependable enough to drive the pump so as to supply the required amount of water to a storage tank almost every day, or where no other form of power supply is available or appropriate. On-site chlorination systems for rural areas, which should be simple to operate, together with a sand filter (sub-sand biological types are commonly used) are essential for providing bacteriologically safe water to fish landing centres.

3.7.4.6 Waste disposal

Waste material is one of the outputs from the operations of fish handling and marketing facilities. It is, by its nature, highly prone to spoilage and can easily contaminate the fish and fish products being handled. Therefore, it should be immediately removed from the vicinity of areas where it can easily come into immediate contact with fish and fish products and, as soon as possible thereafter, removed altogether from the fish landing site and the market/handling premises themselves and their surroundings.

This waste material can be divided into solid and liquid waste. Waste of a mainly solid type should be stored in waterlight bins with covers. Such bins should be stored in an area with a concrete base sloping to a drain. These bins and the waste they contain should be removed at frequent intervals and disposed of in such a way as to avoid pollution. Such waste might be used for animal feed or fish silages or could be buried in pits.

Waste of a prevalently liquid type (effluents) should be removed from the landing site and the handling/marketing premises by draining it into the public sewage system where such exists. The drains should be designed to remove waste water without risk of flooding. At least 15 cm diameter drain pipes are needed in fish terminals. However, local health authorities should be consulted in order to comply with possibly more strict national regulations.

In rural areas, two options are available for water effluent disposal:

  1. water effluents from the landing/marketing facility could be drained into a septic tank and percolated into a field trench or soakaway;

  2. water effluents could be discharged into the main sewage system (if available) after course screening to retain solids.

The first option is, presently, most widely used in rural fishing centres. Septic tanks are rectangular chambers (two or three compartments), usually sited just below ground level, receiving both water effluents from the fish handling area (after coarse screening) and those from sanitary facilities. This material is stored in the tanks for a retention time of 1 to 3 days. During this period, the solid fraction settles to the bottom of the tank where it is digested anaerobically (without oxygen), which results in appreciable reduction in the volume of the sludge and releases gases (carbon dioxide, methane, hydrogen sulphide). The effluent, although clarified to some extent, will still contain some dissolved organic solids and viable pathogens which will require further treatment in the soakaway. (A septic tank and schematic view of a sewage disposal system for fish receiving stations are provided in Figures 9,10 and 11). Septic tanks may be constructed of brickwork, stone masonry or concrete and, for design purposes, the overall length to breadth ration is 2 or 3 to 1. The location of the septic tank and soakaways should be at as far as possible a distance from buildings and sources of water, or from trees whose roots may damage them. Care should be taken to avoid contamination of the ground water. The minimum distance requirements for septic tanks and saokaways will depend on the type of soil and its percolative capacity. For example, in sand and gravel type of soils (very often found at landing beaches) the septic tank should be located up to 30 m away from wells and water streams. The design of septic tanks and soakaways as well as the piping system should be based on the maximum daily flow of sewage to the system, the detention period required and the frequency of cleaning the sludge in the bottom. It should be noted that soil permeability is a basic factor determining the use of on-site septic tank/soakaways/trenches sanitation systems; with impermeable soils these are not feasible. For the design of soak soakaways the rate of infiltration should be investigated in the area; however, for purposes of design, a 30 1/m2 of side wall area per day infiltration rate can be assumed in landing beaches.

Figure 9

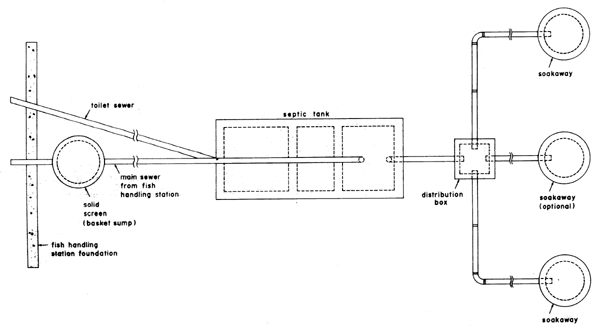

Figure 9 Sewage disposal system (not to scale)

Figure 10

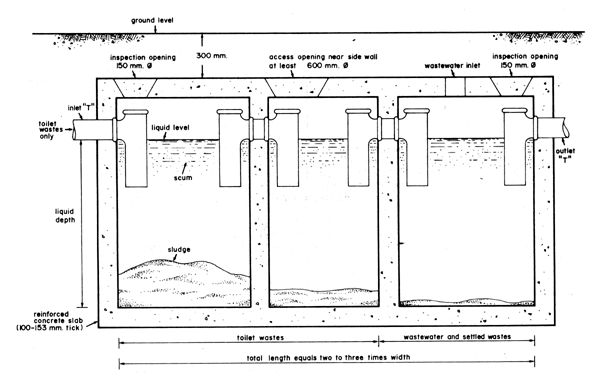

Figure 10 A three compartment septic tank

Figure 11

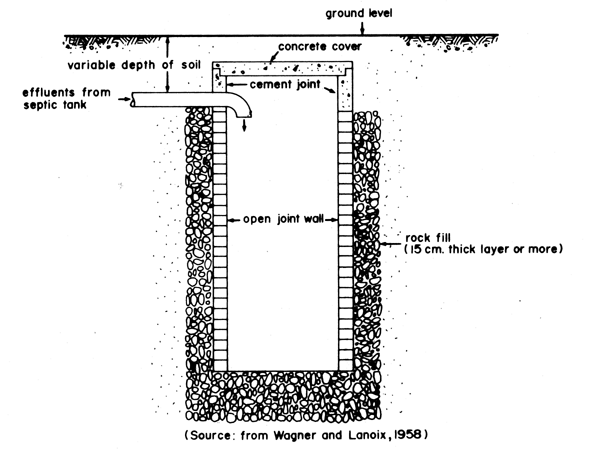

Figure 11 Soakaway for secondary treatment of sewage

3.7.4.7 Power supply

The electricity supply should satisfy the present demand and the likely future requirements. The wiring should be of ample capacity and properly insulated. The choice of power source will depend on the local conditions. A dependable public supply power is the most convenient, however, it is advisable to have, in addition, an emergency diesel electric generator to be able to supply enough power to run the most important refrigeration equipment (chilled rooms) and water pump and lighting. When it is necessary to operate a diesel electric generator an overall energy assessment will be required to determine the capacity of the generator to be selected. Diesel electric generators have good efficiency, quick starting, relatively low capital cost especially for small ratings, and simple maintenance. The 4-stroke engine is more common for the higher speed engines (750 and 1 500 rev/min) which are desirable to drive electric generators. Fuel consumption ranges between 0.2–0.3 kg/kwh. Maintenance requirements consist of routine inspection and servicing of fuel-injection nozzles and an overhaul after about 5 000 hours of running.

Non conventional sources of energy such as mini-hydroelectric generators, wind, biogas, photovoltaic cells and flat-plate solar collectors may be alternative options. However, careful consideration should be given to their potential application in the area under study and factors to be considered include: costs and performance in the actual village situations, availability of skilled personnel for operation and maintenance, as well as spare parts.

3.7.4.8 Parking areas

A detailed traffic study will help to quantify the area needed for parking. In small-scale fish landing facilities a convenient way of estimating is that access roads and loading yards should be large enough to absorb the anticipated peak traffic and that the loading area should be wide enough to allow for the necessary movement for the handling equipment (hand pallet trucks, trolleys, etc.) in order to move the fish quickly from the market hall to the vehicles.

3.7.4.9 Equipment

Some of the most important equipment used for small-scale fish handling marketing and distribution facilities is described in this section. It is needed to preserve the quality of the raw material and to facilitate efficient and economic handling and marketing.

(i) Weighing scales

Weighing scales should be of a heavy duty type and precise. They are needed both at landing places and also at sea for the fish collecting vessels when these are operated. Weighing scales used at landing places should be of the platform type with a counter-balanced arm and a tare device which can be set to compensate for the weight of the fish boxes. As an example, suitable specifications for a platform weighing scale would be:

For weighing scales used on collecting vessels, heavy duty, spring dial, type hanging balances are quite suitable, provided that they are made of corrosion-resistant material; a tare device that allows deduction of tare weights is also useful.

Figure 12

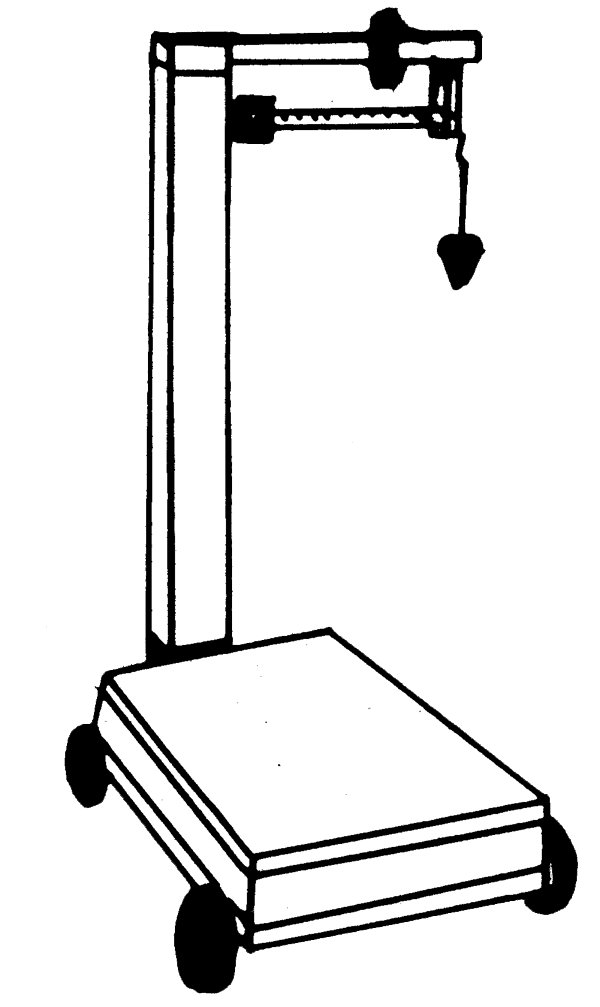

Figure 12 Platform weighing scale

(ii) Washing and sorting tables

At landing places, fish should, normally, be unloaded from the vessels, tipped into market containers, if not already boxed at sea, washed and sorted according to species and sizes, weighed into containers and chilled for either local marketing or further storage and transportation.

In order to facilitate the washing and sorting of the catch, simple tables constructed of aluminium, stainless steel, galvanized iron or concrete can be used. The primary aim of using washing and sorting tables is to speed up the operations of sorting the catch into species and to effectively remove blood and dirt by thoroughly washing the catch in clean seawater or freshwater and to reduce, to a certain extent, the number of bacteria present on the surface of the fish. After washing and sorting, the catch should then be handled according to the different needs of the market for which it is destined, e.g., removal of gills, gutting, filleting, packaging or boxing before chill storage and delivery to that market. Tables for washing and sorting should be constructed of non-corrosive metal or other impervious material, of rigid construction, with no open seams, and should also be constructed in such a way that they and the areas beneath them can be easily cleaned. In designing such tables, care should be taken to ensure that the dimensions are suited to the physical characteristics of the people who will be working at them (see Figures 13, 14).

Figure 13

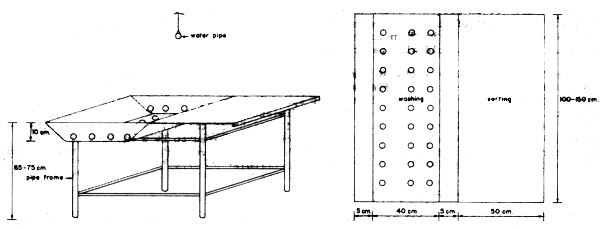

Figure 13 Metal fish washing and sorting table

Figure 14

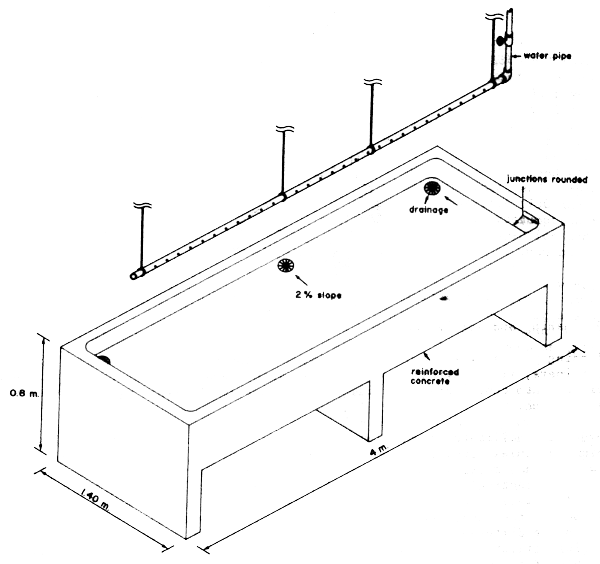

Figure 14 Concrete fish washing and auctioning table

(iii) Fish boxes

The design of a good fish box for efficient fresh fish handling, under tropical conditions, should take account of the varying needs it will have to satisfy on board fishing vessels, in warehousing, transport and at the landing and marketing places. It should have a constant tare weight, be strong, easy to handle, with adequate drainage, be easy to repair, have stack/nesting capabilities and be economical.

There must be an adequate stock of boxes at the landing sites, sufficient to allow the quick turn round of fishing vessels with clean boxes, thus allowing the boxes in which the fish was landed to be used in the market or by traders. An area for washing fish boxes (preferably manually) should also be provided for.

The dimensions and capacity of fish boxes should take into consideration such factors as fish size, packing density of fish and ice, drainage, suitable shape to ensure stable storage in vessels and maximum utilization of space in both at sea and during land transportation. It is desirable that boxes have sufficient length to accommodate the majority of fish caught (about 82 cm); and that the overall weight of the box and contents should be suitable for two men to lift comfortably, which is estimated to be a maximum of 67.5 kg (see Figure 15). Detailed information about fish boxes is given in Planning and Engineering Data, Containers for Fish Handling, FAO Fisheries Circular No. 773 (Brox, 1984).

(iv) Internal transport equipment

The first step to be taken in designing the most appropriate internal transportation equipment, is to study the internal operating practices and select the equipment that will permit flexibility of movement with emphasis on the use of manual handling aids such as small four wheeled push carts, platform trolleys, hand pallet trucks, manually operated two-wheel case trucks, etc. The use of a particular handling aid will depend upon the total load to be carried, type of floor surface, cost of the equipment and maintenance considerations. More detailed information on internal transportation equipment is given in Planning and Engineering Data, Fish Handling, FAO Fisheries Circular No. 735 (Myers, 1981).

Figure 15

Figure 15 Wholesale auctioning table for boxed fish

(v) Ice plants

Ice is of major importance in small-scale fish landing and marketing facilities. It is needed to maintain the quality of fresh fish during handling on board the vessel, collection, storage, transportation, marketing and distribution. Ice has good cooling capacity and its use will maintain low, chilling, temperatures, which is the most important factor in influencing the quality and storage life of fresh fish. At present, there are several types of ice plants for the manufacture of either block, plate, tube, or flake ice.

Block ice plants have the advantage that ice blocks can be transported relatively easily over long distances with low meltage losses; however, they lack flexibility in production, require large floor space and lifting devices to lift the blocks; they also have higher maintenance costs.

Flake, plate or tube ice plants (small ice) have the advantage of a more flexible production pattern, as the output of ice will start almost immediately they are switched on; handling is simplified if the flake or plate ice plant can be located on top of an insulated ice store which also reduce grand area requirements.

Small ice causes less damage to fish than crushed, block, ice but tends to melt faster and requires more storage space than block ice. In addition manpower requirements for small ice plants should be less than for block ice plants, as the labour required for the storage of ice is minimized. For example, a 10 t/24 h capacity small-ice plant requires about 29% less labour (man hours/24 h) than a block plant of the same output.

With any ice plant it is necessary to install an adequate ice store and its size will depend on the type of ice being manufactured and the local demand for ice. It can take the form of a silo or a rectangular bin but must be well insulated. According to the regularity of supply of fish and type of operations envisaged, the capacity of the ice store can be easily estimated.

(vi) Chill stores

Refrigerated chill rooms are widely used in small and medium scale fish handling, distribution and marketing operations. A suitable choice is the pre-fabricated, walk-in, chillroom (well insulated for tropical conditions) with independent refrigeration equipment and, whenever possible, having a simple but reliable system of control, which can be easily understood and operated.

Chill rooms should be designed taking into consideration the expected total weight of the product to be stored, handling methods to be employed (preferably manual), ambient temperature of the product entering the chill room, availability and cost of electricity, water and labour, and spare parts, and service/repair personnel. Whenever possible, standby refrigeration equipment should be provided for, in the event of any serious breakdown of the main refrigeration system.

In small-scale fish landing and marketing facilities, other types of chill stores are also used; these include insulated rooms, chilled or refrigerated seawater containers, cargo containers, refrigerated cabinets and small insulated containers.

Chilled seawater (CSW) containers are sometimes used for storage of higher market valve fish species and offer several advantages over traditional, boxed and iced handling techniques. They are also well suited for small pelagic species, which are caught in large quantities, which are not, normally, gutted or chilled at sea, but which require rapid handling and chilling with minimum effort, in a manner which ensures that the fish do not get crushed. CSW containers can be portable or fixed, and, in addition to their use on board fishing vessels, they find useful application in landing and marketing sites. Portable, insulated, CSW containers constructed of fibreglass or aluminium have been used for chilling small pelagic fish both on board vessels and at landing sites. HD polyethylene insulated containers with capacities of 70 to 1 000 litres can also be used in small-scale fish landing/marketing operations for the storage of chilled or frozen fish. Insulation materials often used include fibreglass or high density polyurethane, with outer and inner skins made of either aluminium or metals resistant to seawater; glass reinforced plastic (GRP); HD-polyethylene; concrete (outer skin) and marine plywood with GRP or epoxy resin coating. In order to minimize temperature stratification, it is desirable either to blow air into the containers or to recirculate the chilled water; in small-scale operations the use of a simple hand operated pump can solve this problem (see Figures 16, 17).

Cargo containers can also be used as chill stores for fish or ice storage and when so, refrigeration is provided either by the use of an attached individual cooling unit or by a central refrigeration plant. Cargo containers are normally available in standard sizes and are made of pre-fabricated insulated laminates fixed to an aluminium profile bearing system for the walls and roof, with the bottom frame made of steel profiles, and generally using polyurethane foam as insulation. They have several advantages in that they can easily be transferred to another location as they are designed for fast, loading/removal from a lorry chassis and only need to be sited on a leveled concrete floor and a shaded area for protection against sunshine.

Small, insulated, containers can be either locally made or factory constructed in different shapes and volumes and may be fixed or removable. There are several versions of small, insulated, locally-made, containers. These include, palm baskets lined with polyethylene film and insulated with dried coconut core or dried grass placed inside heatsealed polyethylene bags; in another version the lids are made of fiber mat and the same type of insulation materials as above are used; the “Bagamoyo” version of these insulated containers was rated only 10% lower from the thermal point of view in efficiency when compared with a factory made container (Lupin, 1986). Locally-made containers for small-scale operations at landing sites, markets, transportation, distribution and retailing outlets should:

Figure 16

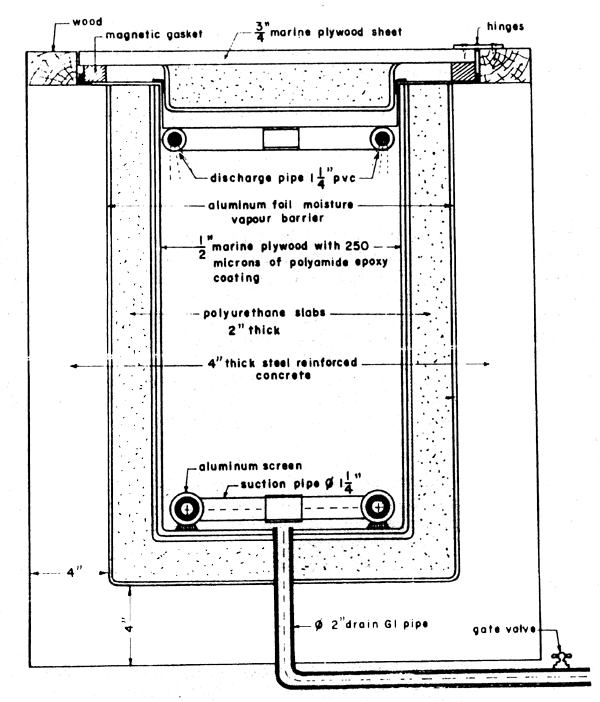

Figure 16 Cross section of the CSW tank

Figure 17

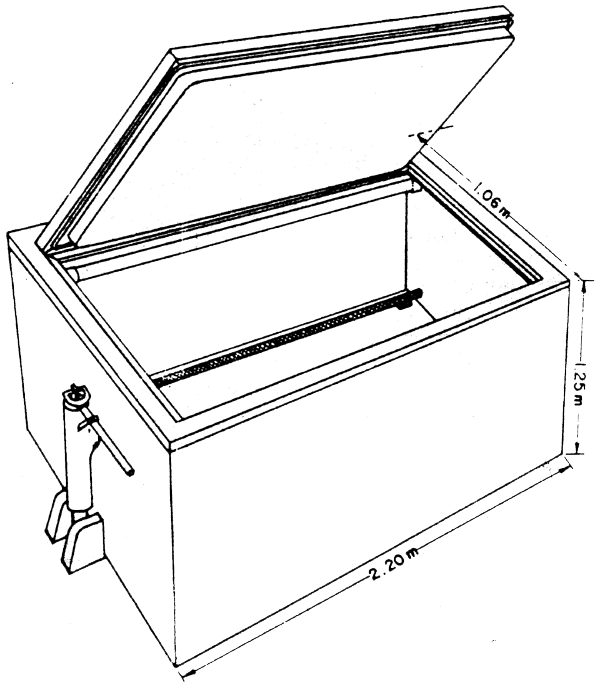

Figure 17 View of the CSW tank

Several types of locally made, returnable insulated containers are used in small-scale fish landing and marketing operations. These include the use of rectangular wooden or plywood boxes, concrete tanks or oil drums insulated with expanded polystyrene or polyurethane and lined them to avoid moisture absorption; also used are expanded polystyrene boxes lined with either plywood, fiberglass, plastic or galvanized steel sheets and reinforced with an outer wooden frame.

Refrigerated seawater stores have wide application on board industrial fishing vessels, fish processing plants (canneries) and can also be used at landing sites. The basic principle of this method is to chill seawater in a heat exchanger from which it is circulated to the holding tanks. Normally a fish:water ratio of 4:1 is used and a holding temperature of -1.1°C is maintained. However, this method of chilling is not, generally, recommended for use in small-scale operations. The method is mainly used for the short term storage of particular species such as small pelagics which are too small and numerous for easy handling, sorting and boxing; moreover the equipment is expensive and requires careful maintenance and supervision when in operation.

(vii) Gutting and filleting tables

There is a need for simple and easy to clean gutting and filleting tables in small landing and marketing facilities. These should be designed so as to provide ample working space, have offal chutes or bins located as close as possible to the working stations, have impervious and corrosion-resistant surfaces, and be provided with a good water supply and drainage facilities. Tables can be made of smooth concrete or stainless metal. Wooden working surfaces should be avoided since they tend to become water-logged and are very difficult to clean effectively. As an example, the specifications for a portable metal type, gutting, filleting, table could be:

Dimensions: 3 m long by 1.2 m wide, 85 m high

Materials: stainless steel 18/8 with fitted plastic cutting boards on each side of a central trough.

Tables should be designed to take into consideration the physical characteristics of the people who will work at them, providing a comfortable working space, and be of suitable height, to suit their body and reach characteristics. Various fish receiving facilities can be seen on Figures 18–23.

3.7.5 Fish collecting systems

In order to meet the special needs of small-scale fisheries and to utilize more efficiently the fresh fish which they land at numerous and often scattered landing points, several fish collection methods have been attempted. These include, for example, the use of fish collection vessels, the use of road transport employing insulated trucks, or the use of modified bicycles.

The main requirements for fish collecting vessels are to have adequately insulated or refrigerated fish holds, for delivery of ice to the fish collecting beaches and the transport of the iced catch back to the main central fish depot. At the central fish depot or landing centre such vessels require adequate jetties for easy and fast unloading of fish and a supply of fuel, water, ice and fish boxes and food, as well as chill storage and transportation facilities for onward distribution of the fish to the markets. It is also necessary to have a reliable communication system in order to route collecting vessels, decide on quantity of ice and fuel to be supplied, and to obtain timely marketing information. As in all other commercial operations, fish collection schemes must be properly planned, the technical and economic feasibility evaluated and the schemes efficiently managed and operated.

Figure 18

Figure 18 Windmill water pump

Figure 19

Figure 19 Concrete fish display tables

Figure 20

Figure 20 Fish market hall

Figure 21

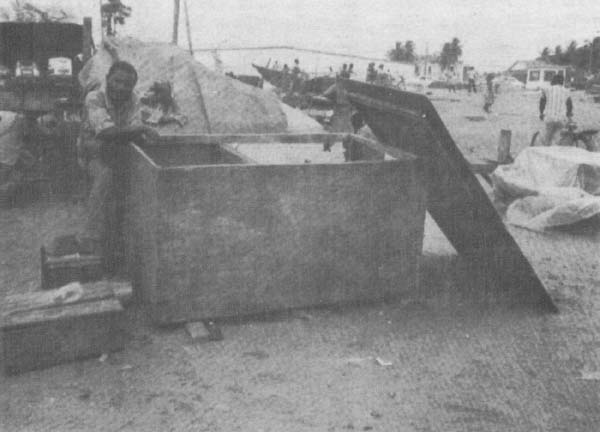

Figure 21 Non-insulated fish and ice container

Figure 22

Figure 22 Insulated ice storage container

Figure 23

Figure 23 Water tower

A detailed fish marketing plan, including a realistic estimate of the sales and daily demand, should provide basic information for the planning stages. Fish marketing trials on a modest scale will also be required in order to assess in practice all aspects of the fish collection and distribution schemes being considered. In order to keep operational costs realistic, attempts should be made to provide for return cargo (for trucks or carrier vessels), and to work out an optimum size of the carrier vessels or trucks, keeping in mind the quantity of cargo available, the duration of the trips, fuel consumption, and maintenance.

3.7.6 Management

Basic decision making skills and supervisory capacity are vital for good management. Training in technical and organizational methods will often be required to upgrade staff skills to enable them to successfully overcome daily fish marketing problems.

A detailed plan of operations should be prepared during the planning stages and used to establish clearly, each staff member's functions. This plan should also establish detailed procedures for the systematic collection, handling, storage and distribution of landings, method of payment, issue of receipts, weighing system, daily sales and marketing expenses recording system, and the preparation of monthly financial reports. In the case of fish landing centres with fuel and oil service stations, gear and engine workshops, ice plants, supplies stores, etc., a detailed plan of operations and procedures for each component should also be prepared (see Figure 24).

Figure 24

Figure 24 Fish collection/unloading

3.7.7 Live fish marketing

In Southeast Asian countries such as China, Hong Kong, Indonesia, Philippines and also the Bahamas, in the Caribbean, the live marine and freshwater fish trade, originating, predominantly, from coral reefs areas and fish ponds is an economically viable practice.

These live fish are stored on board vessels in live-fish holding tanks which are constructed so as to provide for a constant exchange of water in which the vessel sails. On arrival at the landing centres the live fish are sold to wholesalers or retailed directly to the consumers (Bahamas). In these landing centres handling space is required for the storage and marketing of the live fish. For this purpose, watertight concrete tanks with a water circulation system, which also provides adequate aeration by the spraying action of the incoming water, should be considered. For example, a live-fish collecting station and market (330 × 40 m) designed to handle 2 500 t/year was proposed for Java (Magnusson).

It included 24 concrete tanks (2 × 3 × 0.6 m each) for live-fish storage, an elevated water tank (45 m3 capacity) and a water pump.

However, mortalities due to post-harvest handling of live marine fish have been reported to be around 50%, due mainly to injuries incured during capture and transportation (inflicted by the fishing gear or excessive agitation of the water). An improved water circulation system on board has been proposed to lower this mortality rate (Leung, 1978).

Water used for the transportation and holding of live fish should be clean, well oxygenated, uncontaminated, and unchlorinated (small quantities of chlorine can kill fish). To hold live fish for sale (market) storage rates of 5–8 kg of live fish/100 litres of water is a practical approach for design purposes and provides a few days holding. For live fish retail shops, simple tanks provided with biological filters (gravel/sand) and aerated by small electrically driven air pumps can be a good alternative.
