Fruit juices are products for direct consumption and are obtained by the extraction of cellular juice from fruit, this operation can be done by pressing or by diffusion.
For the purpose of this document, the technology of fruit juice processing will cover two finished product categories:
We will also define as
Juices obtained by removal of a major part of their water content by vacuum evaporation or fractional freezing will be defined as "concentrated juices".
8.7.1 Technological steps for processing of fruit juices without pulp
Fruit juices must be prepared from sound, mature fruit only.
Soft fruit varieties such as grapes, tomatoes and peaches should only be transported in clean boxes which are free from mould and bits of rotten fruit.
WASHING: fruit must be thoroughly washed. Generally, fruit will be submitted to a pre-washing before sorting and a washing step just after sorting.
SORTING: removal of partially or completely decayed fruit is the most important operation in the preparation of fruit for production of first quality fruit juices; sorting is carried out on moving inspection belts or sorting tables.
CRUSHING/GRINDING/DISINTEGRATION STEP is applied in different ways and depends on fruit types:
Crushing for grapes and berries;
Grinding for apples, pears;
Disintegration for tomatoes, peaches, mangoes, apricots.
This processing step will need specific equipment which differs from one type of operation to another.
ENZYME TREATMENT of crushed fruit mass is applied to some fruits by adding 2-8% pectolitic enzymes at about 50° C for 30 minutes.
This optional step has the following advantages: extraction yield will be improved, the juice colour is better fixed and finished product taste is improved.
However, for fruit which is naturally rich in pectic substances, this treatment makes the resulting "exhausted" material useless for industrial pectin production.
HEATING of crushed fruit mass before juice extraction is an optional step used for some fruit in order to facilitate pressing and colour fixing; at same time, protein coagulation takes place.
PRESSING to extract juice.
DIFFUSION is an alternative step for juice extraction and can be carried out discontinuously or in batteries at water temperature of about 80-85 ° C.
JUICE CLARIFYING can be performed by centrifugation or by enzyme treatment. Centrifugation achieves a separation of particles in suspension in the juice and can be considered as a pre-clarifying step. This operation is carried out in centrifugal separators with a speed of 6000 to 6500 RPM.
Enzyme clarifying is based on pectic substance hydrolysis; this will decrease the juices' viscosity and facilitate their filtration. The treatment is the addition of pectolitic enzyme preparations in a quantity of 0.5 to 2 g/l and will last 2 to 6 hours at room temperature, or less than 2 hours at 50° C, a temperature that must not be exceeded.
The control of this operation is done by checking the decrease in juice viscosity. Sometimes, the enzyme clarifying is completed with the step called "sticking" by the addition of 5-8 g/hl of food grade gelatine which generates a flocculation of particles in suspension by the action of tannins.
FILTRATION of clarified juice can be carried out with kieselgur and bentonite as filtration additive in press-filters (equipment).
DE-TARTARISATION is applied only to raisin juice and is aimed to eliminate potassium bitartrate from solution. This step can be performed by the addition of 1% calcium lactate or 0.4% calcium carbonate.
Pasteurization of juice can be done for temporary preservation (pre-pasteurization) and in this case this operation is carried out with continuous equipment (heat exchangers, etc.); warm juice is stored in drums or large size receptacles (20-30 kg). Pasteurization conditions are at 75°C in continuous stream.
Pasteurization of bottled juice is then carried out just before delivery to the market; this is performed in water baths at 75° C until the point where the juice reaches 68° C. In cases when the final pasteurization is done without pre-pasteurization and temporary storage, modern methods use a rapid pasteurization followed by aseptic filling in receptacles.
Rapid pasteurization conditions are as follows: temperature about 80° C, over 10-60 sec., followed by cooling; all operations are carried out in continuous stream.
Preservation under CO2 pressure may be done at a concentration of 1.5% CO2 under a pressure of 7 kg/cm². At the distribution step, proceed at CO2 decompression and the juice is then submitted to a sterilising filtration and aseptic filling in receptacles.
Preservation by freezing is carried out at about -30° C, after a preliminary de-aeration; storage is at -15 to -20° C.
Production of concentrated juices by evaporation is performed under vacuum (less than 100 mm Hg residual pressure) up to a concentration of 65-70% total sugar which assures preservation without further pasteurization. Modern evaporation installations recover flavours from juices which are then reincorporated in concentrated juices.
Additional operations for juice manufacturing are the vacuum de-aeration and mixing with other fruit juices or with sugar.
For the production of non clarified juices the centrifugation is the only specific step, enzyme clarifying and subsequent filtration being eliminated.
The optimum sugar/acid ratio for the majority of fruit, mainly for pomaces, is 10/1 to 15/1.
Fruit which is rich in carotenoids (apricots, peaches, etc.) is only processed as juices with pulp ("nectars").

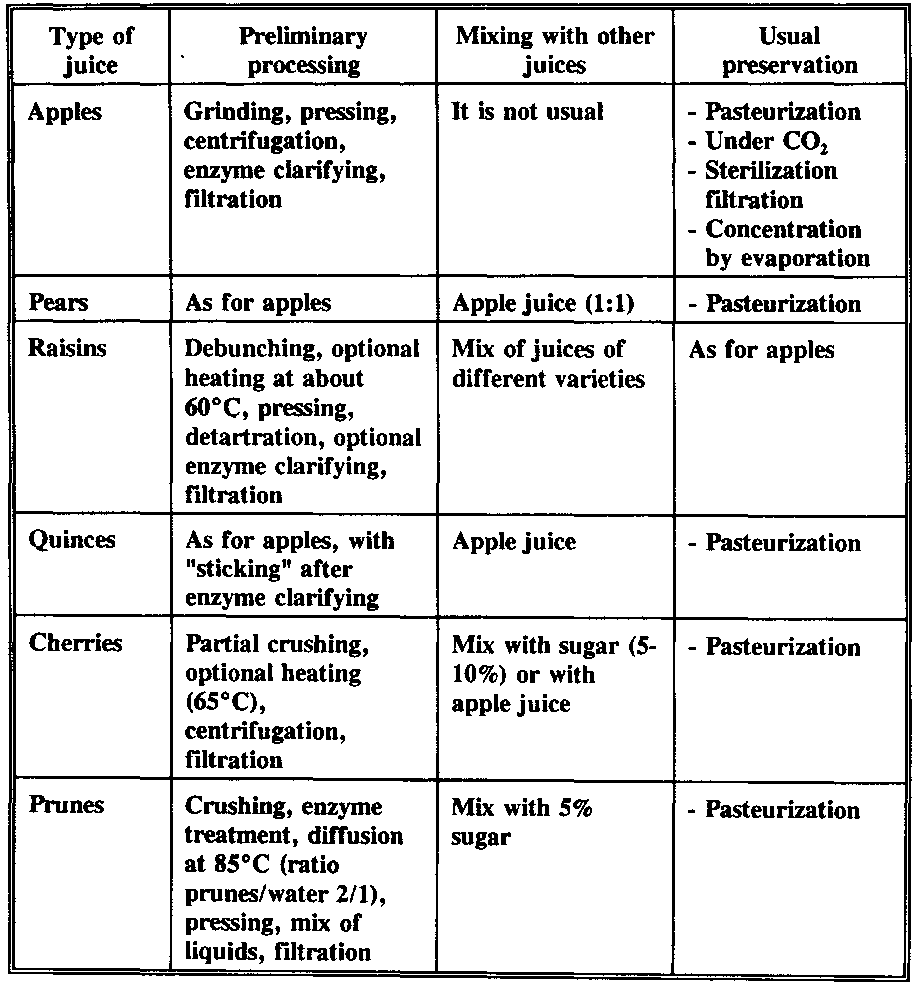

Technological steps for processing of specific fruit juices without pulp are seen in Table 8.7.1.
TABLE 8.7.1 Technological steps for processing of specific fruit juices without pulp

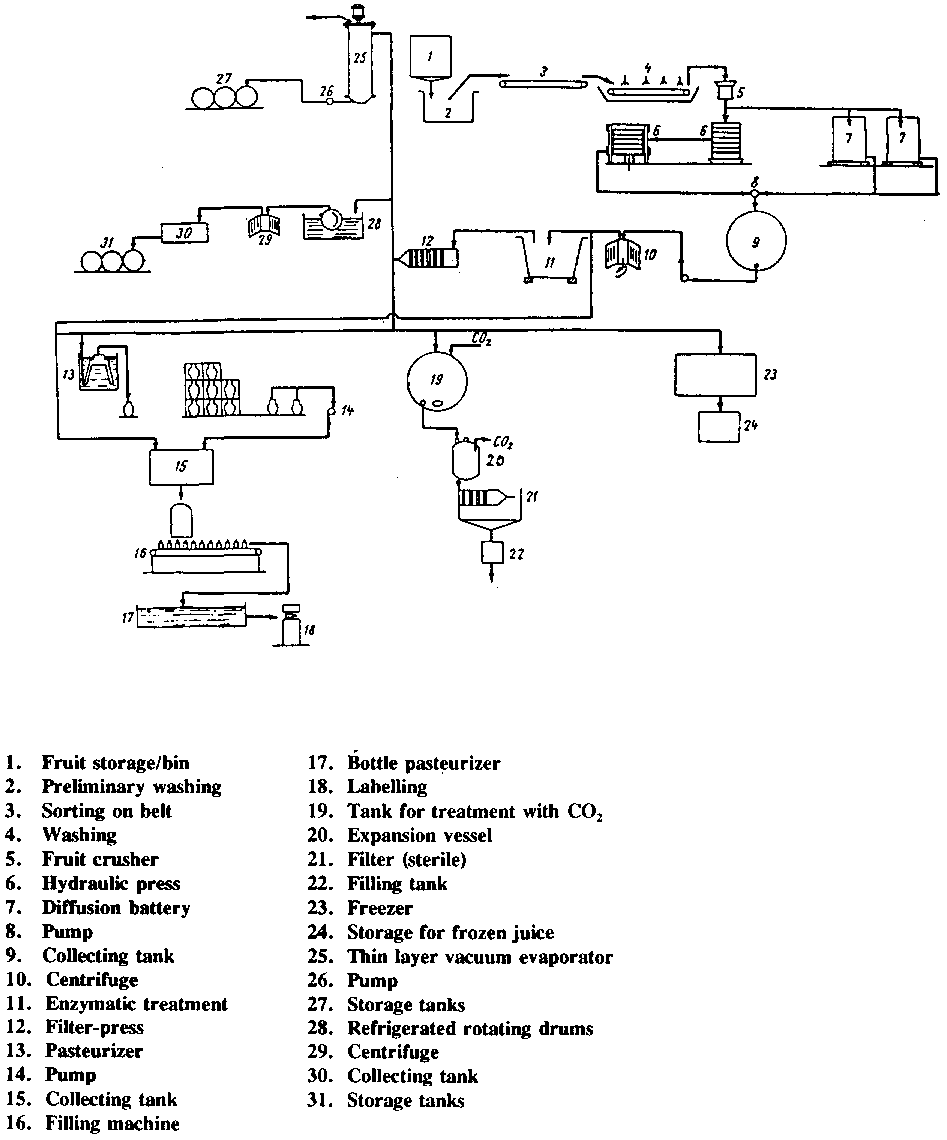

Fig. 8.7.1 describes a general technological line for the production of fruit juices without pulp.
Figure 8.7.1 General technological flow-sheet Fruit Juices w/o pulp
8.7.2 Technological flow-sheet for fruit juices with pulp ("Nectars")
This process is divided at industrial scale in two categories of operations:
a) Operations in the first category are differ according to the type of fruit which to be processed.
Pomaces (apples, pears) are washed and sorted and then crushed in a colloid mill; fruit purée is then passed through a screw type heating equipment where direct steam is used as a source of heat. Warm fruit mass is treated in a pulper with a 2 mm screen and then through an extractor similar with the equipment used for tomato juice.
Stone fruits (apricots, peaches, cherries, etc.) after washing and sorting are submitted to steam in a continuous heater, then the warm fruit mass is passed through a pulper and then an extractor (as mentioned above). Berries (strawberry, wild berries, etc.) are washed, sorted and then crushed, preheated and then introduced in extractor.
In order to avoid browning and undesirable taste modifications it is usual to add about 0.05% ascorbic acid.
b) Second category type of operations are similar for all fruit species. Partial elimination of cellulose is achieved with a continuous centrifugal separator; the resulting juice is then processed in order to adjust sugar and acid content for viscosity.
Sugar (about 8-10%) is added as a syrup (in water or in the juice of same fruit obtained by pressure). Acidity is adjusted with citric or tartaric acid. The adjusted juice is then deaerated under vacuum at about 40° C. This step aims at avoiding oxidative reactions and vitamin C loss reduction.
An important subsequent step is an intensive homogenisation (under pressure at 150-180 A) in order to obtain particles with dimensions below 100. The homogenised juice obtained is then continuously pasteurized in plate heat exchanger equipment at a temperature of about 130° C, cooled down to about 90° C and aseptically packed in receptacles.
The principal characteristics of fruit "nectars" are uniformity and stability of the content provided by the advanced disintegration of fruits. Stability can be obtained by increasing product viscosity by adding pectin for fruit which is deficient in this component. In order to avoid "separation", intensive homogenisation is carried out as described above.
Fruit "nectars" contain all the important components of the original fruit and to a large extent maintain their taste and flavour. The sugar/acidity (as citric acid) ratio is to a large extent determined by the type of fruit and the correction applied; for example, this ratio is 30 for apricots, 40 for peaches, 160 for pears, etc.

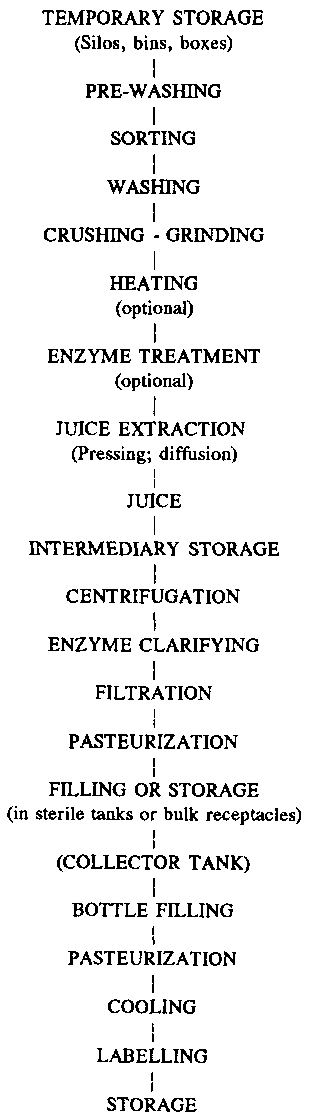

A general technological flow-sheet for fruit juice processing is presented below.
8.8 Banana and plantain processing technologies
8.8.1 Traditional processing
8.8.1.1 Products: Uses and Dietary Significance
Most of the world's bananas are eaten either raw, in the ripe state, or as a cooked vegetable, and only a very small proportion are processed in order to obtain a storable product. This is true both at a traditional village level with both dessert and cooking bananas and when considering the international trade in dessert bananas.
In general, preserved products do not contribute significantly to the diet; however, in some localised areas the products are important in periods when food are scarce.
Probably the most widespread and important product is flour preparation from unripe banana and plantains by sun-drying. In Uganda, dried slices known as "mutere" are prepared for storage from green bananas, the dried slices being either used directly for cooking or after grinding into a flour. "Mutere" is used chiefly as a famine reserve and does not feature largely in the diet under normal conditions.
In Gabon, plantains are sometimes made into dried slices which can be stored and used on long journeys, and plantains are used in Cameroon to prepare dried pieces which are stored and ground as needed into flour for use in cooking a paste known as "fufu". Dried green banana slices are also used in parts of South and Central America and West Indies for preparing flour.
The other nutritionally important product is beer which is a major product in Uganda, Rwanda and Burundi where green banana utilisation is particularly high.
8.8.1.2 Preservation Methods and Processes
Drying. - Both ripe and unripe bananas and plantains are normally peeled and sliced before drying, although banana figs are sometimes prepared from whole ripe fruit. Sun drying is the most widespread technique where the climate is suitable but drying in ovens or over fires is also practiced. In west Africa, plantains are often soaked and sometimes parboiled before drying. The slices of unripe fruit are normally spread out on bamboo frameworks; or a cemented area; or on a mat; or on a swept-bare patch of earth; or on a roof; or sometimes on stones outcrops or sheets of corrugated iron.
Oven-drying of ripe bananas is practiced in Polynesia as a mean of preserving the fruits, which are then wrapped in leaves and bound tightly to store until needed. In East Africa a method has been reported that involves drying the peeled bananas on a frame placed over a fire for 24 hr before drying in the sun, to accelerate the process.
8.8.1.3 Product stability and storage problems
There is little experimental data on the storage life of the traditionally made banana and plantain products.
8.8.1.4 Potential for scaling up of traditional processes to industrial level
Many banana products are now produced on an industrial scale, including the traditional banana figs and flour, and the processing techniques are described below. One of the main problems encountered has been the susceptibility of banana products to flavour deterioration and discoloration and in the past many products reaching the market have been of poor quality.
A great deal of research has been directed to overcoming these problems, although however good the resultant products are they cannot compare in flavour and other characteristics with the fresh banana fruit. Indeed, an important constraint on the large-scale development of banana processing is the lack of demand for banana products since the fresh fruit is available throughout the year in most parts of the tropical world.
The production of beer from banana and plantains has not been scaled up to an industrial level, and while an important product in localised areas of tropical Africa, the market is rapidly declining in favour of European-type brews produced locally.
8.8.2 Industrial processing
8.8.2.1 Products and uses
The main commercial products made from bananas are canned or frozen purée, dried figs, banana powder, flour, flakes, chips (crisps), canned slices and jams.
Banana products can be divided roughly into two types - those for direct consumption, such as figs, and those for use in food manufacturing industry, for example purées and powder.
Banana figs, or fingers as they are sometimes known, are usually whole, peeled fruit carefully dried so as to retain their shape, although sometimes the fruit is sliced or halved to facilitate drying. Banana and plantain chips (crisps) are thinly sliced pieces of fruit fried in oil and eaten as a snack like potato chips (crisps).
The main use of canned slices is in tropical fruit salads. Banana flakes are used as a flavouring or in breakfast cereals. Banana purée find use mainly in the production of baby foods. Banana flour is said to be highly digestible and is used in baby and invalid foods, but can also be used in the preparation of bread and beverages.
Banana powder is used chiefly in the baking industry for the preparation and fillings for cakes and biscuits and is also used for invalid and baby foods.
8.8.2.2 Processing technology
In general, to obtain a good-quality product from ripe-bananas the fruit is harvested green and ripened artificially under controlled conditions at the processing factory. After ripening, the banana hands are washed to remove dirt and any spray residues, and peeled. Peeling is almost always done by hand using stainless steel knives, although a mechanical peeler for ripe bananas has been developed, capable of peeling 450 Kg of fruit per hour (Banana Bulletin, 1974).
The peeling of unripe bananas and plantains is facilitated by immersing the fruit in hot water. For example, immersion in water at 70-75 ° C for 5 min. has been suggested as an aid for peeling green bananas for flour production, while the peeling of green bananas for freezing has been facilitated by immersion in water at 93° C for 30 min.
8.8.2.2.1 Banana figs
Fully ripe fruits with a sugar content of about 19.5% are used and are treated with sulphurous acid after peeling, then dried as soon as possible afterwards. Various drying systems have been described using temperatures between 50 and 82° C for 10 to 24 hr to give a moisture content ranging from 8 to 18% and a yield of dried figs of 12 to 17% of the fresh banana on the stem.
One factory in Australia uses a solar heat collector on the roof to augment the heat used for drying bananas. Bananas can also be dried by osmotic dehydration, using a technique which involves drawing water from 1/4-in. thick banana by placing them in a sugar solution of 67 to 70 deg. Brix for 8 to 10 hr. followed by vacuum-drying at 65 to 70° C, at a vacuum of 10 mm Hg for 5 hr. The moisture content of the final products is 2.5% or less, much lower than that achieved by other methods.
8.8.2.2.2 Banana purée
Banana purée is obtained by pulping peeled, ripe bananas and then preserving the pulp by one of three methods: canning aseptically, acidification followed by normal canning, or quick-freezing.
The bulk of the world's purée is processed by the aseptic canning technique. Peeled, ripe fruits are conveyed to a pump which forces them through a plate with 1/4-in. holes, then onto a homogeniser, followed by a centrifugal de-aerator, and into a receiving tank with 29in. vacuum, where the removal of air helps prevent discoloration by oxidation.
The purée is then passed through a series of scraped surface heat exchangers where it is sterilised by steam, partially cooled, and finally brought to filling temperature. The sterilised purée is then packed aseptically into steam-sterilised cans which are closed in a steam atmosphere.
8.8.2.2.3 Banana slices
Several methods for canning of banana slices in syrup are used. Best-quality slices are obtained from fruit at an early stage of ripeness. The slices are processed in a syrup of 25 deg. Brix with pH about 4.2, and in some processes calcium chloride (0.2%) or calcium lactate (0.5%) are added as firming agents.
A method for producing an intermediate-moisture banana product for sale in flexible laminate pouches has been developed. Banana slices are blanched and equilibrated in a solution containing glycerol (42.5%), sucrose (14.85%), potassium sorbate (0.45%), and potassium metabisulphite (0.2%) at 90 deg. C for 3 min. to give a moisture content of 30.2%.
8.8.2.2.4 Banana powder
In the manufacture of banana powder, fully ripe banana pulp is converted into a paste by passing through a chopper followed by a colloid mill. A 1 or 2 % sodium metabisulphite solution is added to improve the colour of the final product. Spray- or drum-drying may be used, the latter being favoured as all the solids are recovered.
A typical spray dryer can produce 70 kg powder per hour to give yields of 8 to 11% of the fresh fruit, while drum-drying gives a final yield of about 13% of the fresh fruit. In the latter method the moisture content is reduced to 8 to 12 % and then further decreased to 2 % by drying in a tunnel or cabinet dryer at 60° C.
8.8.2.2.5 Banana flour
Production of flour has been carried out by peeling and slicing green fruit, exposure to sulphur dioxide gas, then drying in a counter-current tunnel dryer for 7 to 8 hr. with an inlet temperature of 75° C and outlet temperature of 45° C, to a moisture content of 8%, and finally milling.
8.8.2.2 6 Banana chips (crisps)
Typically, unripe peeled bananas are thinly sliced, immersed in a sodium or potassium metabisulphite solution, fried in hydrogenated oil at 180 to 200° C, and dusted with salt and an antioxidant.
Alternatively, slices may be dried before frying and the antioxidant and salt added with the oil. Similar processes for producing plantain chips have been developed.
8.8.2.2.7 Banana beverages.
In a typical process, peeled ripe fruit is cut into pieces, blanched for 2 min. in steam, pulped and pectolytic enzyme added at a concentration of 2 g enzyme per 1 kg pulp, then held at 60 to 65° C and 2.7 to 5.5 pH for 30 min.
In a simpler method, lime is used to eliminate the pectin. Calcium oxide (0.5%) is added to the pulp and after standing for 15 min. this is neutralised giving a yield of up to 88% of a clear, attractive juice. In another process banana pulp is acidified, and steam-blanched in a 28-in Hg vacuum which ensures disintegration and enzyme inactivation. The pulp is then conveyed to a screw press, the resulting purée diluted in the ratio 1:3 with water, and the pH adjusted by further addition of citric acid to 4.2 to 4.3, which yields an attractive drink when this is centrifuged and sweetened.
8.8.2.2.8 Jam
A small amount of jam is made commercially by boiling equal quantities of fruit and sugar together with water and lemon juice, lime juice or citric acid, until setting point is reached.
8.8.2.3. Product stability and spoilage problems
All dried banana products are very hydroscopic and susceptible to flavour deterioration and discoloration, but this can be overcome to some extent by storing in moisture-proof containers and sulphiting the fruit before drying to inactivate the oxidases.
The dried products are also liable to attack by insects and moulds if not stored in dry conditions, although disinfestation after drying by heating for 1 hr to 80° C or by fumigation with methyl bromide ensures protection against attack. Banana powder is said to be stored for up to a year commercially and flakes have been stored in vacuum-sealed cans with no deterioration in moisture, colour or flavour for 12 months.
Banana chips tend to have a poor storage life and to become soft and rancid. However, chips treated with an antioxidant have been stored satisfactorily at room temperature in hermetically sealed containers up to 6 months with no development of rancidity.
8.8.2.4. Quality Control Methods
In general a good quality product is obtained if fruit is harvested at the correct stage of maturity and, where appropriate, ripened under controlled conditions. For example, in the case of banana figs, the fruit should be fully mature (sugar content of 19.5% or above) or the final
Alternatively, slices may be dried before frying and the antioxidant and salt added with the oil. Similar processes for producing plantain chips have been developed.
8.8.2.2.7 Banana beverages.
In a typical process, peeled ripe fruit is cut into pieces, blanched for 2 min. in steam, pulped and pectolytic enzyme added at a concentration of 2 g enzyme per 1 kg pulp, then held at 60 to 65° C and 2.7 to 5.5 pH for 30 min.
In a simpler method, lime is used to eliminate the pectin. Calcium oxide (0.5%) is added to the pulp and after standing for 15 min. this is neutralised giving a yield of up to 88% of a clear, attractive juice. In another process banana pulp is acidified, and steam-blanched in a 28-in Hg vacuum which ensures disintegration and enzyme inactivation. The pulp is then conveyed to a screw press, the resulting purée diluted in the ratio 1:3 with water, and the pH adjusted by further addition of citric acid to 4.2 to 4.3, which yields an attractive drink when this is centrifuged and sweetened.
8.8.2.2.8 Jam
A small amount of jam is made commercially by boiling equal quantities of fruit and sugar together with water and lemon juice, lime juice or citric acid, until setting point is reached.
8.8.2.3. Product stability and spoilage problems
All dried banana products are very hydroscopic and susceptible to flavour deterioration and discoloration, but this can be overcome to some extent by storing in moisture-proof containers and sulphiting the fruit before drying to inactivate the oxidases.
The dried products are also liable to attack by insects and moulds if not stored in dry conditions, although disinfestation after drying by heating for 1 hr to 80° C or by fumigation with methyl bromide ensures protection against attack. Banana powder is said to be stored for up to a year commercially and flakes have been stored in vacuum-sealed cans with no deterioration in moisture, colour or flavour for 12 months.
Banana chips tend to have a poor storage life and to become soft and rancid. However, chips treated with an antioxidant have been stored satisfactorily at room temperature in hermetically sealed containers up to 6 months with no development of rancidity.
8.8.2.4. Quality Control Methods
In general a good quality product is obtained if fruit is harvested at the correct stage of maturity and, where appropriate, ripened under controlled conditions. For example, in the case of banana figs, the fruit should be fully mature (sugar content of 19.5% or above) or the final product is liable to be tough and lacking in flavour. However, if over-ripe fruit is used, the figs tend to be sticky and dark in colour, so the fruit must be fully yellow but still firm.
For banana flour, which is prepared from unripe bananas, the fruit is harvested at three-quarters the full-ripe stage and is processed within 24 hr. prior to the onset of ripening. If less mature fruit is used, the flour tastes slightly astringent and bitter due to the tannin content. Bananas harvested between 85 and 95 days after the emergence of the inflorescence, with a pulp-to-peel ratio of about 1.7, were considered to be most suitable for the deep-fat frying.
Other criteria suggested for assessing maturity were beta-carotene and reducing sugar content, both of which increase with increasing maturity and pH which decreases as the fruit ripens, and these should be, respectively, about 2000 µg/100 g, less than 1.5% and 5.8 or above. Browning was found to occur if the sugar content was higher than 1.5%. The determination of crude fat in processed chips is also considered to be a necessary quality control measure.
It is important to remove all impurities prior to processing of products, and this is done by washing to remove dirt and spray residues and control on the processing line so that substandard fruit can be removed.
8.8.3 Preparation methods for fresh bananas and plantains
The main ways of preparing fresh bananas for consumption are boiling or steaming, roasting or baking and frying. Boiling followed by pounding into "fufu" is also widely adopted in certain areas of the tropics.
8.8.3.1 Boiling or steaming
Plantains and bananas are often prepared simply by boiling in water, either in their peel or after peeling, and either ripe or unripe; if unripe, the fruit is scraped thoroughly after peeling to remove all traces of fibrous material. The boiled fruit is eaten alone or more usually accompanied by a sauce. This preparation technique is widely used in West Africa.
8.8.3.2 Roasting or baking.
Unpeeled or peeled fruit, either ripe or unripe, is roasted simply by placing in the ashes of a fire or in an oven. This method is widely used in West Africa, East Africa and the South Pacific islands. For example, ripe plantains are placed unpeeled in an oven and when partly brown and tender, removed and peeled, then replaced in the oven and roasted evenly.
8.8.3.3 Frying.
Ripe or unripe plantains or bananas are often peeled, sliced and cooked in oil, particularly in West Africa and in parts of South America and the West Indies. Similar products are also made in East Africa. Typically, ripe plantains are peeled, cut into slices or split lengthways, and fried in palm oil or with groundnut oil, the pieces being served either hot with a sauce or with fried eggs, or cold as a snack.
8.8.3.4 Pounding.
Pounding is a process, used particularly in West Africa, for preparing most perishable staple food crops including plantains, cassava, yams and cocoyams to obtain a paste or dough known as "fufu" (also spelled "foofoo", "foutou", "foufou"). The plantains are peeled or boiled and peeled after boiling and pounded in a wooden mortar, the resulting paste normally being eaten with soup or a spiced sauce of meat and vegetables, but sometimes after wrapping in leaves and steaming.
