ANNEX I

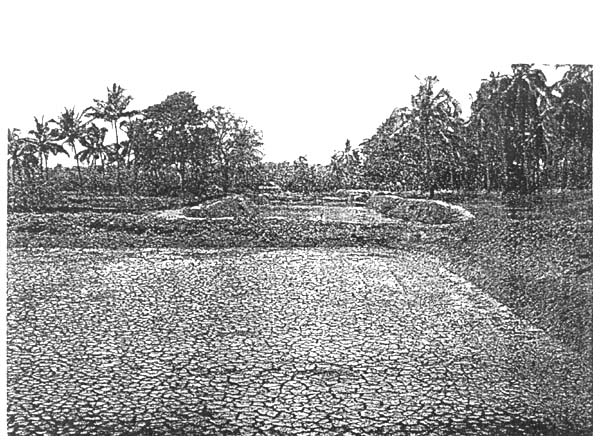

EXAMPLE OF SOIL PONDS (DRAINED)

(Source: Milne, 1972)

ANNEX II

ANNEX II/1
LAYOUT OF FISH FARM : PONDS

Ponds:	Number	: 04
	Size	: 50 × 100 m
	Depth	: 01 m
	Construction	: natural sandy clay soil
	Pumps:	: 2 ×10HP

ANNEX II/2
LAYOUT OF FISH FARM : RACEWAYS

Raceways:	Number	: 04
	Size	: 10 × 100 m
	Depth	: 1 m
	Construction	: natural soil and liner
	Pumps:	: 2 × 30 HP

ANNEX III

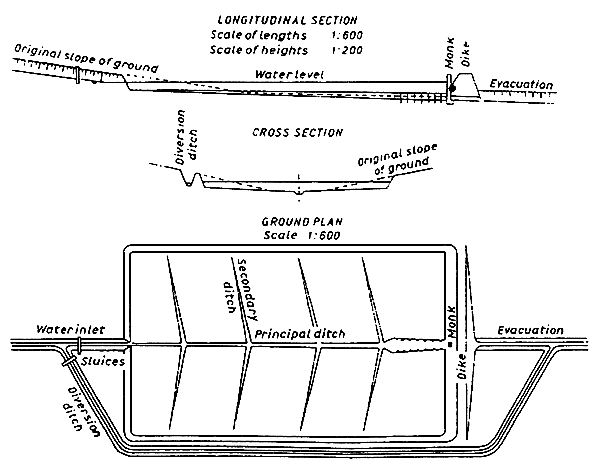

CROSS SECTION OF A FISH POND

(Source: Huet, 1970)

ANNEX IV
EXAMPLE OF PONDS AND DRAINAGE CHANNEL

(Source: Milne, 1972)

ANNEX V
CONSTRUCTION OF A MONK

Materials:	25 metres iron bar Æ 12 mm
	2 bags of cement / sand / gravel

concrete preparation:	1 vol. cement
	2 vol. sand
	2 vol. gravel
	Fresh water

(Source: Coche & Muir, 1992)

ANNEX VI

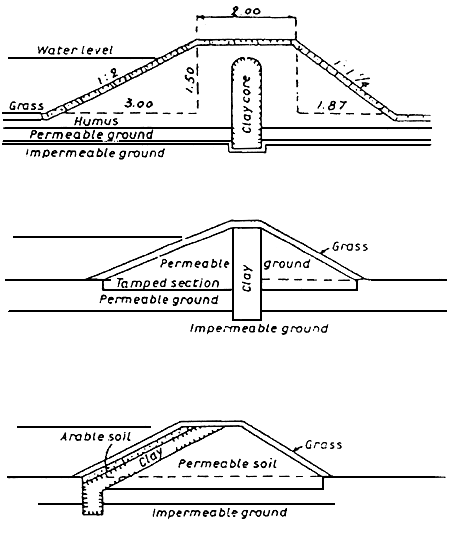

DIFFERENT TYPES OF SOIL DYKES

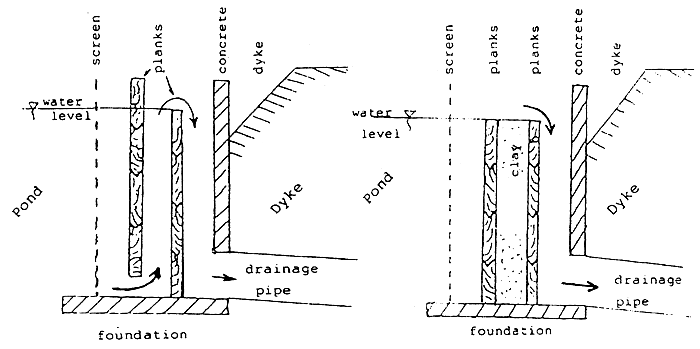

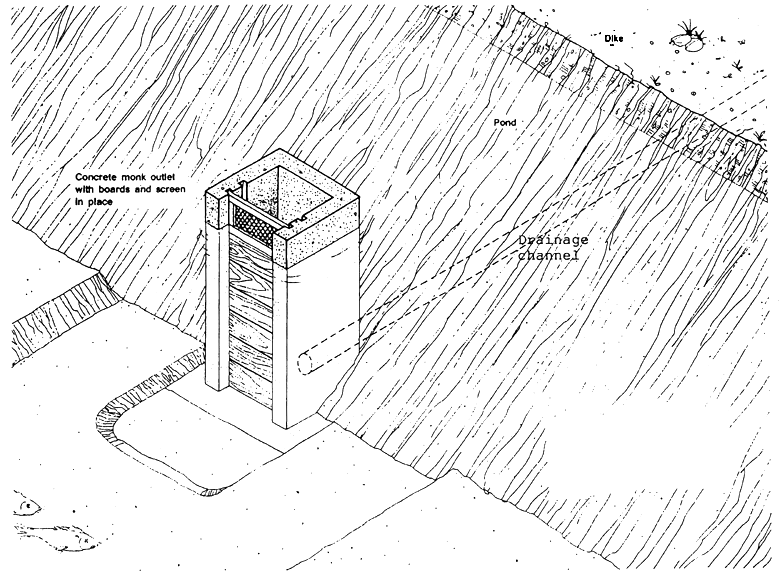

DRAINAGE DEVICE OR “MONK”

(Source: Huet, 1970)

ANNEX VII
LOCATION OF MONK IN DYKE

(Source: Coche & Muir, 1992)

ANNEX VIII

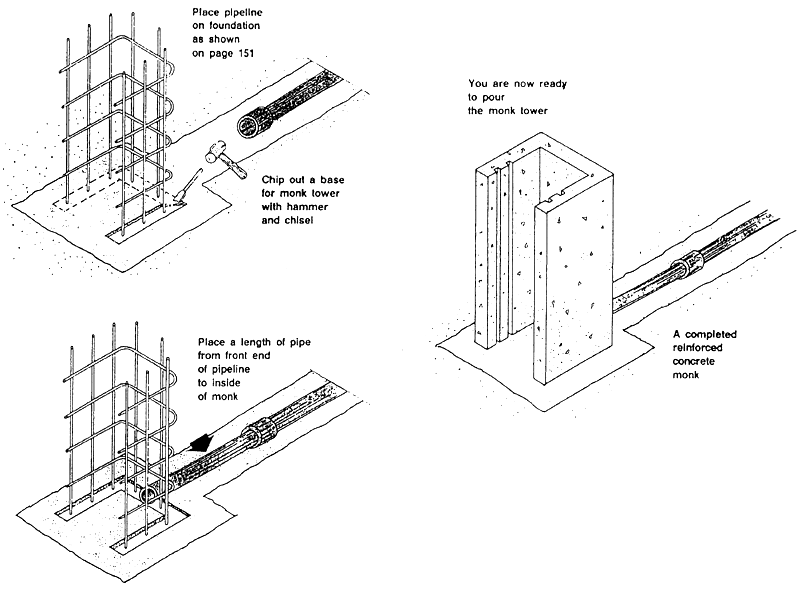

DETAILS OF MONK

(Source: MEDRAP I training materials)

ANNEX IX

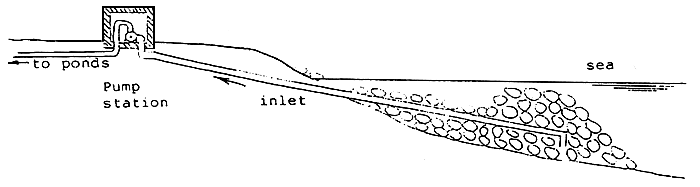

SEA WATER INTAKE SYSTEMS

a) Submersible Pump

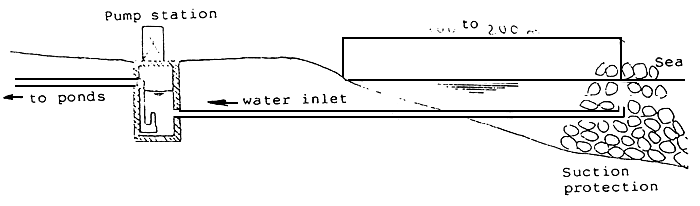

b) Surface Pump

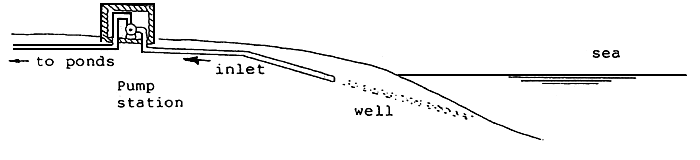

c) Surface Pump and Well

(Source: MEDRAP I training materials)

ANNEX X

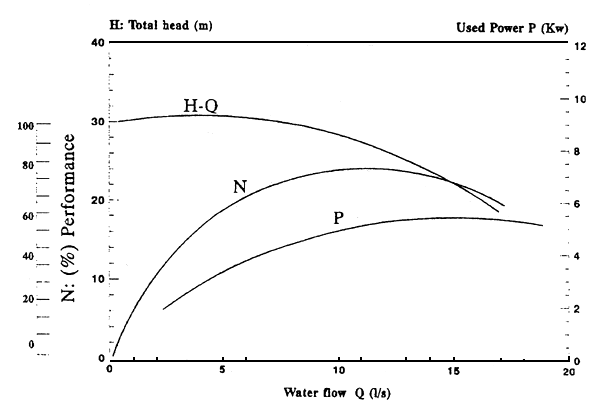

CHARACTERISTICS OF A CENTRIFUGAL PUMP

(Source: MEDRAP I training materials)

ANNEX XI
PADDLE TYPE AERATORS IN OPERATION

(Source: Huet, 1970)

ANNEX XII

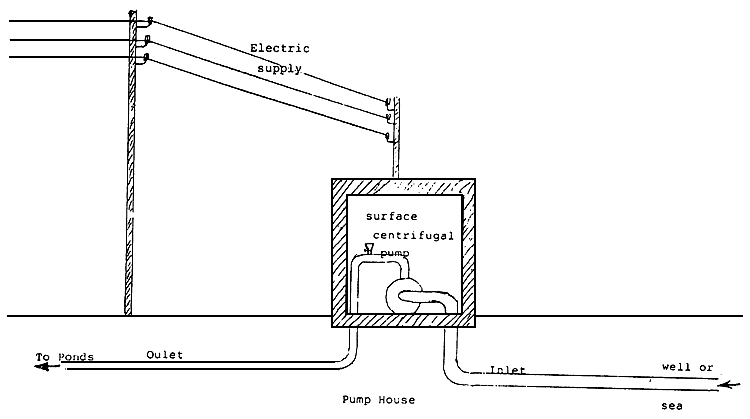

STANDARD LAYOUT FOR PUMP INSTALLATION

(Source: MEDRAP I training materials)

ANNEX XIII
WORK PROGRAMME

Month	Fingerling	Stocking	Feed	Harvest	General
January			Order 5.5T	Pond 1	Repair Pond 1
February					Maintenance
March	Order 20,000	Pond 1 20,000
April			Order 5.5 T	Pond 2	Repair Pond 2
May	Sort out Pond 1	P1: 10,000 P2: 10,000
June					Maintenance
July			Order 5.5 T	Pond 3	Repair Pond 3
August					Maintenance
September					Maintenance
October			Order 5.5 T	Pond 4	Repair Pond 4
November	Order 20,000	P3: 10,000 P4: 10,000
December					Maintenance
January				Pond 1	Repair Pond 1

ANNEX XIV
FEED FORMULAE

Feed Staff		Sea Bass		Sea Bream
Lipid		9/10%		9/11 %
Protein with at least:		50/69 %		44/55 %
	Lysine		5.0		5.0
	Methionine		4.0		4.0
Avail. Phosphorous				> 0.7 %
Essential components: Marine Prot.				> ½ %
Vitamins
	Thiamin HCI		40 mg/kg dry diet	same as for Bass
	B2		40
	Pyridoxine HCI		40
	Nicotine AC.		150
	Cal. Pantoth.		100
	Folic Ac.		5
	Biotin		1
	B12		002
	Inositol		800
	Choline Chl.		3500
	Sodium Ascorb.		2000
	Vit. E		200
	Vit. K		80
	Vit. A		5000 IU
	Vit. D		1000 IU
Metals
	ZN		40	same as for Bass
	MN		20
	Cu		4
	I		0.8
	Co.		0.12

Example of sea bass feed

Ground Fresh Fish	46%
Fish Meal (56 % Protein)	25%
Soymeal	10%
Meat & Bone Meal	4%
Wheat Pollards	4%
Fish Oil	4%
Seaweed Binder	5%
Mussel Meal	2%
Vitamin Mix	1%
Cost: between $ 1.00 to 1.50 / kg

ANNEX XV

ANNEX XV/1
GROSS ESTIMATED COST/EARNINGS OF PROTOTYPE POND FISH FARM *

			Units Required	Estimated Unit Price	Estimated Total Price	Estimated Total Amount
Investment (10 years)	Land		3ha	(ownership assumed)
	Civil work				LD 2,000
	Cement, Ballast, Sand and Iron bars for monks				LD 2,000	LD 18,416
	Store and house				LD 5,000	(over 10 years)
	Pumps		2	LD 1,000	LD 2,000
	Aerators		4	LD 500	LD 2,000
	Sea water intake				LD 3,000
	PVC Pipes:	200 mm (monks)	10 metre	LD 40	LD 160
		150 mm (suction)		LD 100	LD 1,000
		100 mm (pond inlet)		LD 20	LD 250	LD 1,841
	Electricity connections				LD 1,000	(one year)
Local inputs (per year)	Labour:	Cooperative members:	3 ×12 m/m	LD 300/month	LD 10,800	LD 19,728
		Casual labour	24 m/m	LD 300/month	LD 7,200
	Electricity		86,400 units	LD 0.020/Kw/h	LD 1,728
External inputs	Fingerlings		40,000 pcs	LD 0.268	LD 10,714	LD 18,571
External inputs	Feed		22 tons	LD 357	LD 7,857	LD 18,571
Output	Table-size sea bass/bream		9,000 Kg.	LD 5.350	LD 48,214	LD 48,214

*NOTES:	Inputs / year:	LD 41,140	} }ALL FIGURES CITED ARE PRELIMINARY ROUGH ESTIMATES & SUBJECT TO FURTHER VERIFICATION. }
	Outputs / year:	LD 48,214
	Earnings / year:	LD 7,074
	Rent for land is not included.

ANNEX XV/2
GROSS ESTIMATED COST/EARNINGS OF PROTOTYPE RACEWAY FISH FARM *

			Units Required	Estimated Unit Price	Estimated Total Price	Estimated Total Amount
Investment (10 years)	Land		1 ha	(ownership assumed)
	Civil work				LD 1,000
	Cement, Ballast, Sand and Iron bars for monks				LD 2,000	LD 19,410 (over 10 years)
	Store and house				LD 5,000
	Pumps		2	LD 1,000	LD 6,000
	Sea water intake				LD 3,000
	PVC Pipes:	200 mm (monks)	10 metre	LD 40	LD 160
		150 mm (suction)		LD 100	LD 1,000
		100 mm (pond inlet)		LD 20	LD 250	LD 1,841
	Electricity connections				LD 1,000	(one year)
Local inputs (per year)	Labour:	Cooperative members	3 ×12 m/m	LD 300/month	LD 10,800	LD 19,728
		Casual labour	24 m/m	LD 300/month	LD 7,200
	Liner (plastic for green house)
	Electricity		86,400 units	LD 0.020/Kw/h	LD 1,600
External inputs	Fingerlings		40,000 pcs	LD 0.268	LD 5,184	LD 18,571
External inputs	Feed		22 tons	LD 357	LD 10,714	LD 18,571
Output	Table-size sea bass/bream (for export)		9,000 Kg.	LD 5.350	LD 48,214	LD 48,214

*NOTES:	Inputs / year:	LD 43,355	} } ALL FIGURES CITED ARE PRELIMINARY ROUGH ESTIMATES & SUBJECT TO FURTHER VERIFICATION. }
	Outputs / year:	LD 48,214
	Earnings / year:	LD 4,859
	Rent for land is not included.
