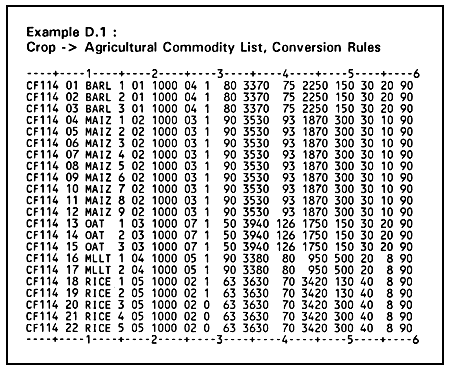

D.1 CF-Card: Conversion from Crop -> Agricultural Production List
| Card Position | Contents |
| 1 – 2 | card label |
| 3 – 5 | country code |
| 6 – 8 | crop sequence number |
| 9 – 16 | crop name, short text label |
| 19 | aggregation index from crop list to agricultural commodity list |
| 20 – 24 | aggregation weight to convert from crop list to agricultural commodity list |
| 25 – 27 | technology matrix look-up index |
| 28 – 29 | mono-culture crop group index |
| 30 – 32 | extraction rate, i.e. share of crop yield available for food consumption |
| 33 – 37 | calorie content of harvested product (Kcal per kg) |
| 38 – 41 | protein content of harvested product (gram protein per 100 gram) |
| 42 – 46 | crop producer price |
| 47 – 50 | crop residues production (dry matter) per unit of crop yield |
| 51 – 53 | crop residues uptake and utilization factor, i.e. upper bound on share of crop residues available for livestock feeding |
| 54 – 56 | crop by-product production (dry matter) per unit of crop yield |
| 57 – 59 | crop by-products uptake and utilization factor, i.e. upper bound on share of crop by-products available for livestock feeding |

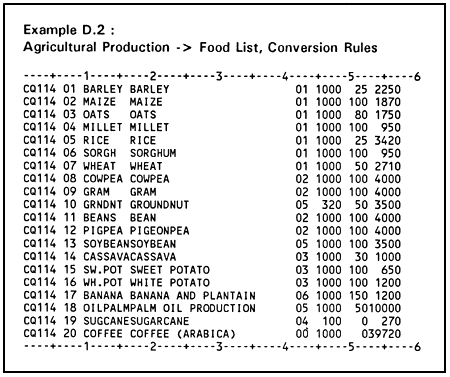

D.2 CQ-Card: Conversion from Agricultural Production - > Food List
| Card Position | Contents |
| 1 – 2 | card label |
| 3 – 5 | country code |
| 6 – 8 | commodity sequence number |
| 9 – 16 | commodity name, short text label |
| 17 – 40 | commodity name, long text label |
| 41 – 43 | aggregation index from agricultural production list to aggregate food list |
| 44 – 48 | aggregation weight to convert from agricultural production list to aggregate food list |
| 49 – 52 | waste share, i.e. share of production lost through harvesting and marketing |
| 53 – 57 | price of agricultural product |

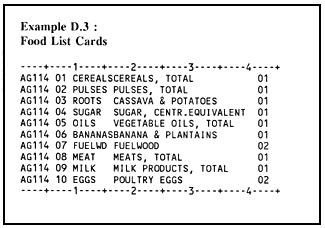

D.3 AG-Card: Food List Cards
| Card Position | Contents |
| 1 – 2 | card label |
| 3 – 5 | country code |
| 6 – 8 | food aggregate, sequence number |
| 9 – 16 | food aggregate, short text label |
| 17 – 40 | food aggregate, long text label |
| 41 – 43 | food priority level: used only when automatic constraint generation from specified per caput demand is requested in LP (control parameter FLCPP in file CTRL$$$) |

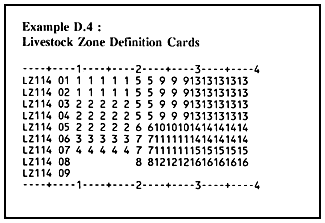

D.4 LZ-Card: Livestock Zone Definition Records
| Card Position | Contents |
| 1 – 2 | card label |
| 3 – 5 | country code |
| 6 – 8 | thermal zone code |
| 9 | not used |
| 10 – 24 | for each LGP (1 to MLGP=15), the livestock zone corresponding to the corresponding pair of thermal zone and LGP codes is indicated |

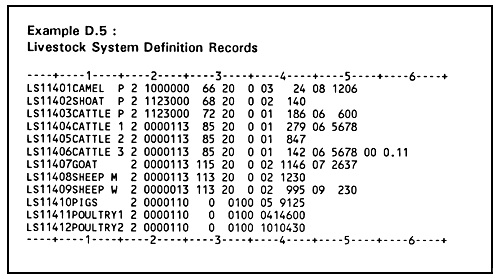

D.5 LS-Card: Livestock System Definition Records
| Card Position | Contents |
| 1 – 2 | card label |
| 3 – 5 | country code |
| 6 – 7 | livestock system sequence number |
| 8 – 15 | livestock system name |
| 16 | not used |
| 17 | input level indicator 1 = low level, 2 = intermediate level, 3 = high level of input |
| 18 | not used |
| 19 – 25 | suitability rating by livestock zone |
| 26 – 29 | total feed requirements (kg dry weight per herd TLU per day) |
| 30 – 32 | maximum share of crop residues and by-products in feed diet |
| 33 – 35 | requirement of primary product (cereals) in feed diet (kg per herd TLU per day) |
| 36 – 38 | livestock product sequence number |
| 39 – 43 | output of indicated livestock product (kg per herd TLU per year) |
| 44 – 46 | livestock product sequence number |
| 47 – 51 | output of indicated livestock product (kg per herd TLU per year) |
| 52 – 54 | livestock product sequence number |
| 55 – 59 | output of indicated livestock product (kg per herd TLU per year) |
| 60 – 62 | livestock product sequence number |
| 63 – 67 | output of indicated livestock product (kg per herd TLU per year) |

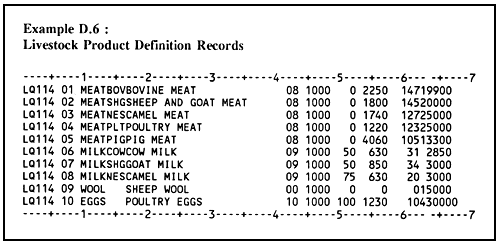

D.6 LQ-Card: Livestock Product Definition Record
| Card Position | Contents |
| 1 – 2 | card label |
| 3 – 5 | country code |
| 6 – 8 | livestock system sequence number |
| 9 – 16 | product name, short text label |
| 17 – 40 | product name, long text label |
| 41 – 43 | aggregation index from livestock product list to aggregate food list |
| 44 – 58 | aggregation weight to convert from livestock product list to aggregate food list |
| 49 – 52 | waste share, i.e. share of production lost through marketing |
| 53 – 57 | energy content of livestock product (Kcal per kg) |
| 58 – 62 | protein content of livestock product (gram protein per 100 gram) |
| 63 – 67 | livestock product farm price |

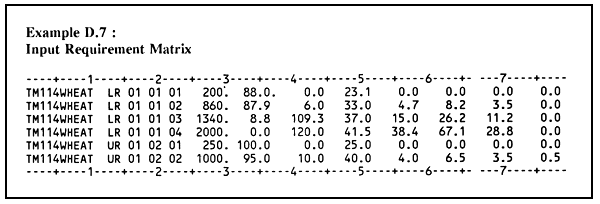

D.7 TM-Cards : Technology Matrix
| Card Position | Contents |
| 1 – 2 | card label |
| 3 – 5 | country code |
| 6 – 11 | crop group, text label |
| 12 – 14 | land class, text label |
| 15 – 17 | crop group index |
| 18 – 20 | land class type |
| 21 – 23 | table function input level code |
| 24 – 30 | yield level (kg per ha) |
| 31 – 37 | traditional seed required (kg per ha) |
| 38 – 44 | improved seed required (kg per ha) |
| 45 – 51 | power required (man day equiv. per ha) |
| 52 – 58 | N fertilizer required (kg N per ha) |
| 59 – 65 | P fertilizer required (kg P per ha) |
| 66 – 72 | K fertilizer required (kg K per ha) |
| 73 – 79 | plant protection (US dollars per ha) |
