5. FISHING EXPERIMENTS

A record of all fishing stations with total catch and the main species caught is shown in Appendix II.

A total of 131 hauls were made. Their distribution on areas and the range and mean value of the five highest catches in the bottom trawls were (in tonnes per hour):

Area	Number hauls		Catch 5	highest dem.
	Pelagic	Demersal	Range	Mean
Baia dos Tigres	6	6	0.1-4.2	1.4
Porto Alexandre-Benguela	7	2	0.3-0.5	0.4
Benguela- Luanda	38	19	0.4-1.3	0.9
Luanda - Cabinda	20	33	0.4-1.5	0.8

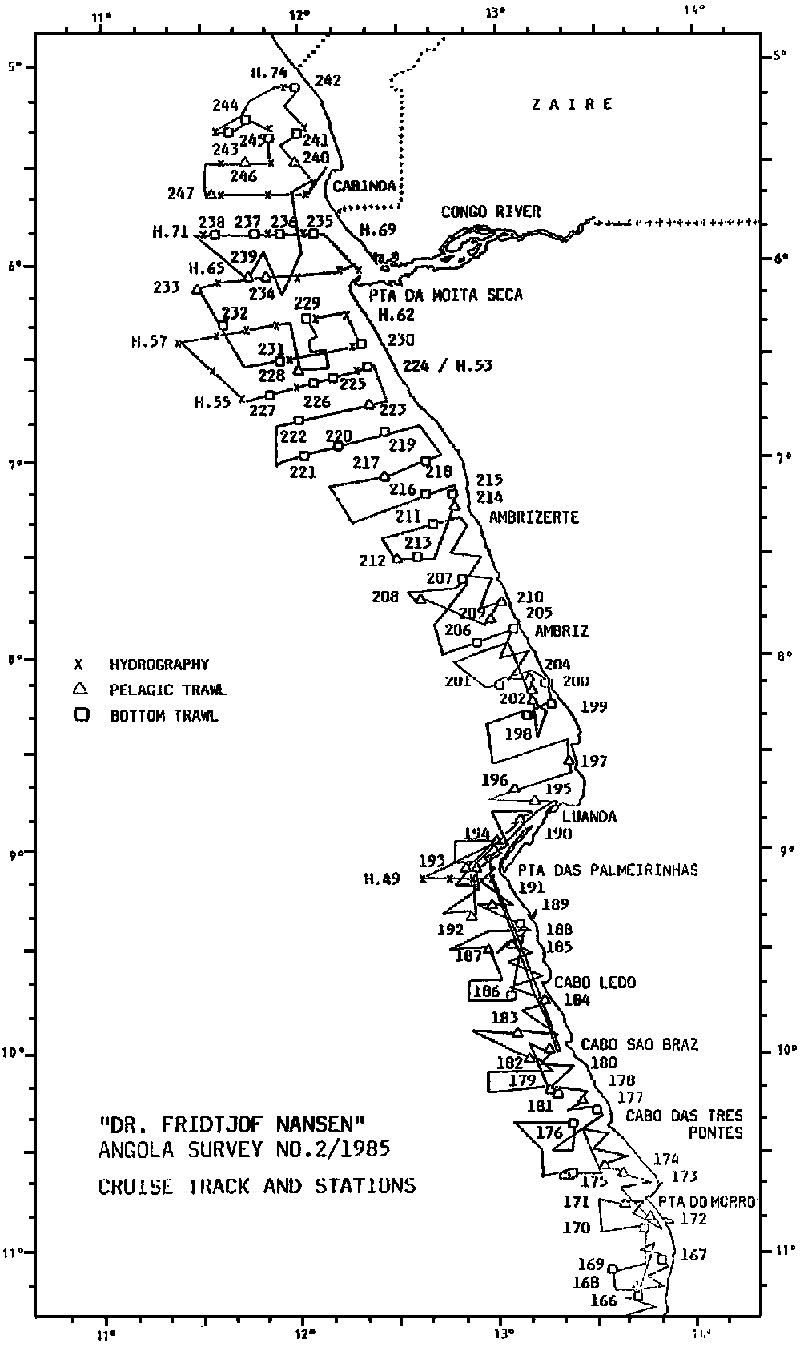

Figure 1.

Figure 2.

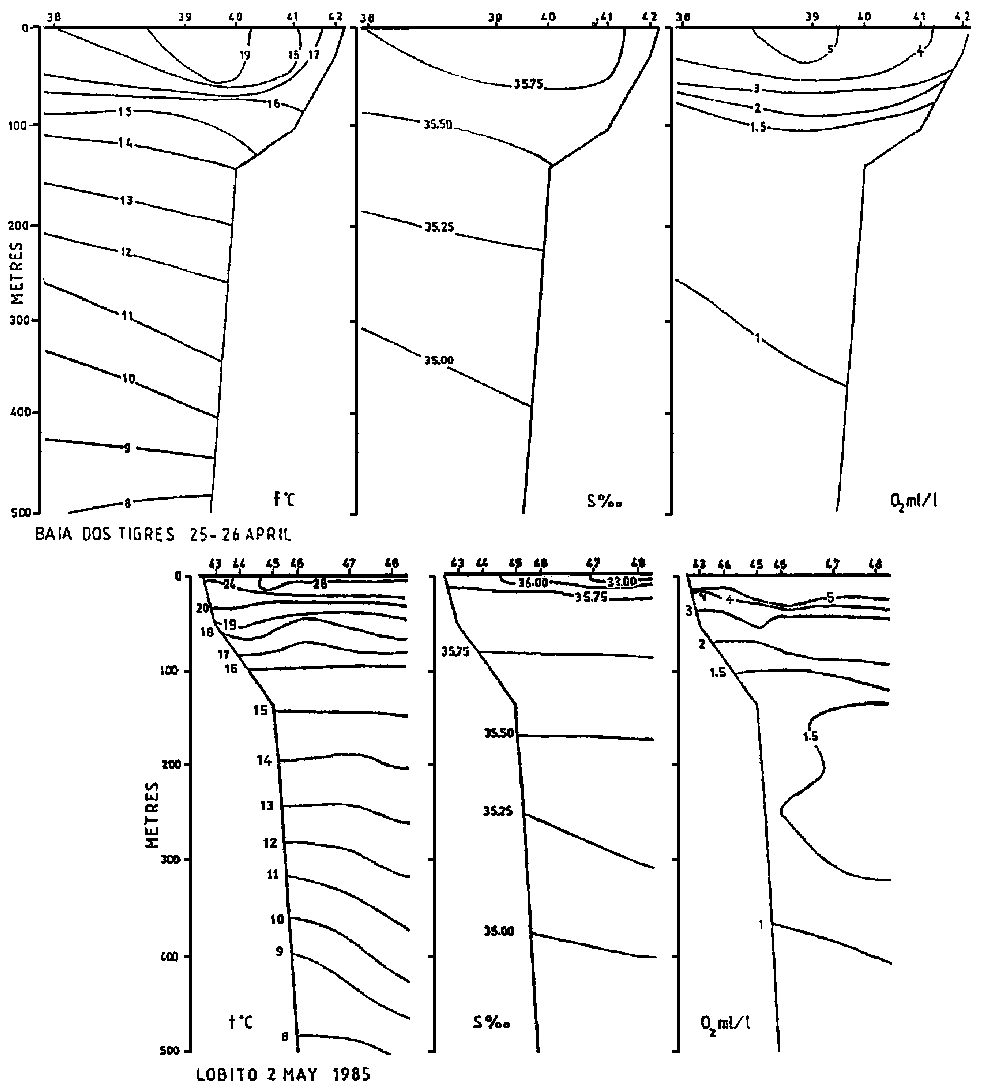

Figure 3. Distribution of temperature, salinity and oxygen in the hydrographical sections off Baia Dos Tigres and Lobito.

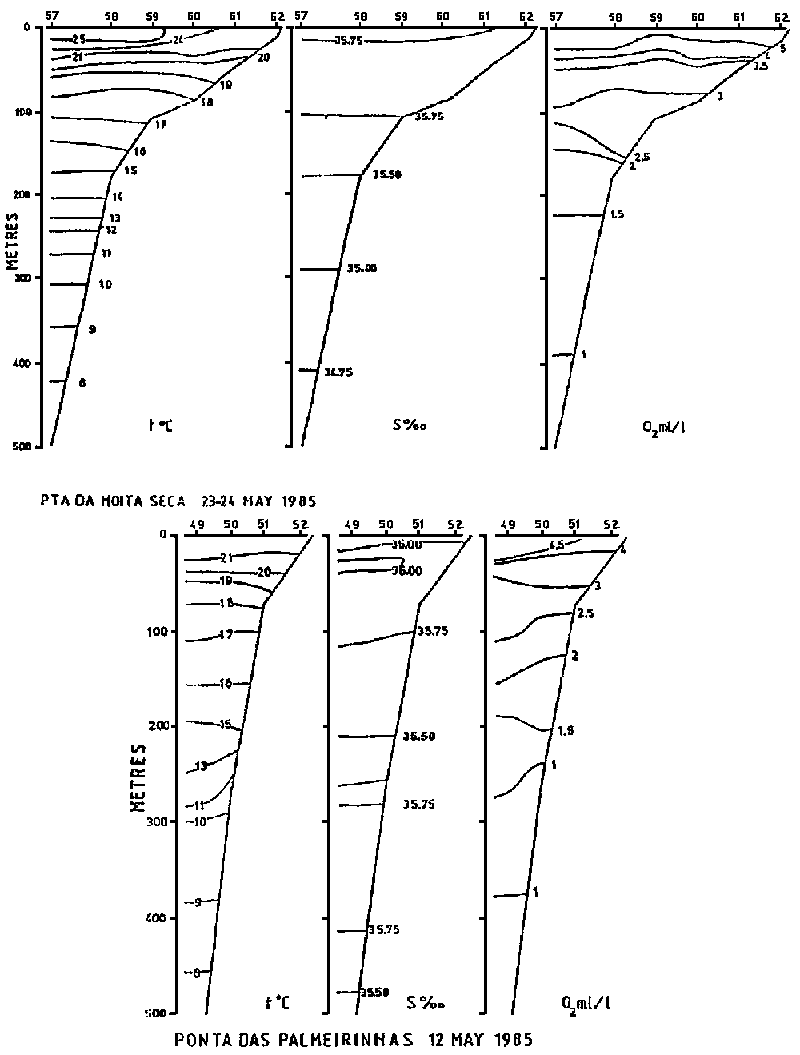

Figure 4. Distribution of temperature, salinity and oxygen in the hydrographical sections off Pta. da Moita Seca and Pta das Palmerinhas.

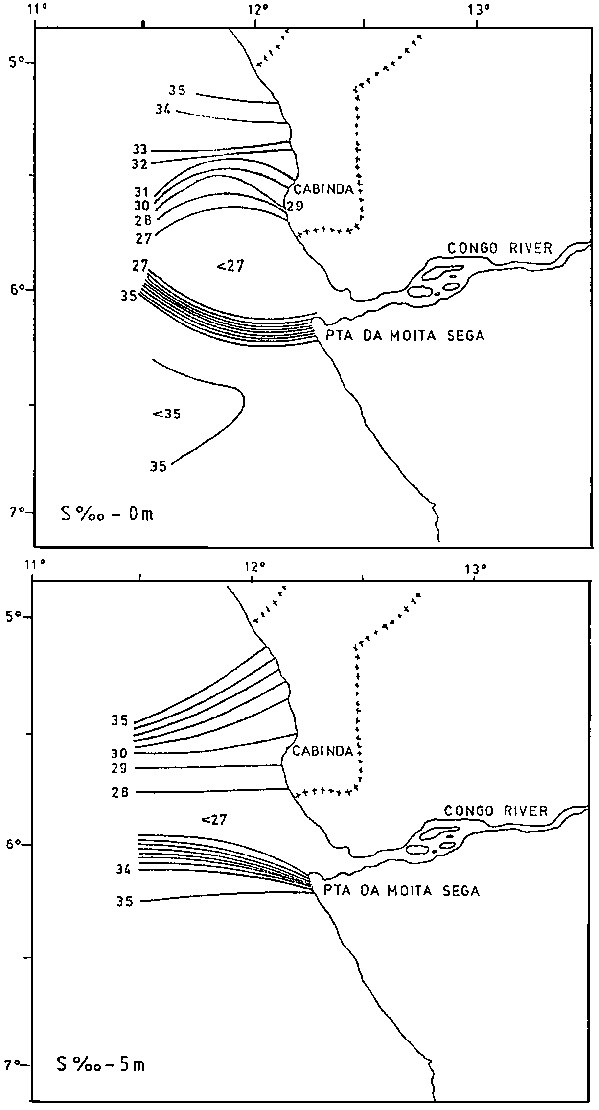

Figure 5. Distribution of salinity off the Congo River in May 1985.

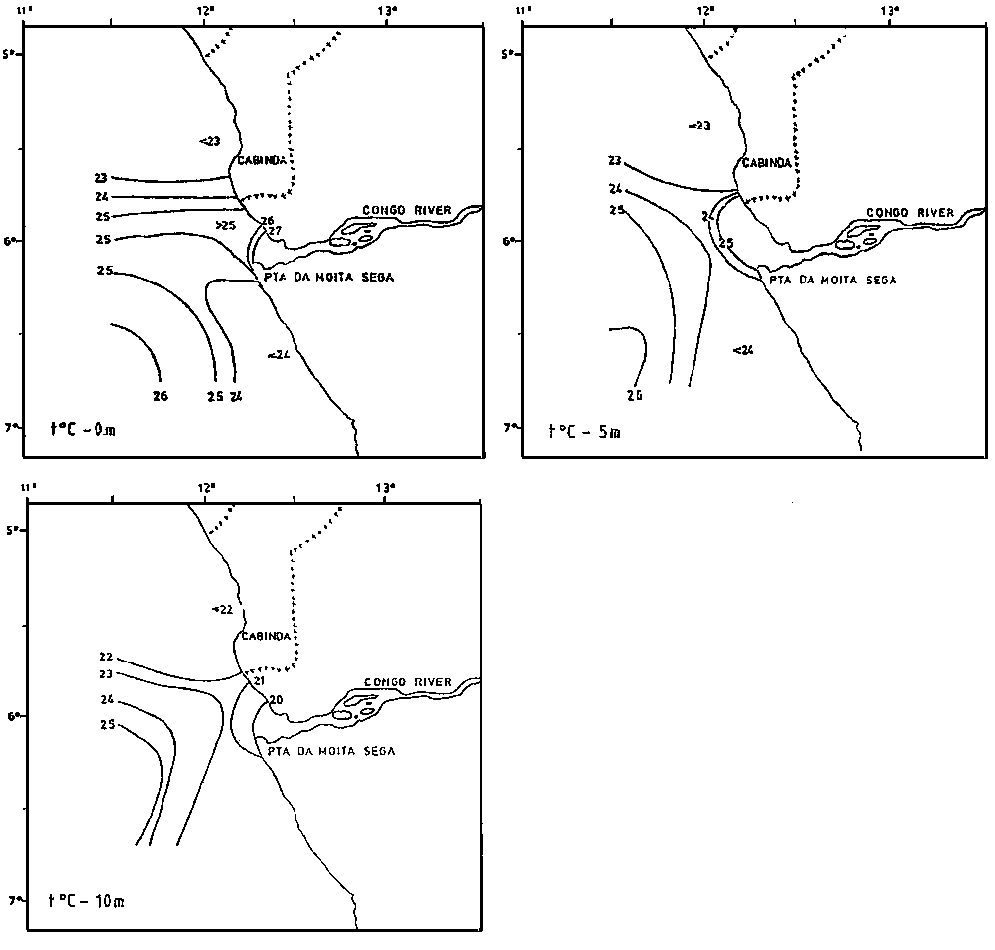

Figure 6. Distribution of temperature off the Congo-River in May 1985.

Figure 7.

Figure 8.

Figure 9.

Figure 10.

Figure 11.

Figure 12.
