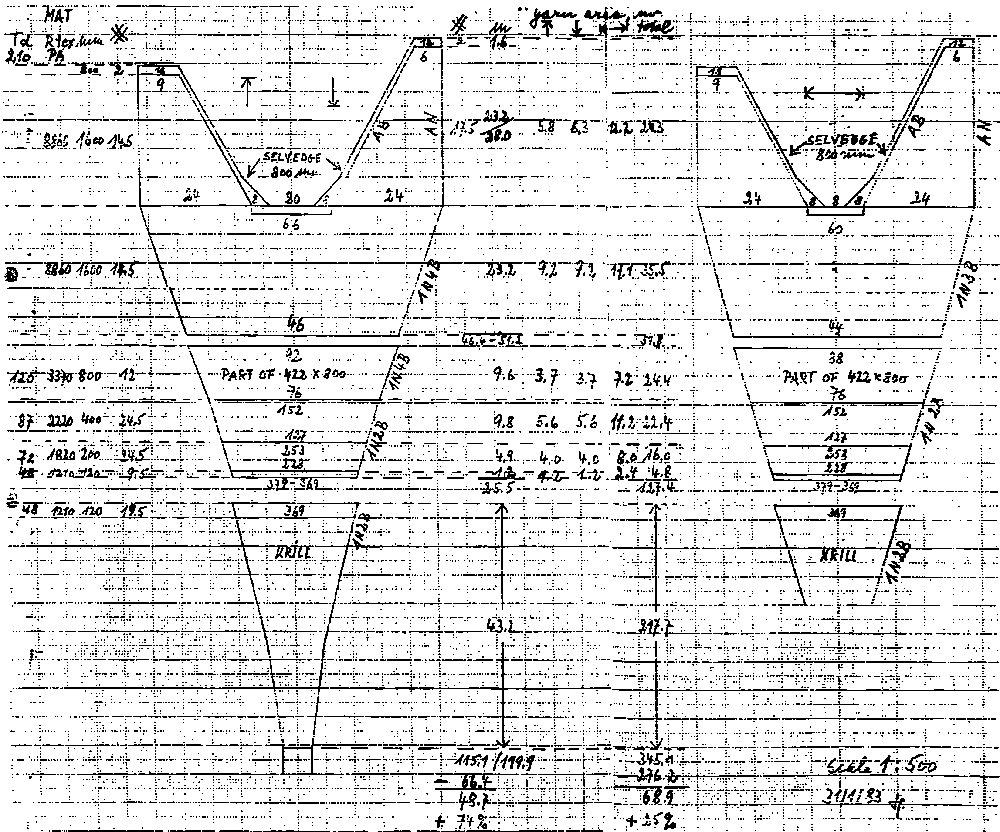

KRILL TRAWL WITH 1600 mm MESHSIZE FRONT PART - 252 × 1600 = 403 m CIRCUMFERENCE (+40%)

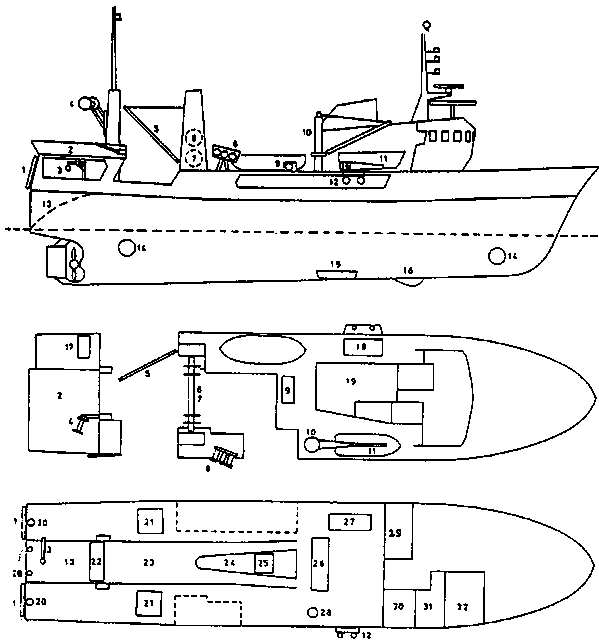

Fig. 1 - Main arrangements of RV DR FRIDTJOF NANSEN
|
1. Otter boards |
17. Paravane winch |
|
2. Seine bin |
18. Hydrographic winch |
|
3. Cable block |
19. Instrument room |
|
4. Seine transport drum |
20. Trawl blocks |
|
5. Bean |
21. Trawl winches |
|
6. Trawl drum |
22. Hatch |
|
7. Trawl drum |
23. Trawl deck |
|
8. Seine winch |
24. Bottom Crawl bin |
|
9. Net sonde winch |
25. Hatch |
|
10. Crane |
26. Trawl winch |
|
11. Basboat |
27. Purse winch |
|
12. Purse gallow |
28. Line hauler |
|
13. Slipway |
29. Hydrography laboratory |
|
14. Side propellers |
30. Biology laboratory (wet) |
|
15. Echo sounder transducers |
31. Biology and chemistry laboratory |
|
16. Sonar transducer |
32. Library |

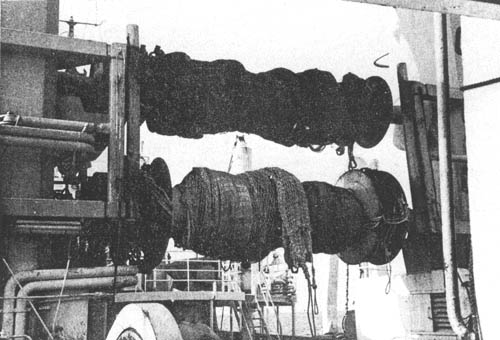

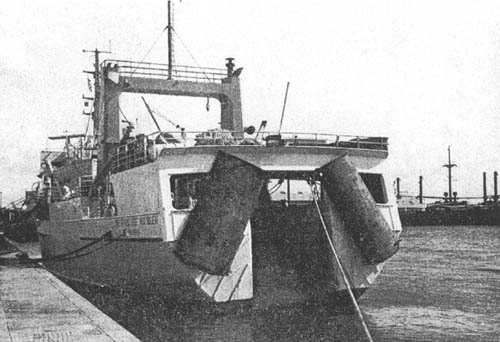

Fig. 3 - The two hydraulically driven net drums

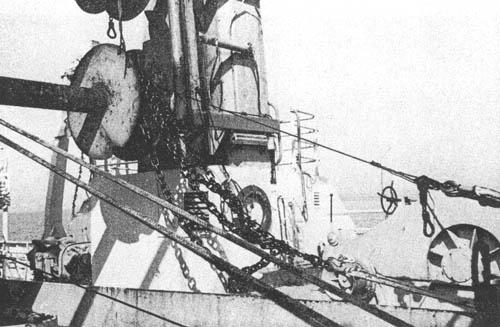

Fig. 4 - The front weights are made up of 6 m long bundles of anchor chain

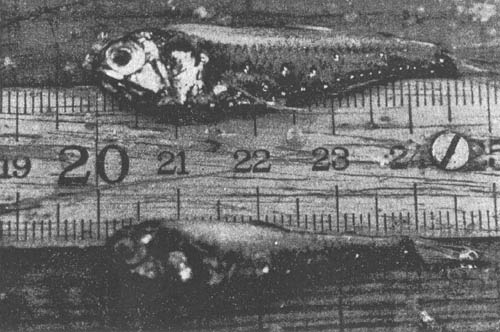

Fig. 5 - Giant specimens of Benthosema pterotum; the average length during the trials was only 35 mm

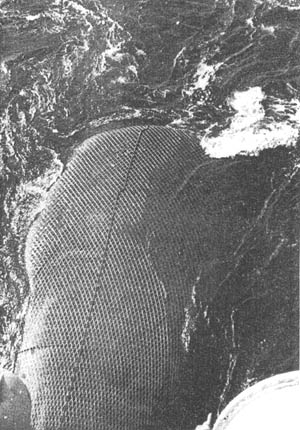

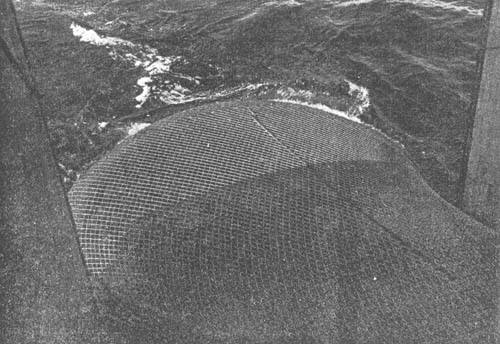

Fig. 6 - View of the front part with 1600 mm meshsize stretched

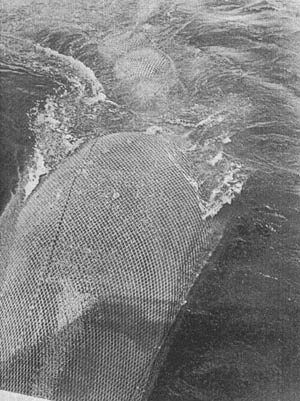

Fig. 7a - Hauling up the catch of tow 33:11 t
Fig. 7b - Hauling up the catch of tow 33:11 t
Fig. 8 - The catch of tow 58: estimated 50 t in half an hour
Fig. 9 - The remaining 13 t of tow 58 on deck

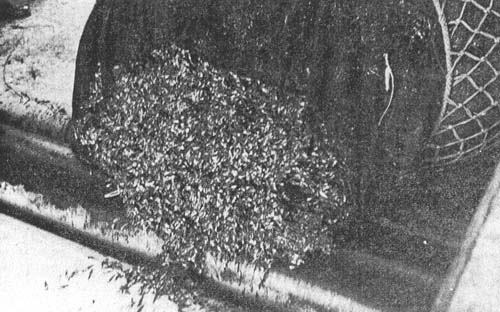

Fig. 10 - Dumping of the catch on
the stern chute
