Figure 1

Figure 1. General view of the River Drwca Vue générale de la rivière Drwca

Figure 2

Figure 2. Diagram of the upstream trap Vue schématique de la nasse amont

Figure 3

Figure 3. Fish tagged Poissons marqués

MACHINE A

Figure 4

MACHINE B

Figure 4

MACHINE C

Figure 4

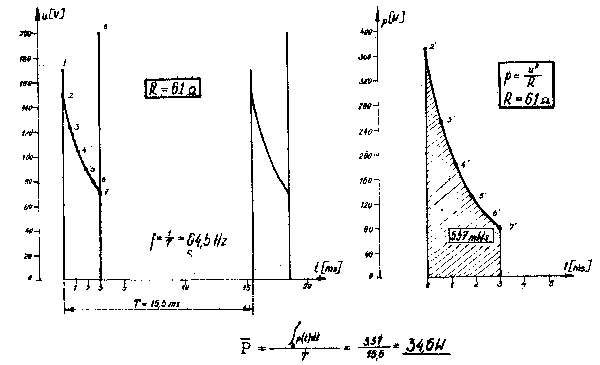

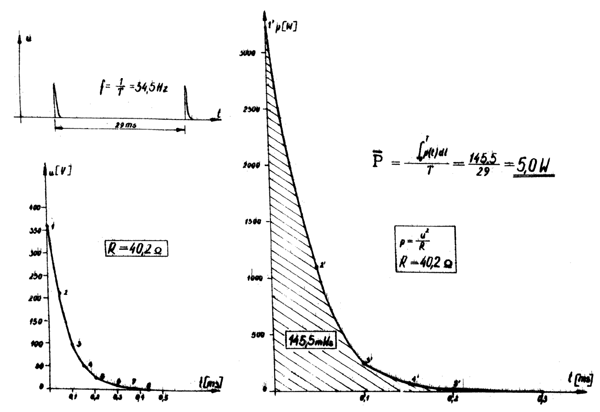

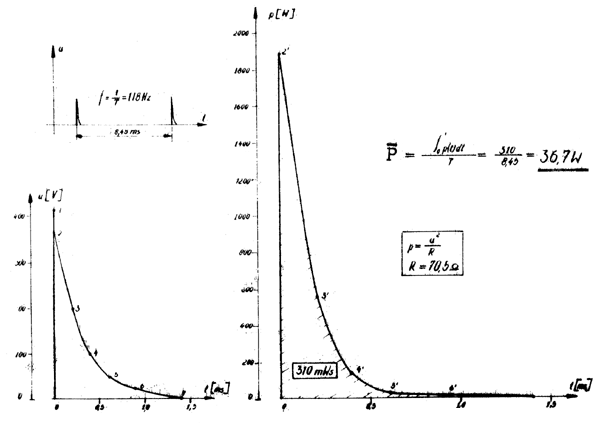

Figure 4. Pulse course U = U(t) and graphical calculation of the mean power for each machine
Décours de l'impulsion U = U(t) et calcul graphique de la puissance moyenne de chaque appareil

MACHINE D

Figure 4

MACHINE E

Figure 4

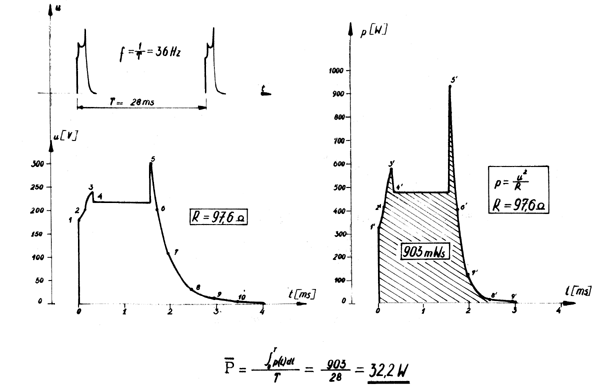

Figure 4 (Continued). Pulse course U = U(t) and graphical calculation of the mean power for each machine
(suite). Décours de l'impulsion U = U(t) et calcul graphique de la puissance moyenne de chaque appareil

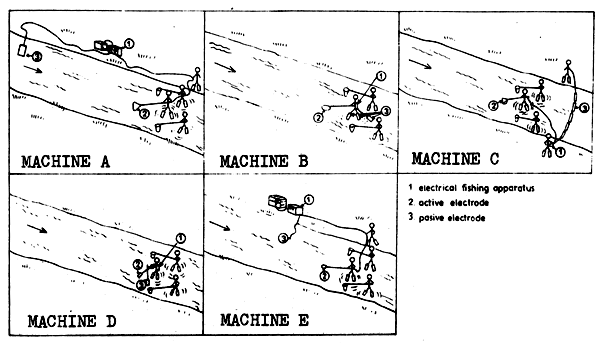

Figure 5

Figure 5. Fishing techniques Techniques de pêche

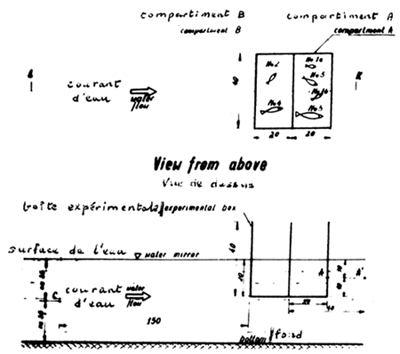

Figure 6
Figure 6
Section along LK/Selon section LK
Dimensions: cm
C - location of cathode's centre localisation du centre de la cathode
A, A' - location of anode's centre localisation du centre de l'anode
Figure 6. Container and putting on the anode
Dispositif de contention et mise en place de l'anode
