| I. Water Chemistry and Soil Analysis Laboratory | ||
| Quantity | Description | Estimated cost (U.S.$) |
| 1 | DO meter (DO + temperature; calibrated for salinity) | 1 200 |
| 1 set | Oxygen in situ recorder | 1 000 |
| 1 set | BOD determination apparatus | 500 |
| 2 | Hach kits: for most water quality parameters with spare reagents | 1 000 |
| 1 | pH meter: photovolt, battery powered for field use, for AC/DC 110/125/220 v; 50/60 Hz | 500 |
| 1 set | Kjeldahl distilling apparatus, complete set | 3 600 |
| 1 | Oven for temperatures up to 150–200°C | 375 |
| 1 | Still, 4 litres/hour, distilled water | 700 |
| 1 | Hood or suction manifold to exhaust fumes | 600 |
| 1 | Salinometer | 2 500 |
| 36 | BOD bottles, 300 ml capacity | 170 |
| 24 | Nessler tubes, graduated at 50 and 100 ml | 120 |
| 1 dozen/size | Desiccators, 220–300 mm diameter; rubber stops, one dozen of each size to fit each flask | 60 |
| 4 | Reagent bottles, 16 oz or 500 ml | 16 |
| 36 | Dropping bottles, 60 ml polyethylene, or glass with pipette | 25 |
| 25 | Pipettes, ungraduated with rubber bulb (eye dropper) | 26 |
| 6 | Evaporating dishes, porcelain, 50 and 100 ml | 19 |
| 12 | Kjeldahl flasks (800 ml) | 350 |
| 12 | Brown bottles, 16 oz or 500 ml, for reagent storage | 20 |
| 500 g | Boiling beads | 3 |
| 1 | Powder funnel 10–15 cm inside diameter | 1.15 |
| 1 | Powder funnel 5–7.5 cm diameter | 3.50 |
| 6 | Bunsen burners (if gas available) | 70 |
| 1 | Magnetic stirrer | 50 |
| 12 | Magnetic stirrer bars (2–3 cm) | 6 |
| 6 | Field thermometers, 0–50°C (4–6) | 120 |
| 2 | Thermometers, 0–200°C | 18 |
| 2 | Sampling devices: bottle train samplers | 160 |
| 2 | Field reagent boxes: (lab) | 20 |
| 1 | Rack for Nessler tubes | 17 |
| 1 box | Weighing paper, for use with analytic balance | 1.50 |
| 1 | Rack for funnels | 50 |
| 1 | Rack for Kjeldahl flasks | 18 |
| 6 | Condensers, 300 mm | 52 |
| 3 boxes | Filter paper, 15 cm Whatman no. 42 | 16 |
| 3 boxes | Filter paper, 15 cm Whatman no. 5 | 18 |
| 1 000 | Labels | 6 |
| 6 | Ring stands for burette support, 60–75 cm high | 45 |
| 3 | Burette clamps, double | 10 |
| 6 | Clamps, single, for general use | 33 |
| 6 | Ring clamps or support rings or tripods, 125 m diameter | 21 |
| 4 | Triangular files; glass cutter | 12 |
| 12 | Stoppers for Kjeldahl flasks | 9 |
| 1 | Cork borer | 11 |
| Sub-total | 13 552.15 | |
| Reagents for specific analyses | ||
| For DO determination | ||
| 24 kg | H2SO4, concentrated, specific gravity 1.84 | |
| 500 g | Sulfamic acid (NH2SO2OH2) | |
| 2 kg | MnSO4 | |
| 5 kg | NaOH | |
| 2 kg | KI | |
| 500 g | K2Cr2O7 | |
| 250 g | Soluble starch powder | |
| 2 litres | Glycerine | |
| 8.1 kg | HCl, concentrated, specific gravity 1.19 | |
| For CO2 | ||
| 10 g | Phenolphthalein indicator | |
| 2 litres | Ethyl or methyl alcohol, purified grade | |
| 1 kg | Na2CO3, or 2 litres, 1-N standard NaOH | |
| Alkalinity | ||
| 10 g | Xylene cyanole indicator | |
| 10 g | Methyl orange indicator | |
| pH | ||
| 1 litre each | pH buffers, pH 5, 7, 9 | |
| Ammonia | ||
| 6 litres | Nessler's reagent or 500 g HgI2 | |
| 500 g | ZnSO4 | |
| 1 kg | Rochelle salt | |
| 100 g | Lead acetate | |
| 500 g | KH2PO4 | |
| 1 kg | K2HPO4 | |
| 500 strips | Litmus paper, red | |
| 500 g | NH4Cl | |
| Hardness | ||
| 10 g | Calmagite (or chrome black T, Eriochrome Black T, or F.24) | |
| 100 g | Hydroxylamine HCl | |
| 250 g | CaCl2 | |
| 500 g | E.D.T.A. (Kersene) = Sodium salt of ethylenediaminetetracetic acid | |
| 100 g | MgCl2 | |
| 1.8 kg | NH4OH, specific gravity 0.90 | |
| Kjeldahl digestion for organic nitrogen | ||
| 2 kg | Na2SO4 or K2SO4 (Anhydrous) | |
| Salinity | ||
| 0.1595 N silver nitrate | ||
| 5 percent potassium chromate indicator or sodium fluorescinate (uranin) | ||
| Volumetric flask | ||
| 125 ml Erlenmeyer flask | ||
| Magnetic stirrer | ||
| Miscellaneous reagents | ||
| 2 kg | Anhydrous CaCl2, granular, 4–8 mesh, technical grade | |
| 1 kg | Soda lime, granular, 4–8 mesh, technical grade | |
| The total estimated cost of these reagents and supplies is | 1 900 | |
| Soil analysis | ||
| 1 | Oven (>100°C) | 250 |
| 1 | Mortar and pestle | 5 |
| 1 | Sieve: 20-mesh screen | 30 |
| 1 | pH meter (with glass electrode) | 475 |
| 1 | Mechanical stirrer | 75 |
| 1 | Oven (at least 80°C) | 125 |
| 1 | Hot plate | 45 |
| Pond mud analysis | ||
| Ammonia nitrogen | ||
| 1N H2SO4 | ||
| K2SO4 | ||
| NaOH | ||
| HCl | ||
| Antifoam: paraffin oil + octyl-alcohol | ||
| Volumetric flask | ||
| Nessler's reagent | ||
| Standard NH4 solution | ||
| Beaker, volumetric flask | ||
| Buchner funnel with numbered filter | ||
| Ammonium acetate: pH 7.00 | ||
| Ammonium hydroxide | ||
| Acetic acid | ||
| HCl | ||
| HNO3 | ||
| Hydrogen peroxide (30 percent analytical grade) | ||
| NaOH solution | ||
| Murexide indicator | ||
| Aqua-Regia | ||
| EDTA | ||
| Devanda's alloy metal: 49.4 percent Cu, 45.5 percent Al, 4.7 percent Zn | ||
| Sodium sulphate - mercuric oxide | ||
| Zinc metal (granulated zinc) | ||
| Buffer pH - 8.00, p-nitrophenol | ||
| Boric acid | ||
| KOH pellets | ||
| KCl | ||
| Estimated total cost of equipment and supplies | 1 925 | |
| Sub-total | 17 377 | |
| II. Fish Nutrition Laboratory | ||
| 1 | Pellet press | 500 |
| 1 | Pelleting machine with 1/8-inch diameter ring | 4 000 |
| 1 | Precision balance (analytical) capacity 160 g | 2 000 |
| 1 | Feed mixer, lab model | 1 500 |
| 1-1 | 1/8-inch and 3/32-inch food grinder plate | 1 970 |
| 1 | Hammer mill: 66 hammers, 15 x 24-inch diameter chamber with 1/8-inch and 3/32-inch grinder plate; screens with 15 hp electric motor | 4 000 |
| 1 | Hobart mixer 12 qt | 1 000 |
| 1 | Grinding head with an 1/8-inch extruding plate | 50 |
| 1 | Spectrophotometer | 2 560 |
| 1 | Bomb colorimeter | 350 |
| 1 | Goldfish fat extractor, di-electric, 6-position | 1 600 |
| 1 | Spectronic 20 colorimeter with line voltage regulator, moisture-proof model | 900 |
| 1 | Stereoscopic microscope | 1 900 |
| 1 | Compound microscope with illumination | 450 |
| 1 | Stage or ocular micrometer, counting chamber, or grid-marked petriplate | 95 |
| 1 | Automatic shaker | 80 |
| 1 | Centrifuge | 325 |
| 1 | Kjeldahl distilling apparatus (digestion and distilling); 12-position | 3 600 |
| 1 | Digestion rack | 37 |
| 1 | Refluxing apparatus | 68 |
| 1 | Rheostat | 56 |
| 1 | Fume hood and blower for penchloric acid digestion | 1 900 |
| 1 | Waring blender | 70 |
| 1 set | Sieves, ASTM standard sizes no. 10 to no. 80 | 175 |
| 1 | Food grinder | 45 |
| 1 set | Fibre filter with six metal screens | 100 |
| 1 | Magnetic stirrer | 75 |
| 1 | Water bath, thermostatic, 26 × 15 × 16 inches | 65 |
| 1 | Hot plate, electric, thermostatic, 12 × 13 inches | 65 |
| 6 | Thermometers | 184 |
| 1 | Micro-distillation apparatus | 20 |
| 2 pairs | Asbestos gloves | 12 |
| 8 | Metal applicators | 3 |
| 8 | Scrapers | 5 |
| 3 | Aspirators, 7-inch | 67 |
| 1 | Titration lamp | 60 |
| 1 | Suction pump (and bottle) | 16 |
| - | Bench clamps | 12 |
| 1 | Fish deboner (separator) | 12 000 |
| 1 | Fish smoking machine | 7 000 |
| 1 | High sensitivity balance | 1 500 |
| 1 | Balance, top loading (2-kg capacity) | 550 |
| 1 | Scales, 200 kg | 650 |
| 1 | Muffle furnace with temperature controls and pyrometer, 5 ½ × 15 × 4 ½ inches | 670 |
| 1 | Oven (>100°C) | 365 |
| 1 set | Column thin chromatography, plates, mounting boards, plus accessories | 27 500 |
| 1 | Refrigerator/freezer | 1 640 |
| 1 | Storage freezer, chest type, 17.2 ft3 | 1 400 |
| 50 | Glass aquaria, capacity 76 litres each, with supports, plumbing, valves, pumps, compressors | 8 000 |
| 20 | Tanks, fibreglass, 210-litre capacity each with standpipe plus supports, plumbing, valves, pumps, compressors | 7 500 |
| 2 | Seines and seining equipment/materials | 675 |
| 1 | Forced air-drying oven, 36 × 60 inches, 45 ft3, electric | 3 900 |
| 1 | Water still, electrically heated, 8 litres/hour capacity | 400 |
| 1 | DO meter + thermometer (calibrated for salinity) | 1 200 |
| 1 | pH meter, AC battery operated crude fibre analyser, 6 positions, laboratory model; two spare electrodes | 550 |
| 12 | Portable aerators: 12 volts, DC/AC | 2 800 |
| 1 | Water pump with pressurized storage tanks to deliver 900 gal/min at 20 ft elevation (3 407 litres/min at 6.09 m) | 3 560 |
| 1 | Air compressor (oil-free) to 165 lb/in2, 20-gallon tank or blower, Sutombilt 5 hp | 575 |
| 2 | Air pumps (Conde type) | 750 |
| 1 | Oxygen tank valve (gauge) | 76 |
| Hardware | ||
| 12 | Wire gauzes, 15 × 15 cm; asbestos centre | 60 |
| 2 | Crucible tongs | 14 |
| Volumetric flasks | ||
| 10 | 1 litre flasks | 80 |
| 10 | 500 ml flasks | 76 |
| 10 | 200–250 ml flasks | 69 |
| Volumetric pipettes | ||
| 3–4 | 5 ml pipettes | 60 |
| 3–4 | 10 ml pipettes | 45 |
| 1–2 | 25 ml pipettes | 16 |
| 1–2 | 50 ml pipettes | 18 |
| 3–4 | 100 ml pipettes | 34 |
| 1–2 | 200 ml pipettes | 16 |
| Graduated pipettes | ||
| 5 | 1 ml, in hundredths of ml | 15 |
| 5 | 2 ml, in tenths of ml | 16 |
| 5 | 5 ml, in tenths of ml | 16 |
| 5 | 10 ml, in tenths of ml | 20 |
| Graduated cylinders | ||
| 2 | 50 ml | 8 |
| 3–4 | 100 ml | 27 |
| 3–4 | 200 ml | 28 |
| 3–4 | 1 000 ml | 56 |
| Burettes | ||
| 2 | 50 ml, in tenths of ml | 70 |
| 2 | 25 ml, in tenths of ml | 65 |
| 1 | 10 ml, in tenths of ml; squeeze bottle, self-zeroing | 115 |
| Beakers | ||
| 5–6 | 100 ml, griffin low form with lip | 22 |
| 5–6 | 250 ml " | 19 |
| 3–4 | 600 ml " | 21 |
| 3–4 | 1 000 ml " | 30 |
| Flasks (Erlenmeyer, narrow-mouth) | ||
| 12 | 125 ml | 50 |
| 24 | 250 ml | 85 |
| 12 | 500 ml | 65 |
| 12 | 1 000 ml | 66 |
| Miscellaneous glassware | ||
| 24 | Funnels, 5–7.5 cm, long stem | 36 |
| 30 m | Rubber tubing, 5–6 mm inside diameter | 54 |
| 10 m | Glass tubing, 5–6 mm diameter | 105 |
| 1 | Storage jar for distilled water; 40–50 litres capacity | 50 |
| 6 | Wash bottles, 500 ml polyethylene | 7 |
| 1 | Desiccator, with stopcock covers, 250 mm inside diameter | 100 |
| 1 | Ashing crucible + lid (dried and tared) | 15 |
| Crucibles (for drying on drying pan) | ||
| Dropper and bottle | ||
| Tared porous crucibles | ||
| Microlitre pipettes | ||
| Curvets | ||
| Micro-rod (made by flaming glass rod and drawing out) | ||
| Mortar and pestle | ||
| Slides (microscope) | ||
| Paraffin oil | ||
| 80 percent acetic acid | ||
| Nitric acid (concentrated) | ||
| Benzene | ||
| Purified benzoic acid | ||
| 0.0725 Na2CO3 | ||
| Standard CaCO3 | ||
| EDTA solution | ||
| Ca indicator - Murexide | ||
| Molybdavanadate | ||
| Ammonium molybdate tetrahydrate | ||
| Ammonium meta-vanadate | ||
| Perchloric acid | ||
| K2H2PO4 | ||
| 9N H2SO4 | ||
| 2 percent 2.4 dinitrophenylhydrazine | ||
| 10 percent metaphosphoric acid | ||
| Bromine | ||
| Thiourea | ||
| Ethyl acetate | ||
| 3 percent acetic acid in methylene chloride | ||
| 2 percent acetic acid in ethyl acetate | ||
| Silica gel | ||
| Methyl chloride | ||
| Nitric acid | ||
| Sel-dahl pack (premixed catalysts) | ||
| H2SO4, concentrated | ||
| NaOH (saturated), pelleted | ||
| Boric acid, 4 percent | ||
| Ethanol, 95 percent | ||
| Standardized 0.1N HCl | ||
| Sodium lauryl sulfate, USP | ||
| Disodium dihydrogen ethylene-diaminetetracetic dihydrate, reagent grade | ||
| Disodium hydrogen phosphate, anhydrous, reagent grade | ||
| 2-ethyl ethanol (ethylene glycol, monoethyl ether), purified grade | ||
| Decahydronaphthalene | ||
| Acetone | ||
| Sodium sulfite | ||
| 1.25 percent H2SO4 | ||
| 1.25 percent NaOH | ||
| Reagent grade ethanol | ||
| Indicators: bromocresol green, methyl red | ||
Antifoam compound (Dow corning antifoam A diluted 1 and 3 with petrol, ether or water) | ||
| Methylene chloride | ||
| Silica gel-G | ||
| Dispersion I, chloral hydrate, glycerine | ||
| Dispersion II | ||
| 15 X, 45° and blue filter for stereoscope | ||
| Dextrin | ||
| Casein (vitamin-free or not) | ||
| Soy protein isolate | ||
| Blood fibrin or protein sources | ||
| Cellulose | ||
| Complete vitamin mixture | ||
| Vegetable oil | ||
| Cod liver oil | ||
| Complete mineral mixture | ||
| Carboxymethyl-cellulose (binder) | ||
Drugs, terramycin, nitrofurazone, potassium permanganate, formalin, malachite green, quinaldine, acriflavine, tetracycline | ||
| Gelatin | ||
| Carboxymethyl-cellulose (CMC) | ||
| Anti-oxidant | ||
| Calcium propionate | ||
| Fertilizer (organic/inorganic) | ||
| Activating material for filters | ||
| Filter paper | ||
Wire baskets (water stability tests of fish feeds), 3 mm2 wire mesh, ca 5 cm square and 1 cm deep | ||
| Foil | ||
| Aluminium foil | ||
| Plastic bags - various sizes | ||
Miscellaneous materials (air stores, tubing, hoses, cleaning equipment, containers, etc.) | ||
| The total cost of those items for which individual prices have not been cited is estimated at | 7 650 | |
| Sub-total | 123 003 | |
| III. Disease Laboratory | ||
| For bacteriological research | ||
| 1 | Microscope + case; compound, phase contrast with triocular head (light/dark field objectives) | 2 800 |
| 1 | Microscope + case; dissecting-cycloptic with camera adapter 10X and 15X oculars | 1 600 |
| 1 | Microtome; plus extra blades, paraffin, etc. | 1 500 |
| 1 | Spectronic - 20 colorimeter | 900 |
| 1 | Magnetic stirring apparatus with rods | 110 |
| 1 | Incubator 30–50°C | 900 |
| 2 | Incubators 0–50°C | 1 700 |
| 1 | Autoclave, portable | 1 500 |
| 1 | Oven, sterilizing | 750 |
| 1 | Hot plate | 45 |
| 1 | Centrifuge, microhematocrit | 525 |
| 1 | Torsion prescription balance | 600 |
| 1 | Triple-beam balance | 80 |
| 1 | Demineralizer for purifying water | 225 |
| 1 | Glass distillation apparatus | 700 |
| 1 | Refrigerator-freezer (17.2 ft2) | 750 |
| 1 | Heating table for slides plus paraffin oven | 500 |
| For viral research | ||
| 1 | Inverted TC microscope | 1 700 |
| 1 | Sterile hood, laminar flow | 2 000 |
| 1 | Vacuum pump | 190 |
| 1 | Cornwall continuous syringe (2.5 ml, 10 ml) | 200 |
| 1 | Filter, large capacity millipore with pressure vessel | 650 |
| 24 | Swinny adapter filters | 560 |
| - | Millipore filters of assorted porosity | 200 |
| For parasites research | ||
| 1 | Camera, Lucida | 130 |
| 1 | Centrifuge, clinical | 400 |
| 1 | Timer | 20 |
| 1 | pH meter (lab/field) | 475 |
| - | Seines, dipnets, etc. for collecting fish | 1 500 |
| 2 | Lamps, gooseneck desk lamps | 65 |
| 1 | Dissecting kit; forceps, scalpels, scissors, droppers, probes, needles, bone shears | 75 |
| 12 each | Dissecting pans, specimen dishes, petri dishes, embryo and culture dishes | 140 |
| 2 | Bunsen burners (touch-o-matic) | 70 |
| 6 | Bacteriological inoculating loops | 49 |
| 5 | Troughs; with running water (210-litre trough) plus supports, plumbing valves, pumps, compressors and valves) | 4 000 |
| 60 | Aquaria; 76 litres each (about 50 with air and water lines) plus supports, plumbing valves, pumps, compressors and valves | 9 600 |
| 1 | Pipette washing apparatus | 125 |
| 6 | Mortars + pestles | 30 |
| - | Disposable syringes (2.5, 5 and 10 ml) | 100 |
| - | Microscope slides, cover slips, labels, slide boxes, etc. | 400 |
| Pipettes (1.5 and 10 ml) | 200 | |
| Bacteriological glassware (tubes, petri dishes) | 400 | |
| Glassware, beakers, flasks, cylinders | 700 | |
| Pipette cans | 70 | |
| Ruber tubing and stoppers of various sizes | 150 | |
Bacteriological media: TSA, BI agar (brain heart infusion) - plates, Pseud-Fagar, Sulphide, Bacto-Furunculosis-Agar - 25°C, Dextrose broth, Ordals media | 200 | |
| Bacteriological stains | 150 | |
| Antibiotics: acriflavine, terramycin | 400 | |
| Reference books, specimens, etc. | 700 | |
| Drawing material (paper, ink, pens and pencils, etc.) | 250 | |
| Potassium permanganate | 200 | |
| Liqui-nox detergent | 40 | |
| Alcohol (ETOH) | ||
| Permount | ||
| Xylene | ||
| Formalin solution | ||
| Bouins (fixing) | ||
| Lugols | ||
| Glycerine jelly | ||
| Stains (Semichon's stain), carmine, hemitoxylin, fast green | ||
| Acetone | ||
| Acids: HCl, H2SO4, glacial acetic, NaOH | ||
| Malachite green | ||
| Dylox | ||
| BHC (Benzene hexochloride): wettable powder | ||
| Chlorotone | ||
| Cytochrome oxiadase test (with “Patho-Tec CO” test paper) | ||
| The total estimated cost of the last 15 items is | 2 500 | |
| Sub-total | 43 824 | |
| IV. Limnology Laboratory | ||
| 1 | Compound microscope, with sub-stage condenser; objectives - 16 mm, 4 mm, oil immersion, and 10 ocular. Mechanical stage (1) | 1 800 |
| 1 | Stage micrometer, 2 mm × 0.1 and 0.01 mm | 32 |
| 1 | Ocular micrometer disc, 5 mm in 0.0 mm | 45 |
| 2 | Counting cells, Sedgwick-Rafter, plankton | 36 |
| 1 | Stereoscopic microscope 10X – 70X | 1 900 |
| 1 | Ocular micrometer disc, whipple | 45 |
| 1 | Thermograph + charts + ink; winding type | 140 |
| 1 | Nephelometer, Coleman model 9 | 1 100 |
| 1 | Plankton centrifuge | 480 |
| 1 | Turbidimeter | 375 |
| 1 | Stop watch | 35 |
| 1 | Kemmerel sampler with messenger | 400 |
| 2 | Van Dorn water samplers with messenger, with transport cylinder for observing stratification of algae (to be operated on a cable) | 320 |
| 1 | Ekman dredge or modern one | 175 |
| 1 | Current meter | 1 000 |
| 1 | Triple beam with weights to 2 000 g capacity, with 0.1 g divisions | 100 |
| 1 | Dial-o-gram, 311 g by 0.01 g | 100 |
| 1 | Analytical balance, sensitive to 0.1 mg | 2 000 |
| 2 | Transits with tripods, plus book with tables | 2 400 |
| 2 | Alidades | 170 |
| 2 | Planetables, to measure areas up to 5 ha | 150 |
| 1 | Steel tape, 50 m in length | 17 |
| 2 | Protractors | 8 |
| 1 | Stadia rod | 85 |
| 1 | Polar planimeter | 75 |
| 1 | Compass | 30 |
| 1 | Hand lens | 4 |
| 2 | Flags: 1 white, 1 red | 20 |
| - | Stakes + nails (numbered) | 8 |
| 14 | Clip boards | 4 |
| - | Dye | 118 |
| - | Materials available for preparing maps, plans, blueprints | 350 |
| 1 | Oven, drying | 500 |
| 1 | Furnace, muffle 1 400°F | 700 |
| 1 | Plankton net with detachable bucket, no. 20 bolting cloth | 130 |
| 1 | Extra bucket for above | 110 |
| 1 | Sieve for screening (30 mesh/inch) | 25 |
| 2 | Secchi disks | 36 |
| 1 | Graduated line for depth measurements | 5 |
| 2 m | Extra bolting cloth no. 20 for replacement; at least 2 m | 60 |
| 15 | Thermometers (max-min; °C or °F) | 285 |
| 2 | Electric resistance thermometers, 15 m | 300 |
| 1 | Hensen-Stemple pipette 1 × 2 ml | 60 |
| 2 | Dessicators | 100 |
| 24 | BOD bottles (including 2 train apparatus) | 100 |
| 2 | File cabinets (for charts, maps, plans, etc.) | 300 |
| 1 | Drafting table | 300 |
| Sub-total | 16 535 | |
| V. Miscellaneous Equipment and Materials | ||
| 2 | Desk calculators | 4 500 |
| 2 | Portable calculators (with adaptor and recharger) | 750 |
| 1 | Photocopier, with supplies; annual lease for use of machine | 7 500 |
| 12 | Pocket thermometers (50°C) | 72 |
| 24 | Portable aerators 110/220 v, 50–60 Hz | 2 400 |
| 8 | Battery operated (DC) aerators | 1 200 |
| 2 | Weighing scales (balances) with weighing rig for large weights (sampling, harvesting) | 1 000 |
| 2 | Smaller weights (feed allowance, individual weights L-W relationships, etc.) | 970 |
| 3 | Boats (variable sizes, from 4–5 m; oars, locks, anchor + lines, tools, spare parts, trailers, life jackets, fuel tanks, truck hitch) | 12 000 |
| 4 | Outboard motors | 7 000 |
| 3 | Fish transporters (tanks, portable) | 2 200 |
| 2 | Winches (hauling large seines) | 2 000 |
| 2 | Seines - 5 m (with 1,6 mm, sq. mesh) | 80 |
| 1 | Seine - 8 m (3.2 mm, sq. mesh) | 115 |
| 1 | " 16 m (12.7 mm, sq. mesh) | 180 |
| 1 | " 32 m (12.7 mm, sq. mesh) | 475 |
| 1 | " 32 m (6.4 mm, sq. mesh) | 510 |
| 1 | " 61 m (25.4 mm, sq. mesh) | 890 |
| 1 | " 61 m (50.8 mm, sq. mesh) | 830 |
| 1 | " 183 m (50.8 mm, sq. mesh) | 1 500 |
| 1 | " 183 m (63.5 mm, sq. mesh) | 1 200 |
| 24 | Hand nets | 288 |
| 1 | Machine bag sealer (seal bag) | 200 |
| 12 | Metersticks | 48 |
| 2 | Smooth tables for processing fish (counting, measuring, weighing) 1.94 × 1.0 × 0.80 m | 665 |
| 50 | Vials (100 IU each) of human chorionic gonatropine hormone (HCGH) | 650 |
Lines, other nets, string, ropes, nylon lines, buckets, tubs, baskets, ice boxes, plastic bags (several sizes) | 4 492 | |
| Rotenone | 1 775 | |
| Quinaldine | 140 | |
| Feeds plus raw ingredients | 9 000 | |
| Fire extinguishers | 400 | |
| Sub-total | 66 830 | |
| VI. Feed Mill | ||
| 8 | Storage bins (outdoor) | 2 500 |
| 1 | Grinder-sifter | 4 400 |
| 1 | Mixer | 3 400 |
| 1 | Pellet mill | 14 000 |
| 1 | Pellet dryer-cooler | 4 800 |
| 1 | Crumbler-sifter | 2 600 |
| 1 | Sifter no. 1 | 2 600 |
| 1 | Sifter no. 2 | 3 600 |
| Sub-total | 37 900 | |
| VII. Vehicles | ||
| 4 | Pick-up trucks - double cabin, 4-wheel drive; traction, winch, etc. | 24 000 |
| 1 | Station wagon, 4-door standard or auto | 8 000 |
| 1 | Minibus, capacity 30 passengers | 20 000 |
| 2 | Jeep-like vehicles, 4-wheel drive and winch | 8 500 |
| Sub-total | 60 500 | |
| VIII. Audiovisual Laboratory | ||
| 1 | Movie projector, Super-8 mm, with sound, accessories, spare bulbs, reels, extensions, spare parts | 650 |
| 1 | Movie projector, 16 mm, with sound, accessories, spare bulbs, reels, extensions, spare parts | 1 870 |
| 2 | Slide projectors, 35 mm, synchronizer sound/recorder, other accessories, slide trays, slide boxes or files | 1 175 |
| 2 | Tape recorders, portable, cassette type, with accessories - charger, adaptor, AC/DC operated (115/220 v); tapes | 500 |
| Dark room equipment, supplies and materials | 3 225 | |
| Editing and splicing equipment and supplies | 725 | |
Filming materials and supplies - movies, slides (Super-8 mm, 16 mm, 35 mm) and still photography; for developing, processing, etc. | 2 000 | |
| Screens (2–3) portable, pointers (2), stickup and bulletin board, stand | 180 | |
| Sub-total | 10 325 | |
| IX. Library | ||
| Shelves: to store books, journals, reprints, etc. | ||
| Cabinet (with shelves): to store maps, charts, blueprints, etc. | ||
| Card files | ||
| Filing cards (size: 76.2 × 127 mm) | ||
| Office supplies | ||
| Display stands and tables | ||
| Desks (3) plus chairs (3) | ||
| Three study and reading tables (4 m2 each) | ||
| Bulletin board | ||
| Chairs (24) | ||
| Typewriter (1) | ||
| Sub-total | 4 579 | |
| X. Classroom | ||
| 1 | Desk for instructor | 175 |
| 1 | Chair (instructor) | 17 |
| 40 | Desks for students and visitors | 2 400 |
| 40 | Chairs | 400 |
| 1 | Podium with microphone and light | 200 |
| 1-1 | Display shelves (stand) and table | 80 |
| 2 | Wall boards | 100 |
| 1 | Wall screen, portable | 29 |
Maps of world, continents, specific areas, regions or countries, with stand or mount on which these may be displayed | 350 | |
| Classroom supplies - erasers, pointer, adhesive board (portable), chalk | 130 | |
| Sub-total | 3 881 | |
| TOTAL | 384 754 | |

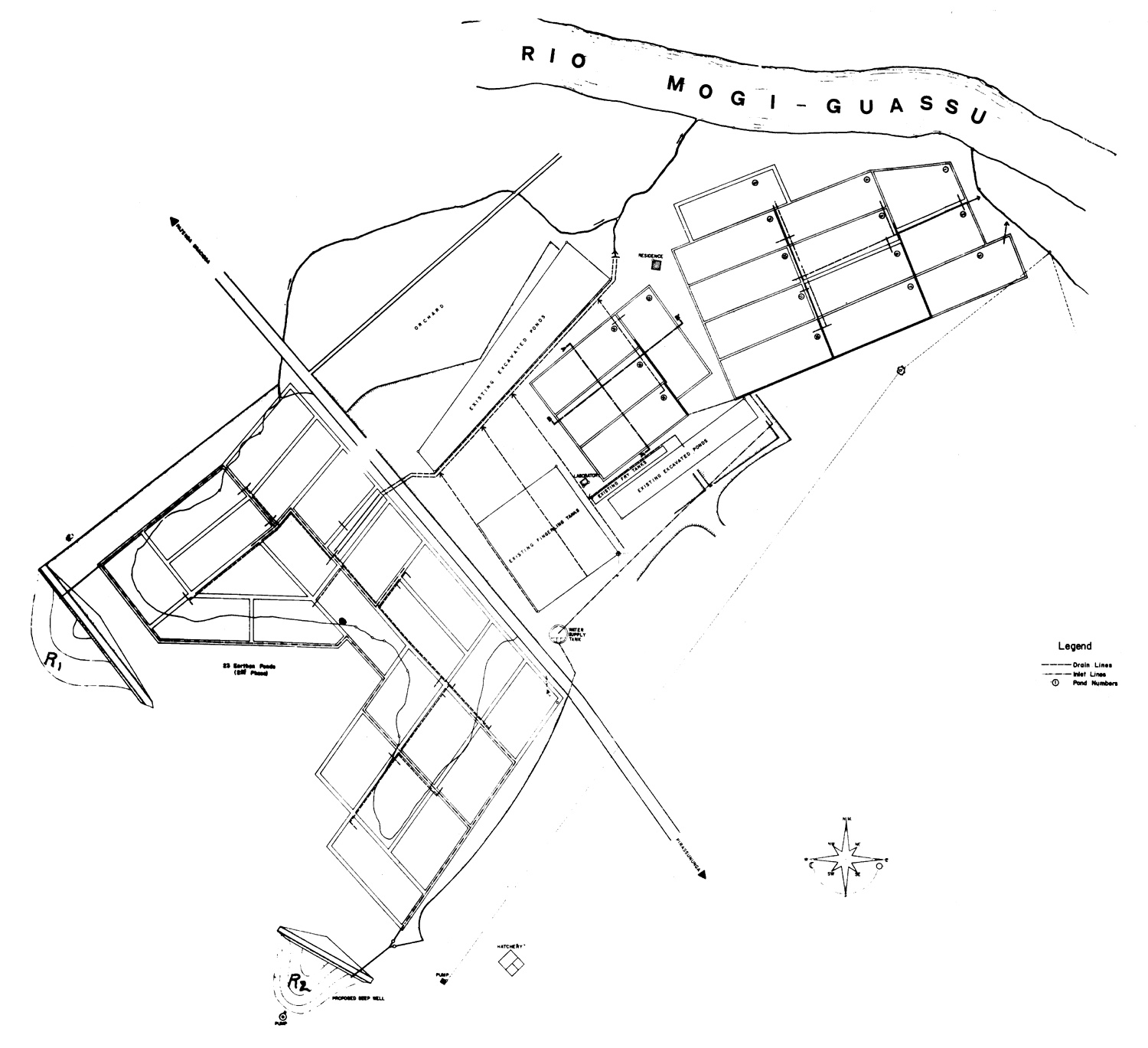

Figure 2 The proposed lay-out of experimental ponds at Pirassununga

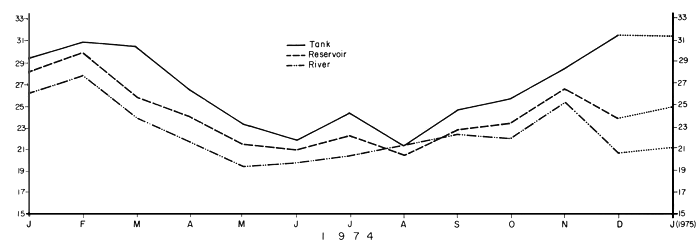

Figure 3 Monthly mean water temperature (°C) in Pirassununga Recorded approx, 12.00 H, Depth - 20 cm

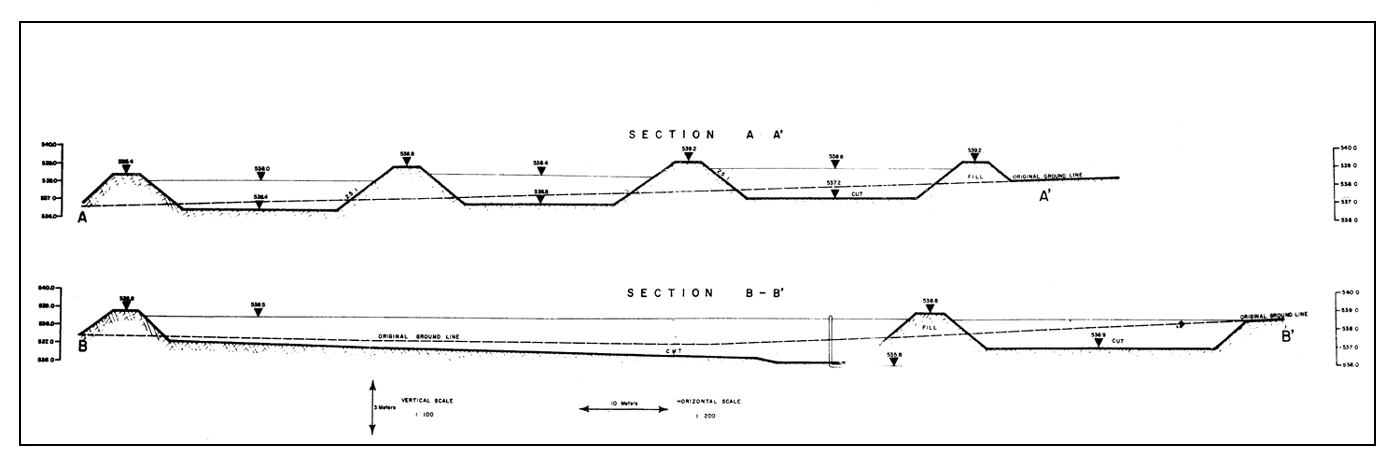

Figure 4 Cross-sections of proposed ponds at Pirassununga (cross-sections a-a', b-b')

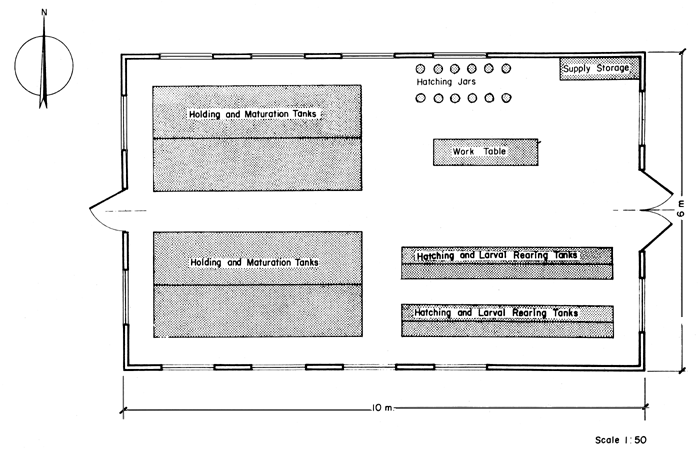

Figure 5 Floor plan of the proposed hatchery in Pirassununga
